XR 80 A - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

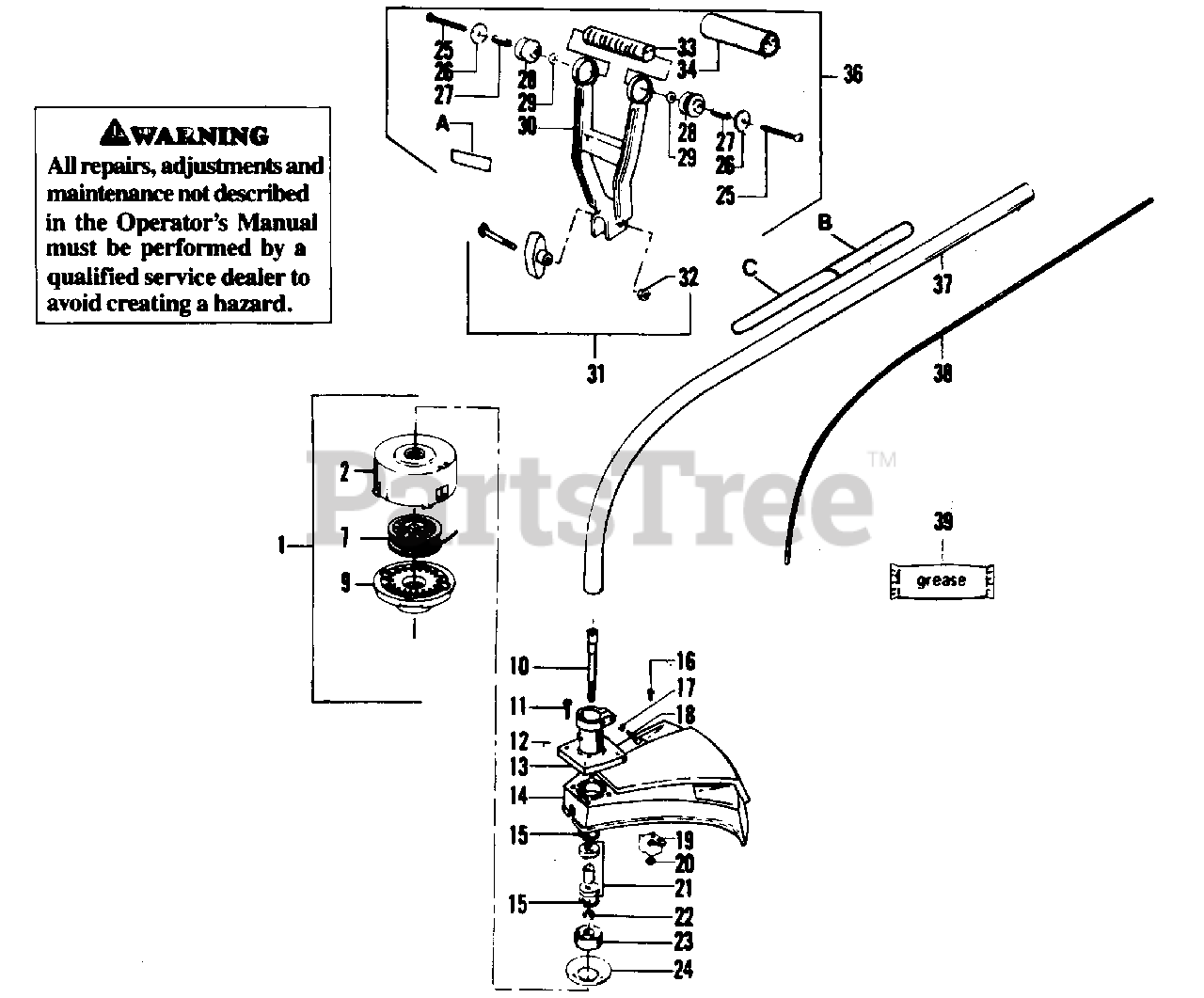

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 952701605

Trimmer Head Ass'y.

Note: (Incl. #2, 7 & 9)

$25.99

$

Usually ships in 3-10 days

0

2

Poulan 530094592

Hub w/Line Saver

$

$

Not available

7

Poulan 952701607

Spool w/Line

$7.99

$

Usually ships in 3-10 days

0

8

Poulan 530093387

Tap Button
(Superseded to 530401183)

$

$

Not available

9

Poulan 530094494

Cover

$

$

Not available

10

Poulan 530093846

Arbor Shaft

$

$

Not available

11

Poulan 530092243

Screw-1/4-10 x 1-1/8"-Shield to Bearing Housing
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

12

Poulan 530015518

Screw-#10-16 x 14"-Self Tapping

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530093214

Bearing Housing Ass'y.

Note: (Incl. #10, 15, 17, 18, 21, 22 & 23)

$

$

Not available

14

Poulan 530094594

Shield Assembly-18"

Note: (Incl. #16, 19 & 20)

$

$

Not available

15

Poulan 530091783

Retainer-Bearing

$

$

Not available

16

Poulan 530015037

Screw-#10-24 x 5/8"-Hex Hd. Line Limiter

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530092227

Washer-1/4" Int. Tooth Lock

$1.49

$

Usually ships in 3-10 days

0

18

Poulan 530625509

Screw-Pinch Clamp-#14-20 x 1"

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 530094570

Line Limiter Assembly

$5.99

$

In Stock, only 2 left!

0

20

Poulan 530015217

Nut-#10-24-Locking
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530069086

Bearings & Spacer Kit

$27.99

$

Usually ships in 3-10 days

0

22

Poulan 530092216

Washer-3/8"-Dust Cup

$

$

Not available

23

Poulan 530092359

Dust Cup

$

$

Not available

24

Poulan 530092218

Grass Washer

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530015561

Screw-Pan Hd.-#12-11 x 2"

$

$

Not available

26

Poulan 530024376

Cup-Isolator

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530025985

Spacer Isolator

$

$

Not available

28

Poulan 530024373

Isolator-Handle

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530015209

Washer-1/4 Flat

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530093859

Handle-Anti-Vibe

$

$

Not available

31

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

32

Poulan 530015197

Nut

$6.49

$

In Stock, only 4 left!

0

33

Poulan 530025986

Center Section-Handle

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530026009

Cushion-Handle Center Section

$

$

Not available

35

Poulan 530015737

Screw-1/4-20 x 1-5/8"

$

$

Not available

36

Poulan 530010642

Handle-Anti-vibe Assembly

Note: (Incl. #25-30, 33 & 34)

$

$

Not available

37

Poulan 530093726

Drive Shaft Housing

$

$

Not available

38

Poulan 530092261

Flexible Drive Shaft

$24.99

$

Usually ships in 3-10 days

0

39

Poulan 530030102

Flex Shaft Lube
(Superseded to 952708514)

$

$

Not available

A

Poulan 530026248

Decal-Anti-Vibe

$

$

Not available

B

Poulan 530027429

Decal-Safety Label (Upper)

$

$

Not available

C

Poulan 530027404

Decal-Safety Label (Lower)

$

$

Not available

Poulan 530067068

Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530061008

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
