XR 75 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

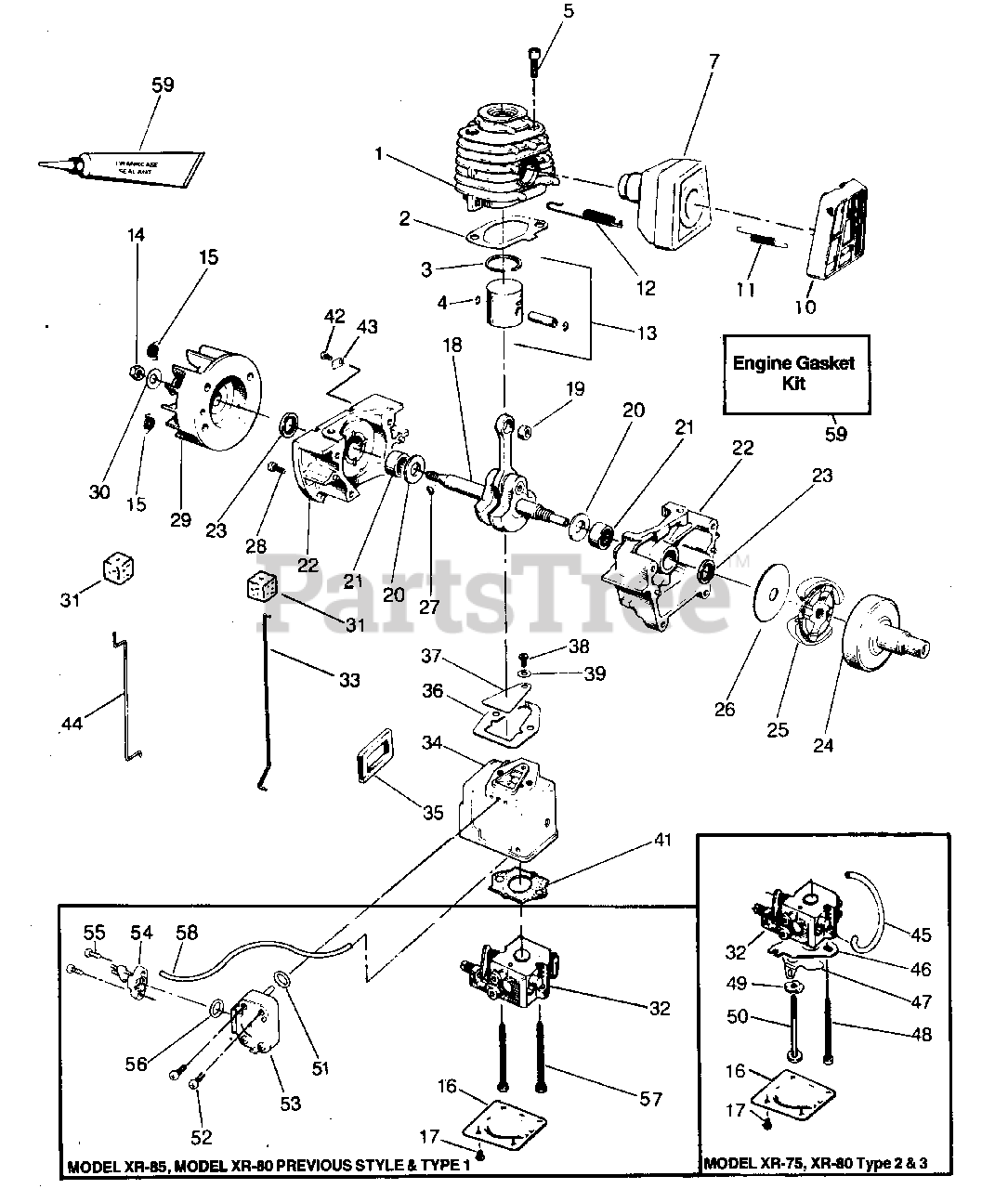

POWER UNIT Parts Diagram

  • Title

1

Cylinder

$

$

Not available

1

Poulan 530012071

Model XR-80,XR-85

$

$

Not available

1

Poulan 530012070

Model XR-75

$

$

Not available

2

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

3

Piston Ring

$

$

Not available

3

Poulan 530024929

Model XR-85, XR-80 Type 1 & 2

$

$

Not available

3

Poulan 530026681

Model XR-80 - Type 3

$

$

Not available

3

Poulan 530024302

Model XR-75

$

$

Not available

4

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530015239

Screw #1/4 - 20 x 3/4" - Hex Soc. Hd. - Cylinder

$2.49

$

Usually ships in 3-10 days

0

7

Muffler Ass'y. - See Service Reference 8.

$

$

Not available

10

Poulan 530024855

Guard - Muffler

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530024932

Spring - Muffler Guard

$

$

Not available

12

Poulan 530024903

Spring - Muffler Attachment
(Superseded to 530036409)

$

$

Not available

13

Piston Kit (Inc. #3, 4 & Pin)

$

$

Not available

13

Poulan 530022238

Model XR-85,XR-80 Previous Style & Type 1 & 2

$

$

Not available

13

Poulan 530069241

Model XR-80 - Type 3

$

$

Not available

13

Poulan 530022198

Model XR-75

$

$

Not available

14

Poulan 530626605

Nut - Flywheel

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530042049

Spring - Starter Dog

$

$

Not available

16

Cover - Carburetor Case

$

$

Not available

16

Poulan 530026029

Model XR-80,XR-85

$

$

Not available

16

Model XR-75 - See Service Ref. 4

$

$

Not available

17

Poulan 530015235

Screw - #8 - 18 x 9/16" - Pan Hd Carburetor Case Cover

$

$

Not available

18

Crankshaft & Rod Ass'y.

$

$

Not available

18

Poulan 530022202

Model XR-75,XR-85, XR-80 Previous Style & Type 1, 2

$

$

Not available

18

Poulan 530010844

Model XR-80 - Type 3 Only

$

$

Not available

19

Bearing - Wrist Pin

$

$

Not available

19

Poulan 530032057

Model XR-75,XR-85, XR-80 Previous Style & Type 1, 2

$

$

Not available

19

Poulan 530032092

Model XR-80 - Type 3 Only

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 530015351

Washer - Thrust - Crankcase

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530032029

Bearing - Crankshaft

$10.99

$

In Stock, only 2 left!

0

22

Poulan 530010757

Crankcase Ass'y. (Inc. #21, 23 & Qty. 1 of #28)

$

$

Not available

23

Poulan 530019059

Seal - Crankcase

Note: Included in Engine Gasket Kit.

$

$

Not available

24

Poulan 530010797

Drum & Coupling Assembly

$

$

Not available

25

Poulan 530069194

Kit - Clutch Assembly (Inc. Clutch Washer) - See Service Ref. 1 & 7

$21.99

$

Usually ships in 3-10 days

0

26

Poulan 530069196

Kit - Clutch Washer

$

$

Not available

27

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015369

Screw - #10 - 24 x 5/8" Fil. Hd. - Crankcase

$

$

Not available

29

Poulan 530039114

Flywheel Assembly (Inc. #15)

$

$

Not available

30

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530023373

Boot - Throttle/Choke Wire

Note: Included in Engine Gasket Kit.

$

$

Not available

31

Model XR-85, XR-80 Previous Style & Type 1

$

$

Not available

31

Model XR-75, XR-80 Type 2 & 3

$

$

Not available

32

Poulan 530035183

Carburetor (See Service Ref. 2 - for Model XR-75 only)

$

$

Not available

33

Throttle Wire

$

$

Not available

33

Poulan 530024902

Model XR-75, XR-80 Type 2 & 3

$

$

Not available

33

Poulan 530026177

Model XR-85, XR-80 - Previous Style & Type 1

$

$

Not available

34

Carburetor Case

$

$

Not available

34

Poulan 530026046

Model XR-85, XR-80 Previous Style & Type 1

$

$

Not available

34

Poulan 530024409

Model XR-75, Model XR-80 - Type 2 & 3

$

$

Not available

35

Poulan 530019105

Seal - Carburetor Case

Note: Included in Engine Gasket Kit.

$

$

Not available

36

Poulan 530019108

Gasket - Carburetor Case to Crankcase

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530024438

Reed Valve

$

$

Not available

38

Poulan 530015241

Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530023367

Washer - Reed Valve Screw

$

$

Not available

41

Poulan 530019115

Gasket - Carburetor

Note: Included in Engine Gasket Kit.

$

$

Not available

42

Poulan 530015004

Screw - #8 - 32 x 5/16" - Choke Wire Clamp

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530024651

Clamp - Choke Wire

$

$

Not available

44

Choke Wire -

$

$

Not available

44

XR-75, See Service Ref. 4

$

$

Not available

44

Poulan 530026236

Model XR-80 - Type 2 & 3

$2.49

$

Usually ships in 3-10 days

0

45

Fuel Line - Carburetor

$

$

Not available

45

Poulan 530021043

Model XR-75, XR-80 - Type 2

$

$

Not available

45

Poulan 530069238

Model XR-80 - Type 3

$

$

Not available

46

Guide - Plate Choke Wire

$

$

Not available

46

Model XR-75 - See Service Ref. 4

$

$

Not available

46

Poulan 530026237

Model XR-80 - Type 2 & 3

$

$

Not available

47

Poulan 530024558

Shutter - Choke

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530015379

Screw - #10 - 24 x 1-7/8" - Carburetor

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530015254

Washer - Wave

$3.99

$

In Stock, only 2 left!

0

50

Poulan 530015404

Screw - #10 - 24 x 2-1/8" - Carburetor Shoulder

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 530019131

O-Ring (Orifice)

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 530015565

Screw - #8 - 18 x 1" - Accumulator

$

$

Not available

53

Poulan 530010651

Accumulator Assembly (Inc. #51 & 54)

$

$

Not available

54

Poulan 530010677

Cap Assembly - Accumulator (Inc. #56)

$

$

Not available

55

Poulan 530015235

Screw - #8 - 16 x 9/16"

$

$

Not available

56

Poulan 530019128

O-Ring (Accumulator Chamber)

$

$

Not available

57

Poulan 530015566

Screw - #10 - 24 x 2-1/4" - Fil. Hd. - Carburetor

$1.49

$

Usually ships in 3-10 days

0

58

Poulan 530021055

Fuel Line - Carburetor

$2.49

$

Usually ships in 3-10 days

0

59

Poulan 530069219

Engine Gasket Kit

$

$

Not available
