XR 50 A - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

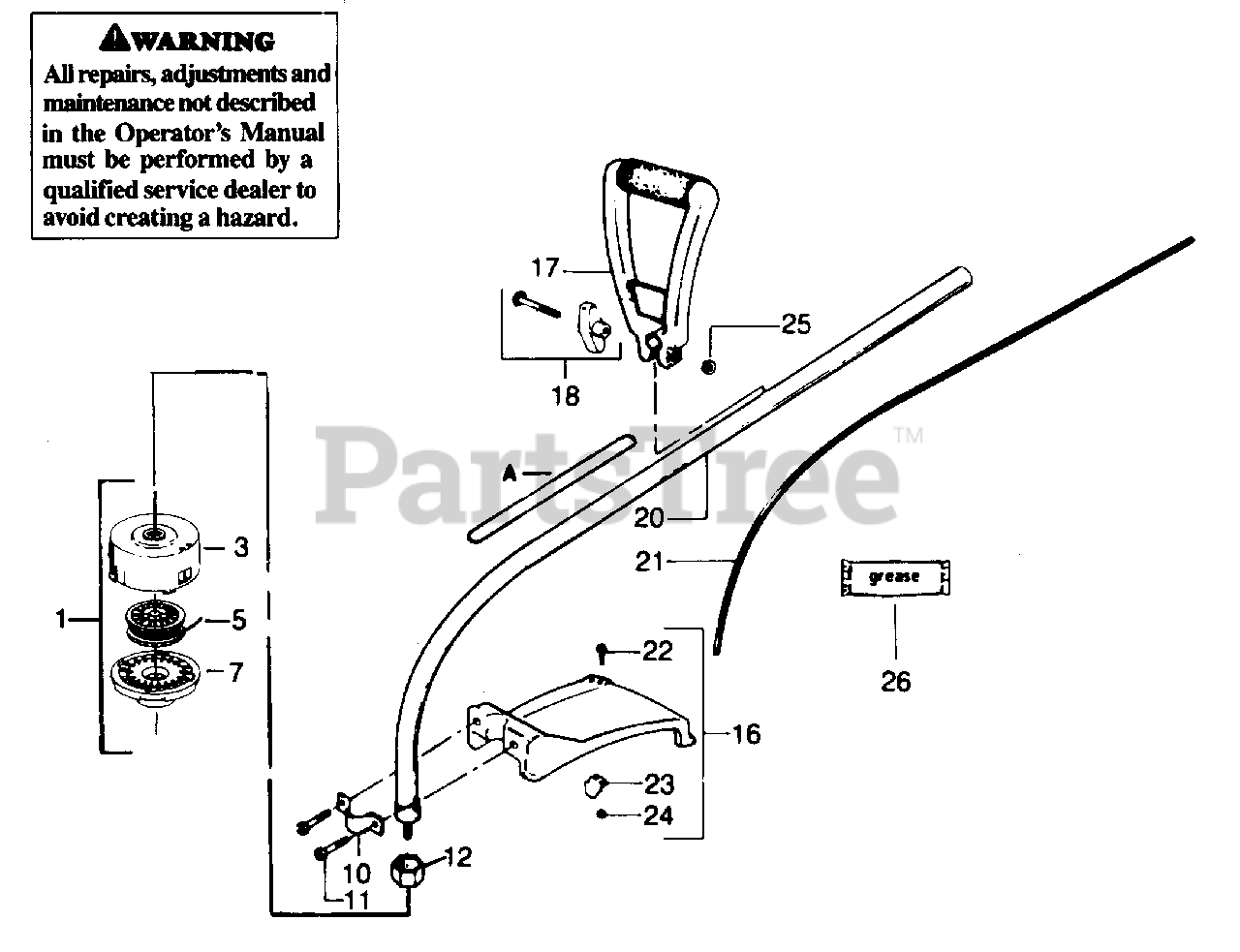

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 952701605

Cutting Head Assembly

$25.99

$

Usually ships in 3-10 days

0

3

Poulan 530094592

Hub-Ass'y.

$

$

Not available

5

Poulan 952701607

Spool w/Line

$7.99

$

Usually ships in 3-10 days

0

7

Poulan 530094494

Cover

$

$

Not available

10

Poulan 530093653

Bracket-Shield

$3.99

$

In Stock, only 1 left!

0

11

Poulan 530092243

Screw-Shield (1/4-10x1-1/8")
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

12

Poulan 530093716

Dust Cup

$

$

Not available

16

Poulan 530069249

Shield Kit Assembly (Inc.11,22,23,24)

$

$

Not available

17

Poulan 530010618

Assist Handle
(Superseded to 530069496)

$

$

Not available

18

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

19

Poulan 530092062

Washer-1/4-Flat

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530094439

Drive Shaft Assembly
(Superseded to 530071643)

$

$

Not available

21

Poulan 530093936

Flex Shaft Assembly

$

$

Not available

22

Poulan 530015337

Screw-Line Limiter

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

24

Poulan 530015217

Nut-Line Limiter
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

26

Poulan 530030102

Shaft Lubrication
(Superseded to 952708514)

$

$

Not available

A

Poulan 530027430

Decal-Safety Label
(Superseded to 530029159)

$

$

Not available

Poulan 530067067

Operator's Manual

$

$

Not available
