XR 125 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

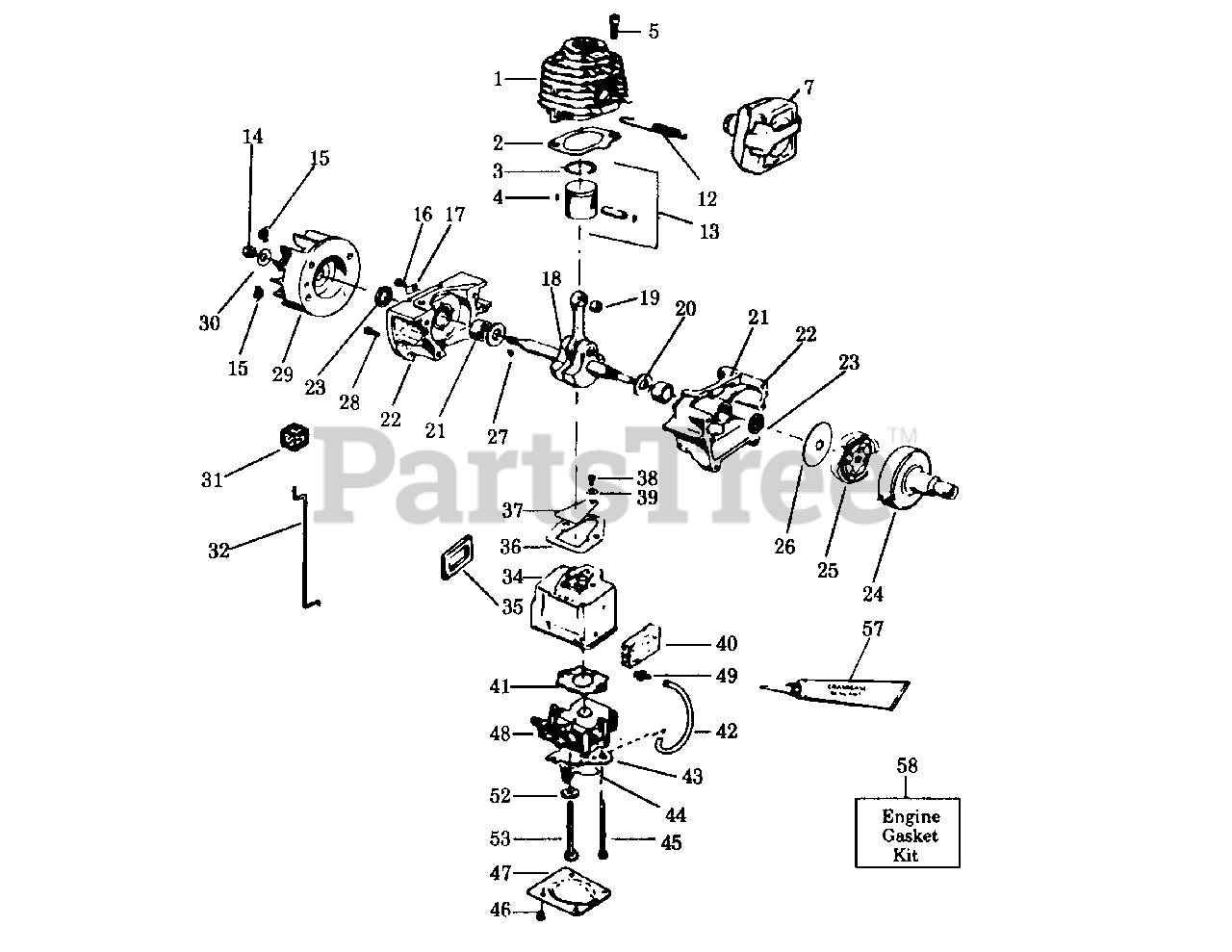

POWER UNIT Parts Diagram

  • Title

1

Poulan 530012168

Cylinder
(Superseded to 530012349)

$

$

Not available

2

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

$

$

Not available

3

Poulan 530026413

Piston Ring

$

$

Not available

4

Poulan 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Muffler Ass'y, XR-105-See Service Ref. 1

$

$

Not available

7

Poulan 530069244

XR-125

$

$

Not available

12

Poulan 530026621

Muffler Attachment Spring

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530010843

Piston Kit (Inc. #3,4 & Pin)

$

$

Not available

14

Poulan 530626605

Flywheel Nut

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530042059

Starter Dog Spring
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

16

Poulan 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530024651

Choke Wire Clamp

$

$

Not available

18

Poulan 530010849

Crankshaft & Bearing Ass'y.

$

$

Not available

19

Poulan 530032057

Wrist Pin Bearing

$

$

Not available

20

Poulan 530015351

Washer

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

22

Poulan 530010757

Crankcase Ass'y. (Inc.21,23 & Qty. 1 of #26)

$

$

Not available

23

Poulan 530019059

Crankcase Seal

$

$

Not available

24

Poulan 530010803

Model XR-105

$25.99

$

Usually ships in 3-10 days

0

24

Poulan 530010902

Model XR-125

$

$

Not available

25

Poulan 530069195

Clutch Kit Ass'y.

$

$

Not available

26

Poulan 530069196

Clutch Washer Kit

$

$

Not available

27

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015369

Screw

$

$

Not available

29

Poulan 530039114

Flywheel Ass'y.

$

$

Not available

30

Poulan 530015127

Washer

$6.49

$

In Stock, only 1 left!

0

31

Poulan 530023373

Choke Wire Boot

$

$

Not available

32

Poulan 530026236

Choke Wire

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 530010884

Carburetor Hsg.

$12.99

$

Usually ships in 3-10 days

0

35

Poulan 530019105

Carburetor Case Seal

$

$

Not available

36

Poulan 530019108

Gasket

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530024438

Reed Valve

$

$

Not available

38

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530023367

Washer

$

$

Not available

40

Poulan 530019135

Carb. Case Seal

$

$

Not available

41

Poulan 530019157

Carburetor Gasket

$

$

Not available

42

Poulan 530069238

Line Kit

$

$

Not available

43

Poulan 530026237

Choke Wire Guide Plate

$

$

Not available

44

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530015379

Screw

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530015235

Screw

$

$

Not available

47

Poulan 530026029

Carb. Case Cover

$

$

Not available

48

Poulan 530035190

Carburetor-WA-149

$

$

Not available

49

Poulan 530025472

XR-105-T 1

$3.49

$

Usually ships in 3-10 days

0

49

Poulan 530026981

XR-105-T 2 & XR-125-T 1

$6.49

$

In Stock, Qty 7

0

52

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

53

Poulan 530015404

Screw

$3.99

$

Usually ships in 3-10 days

0

57

Poulan 530030054

Crankcase Sealant

$

$

Not available

58

Poulan 530069219

Engine Gasket Kit

$

$

Not available
