XR 125 - Weed Eater String Trimmer CARBURETOR Parts Diagram

String Trimmer

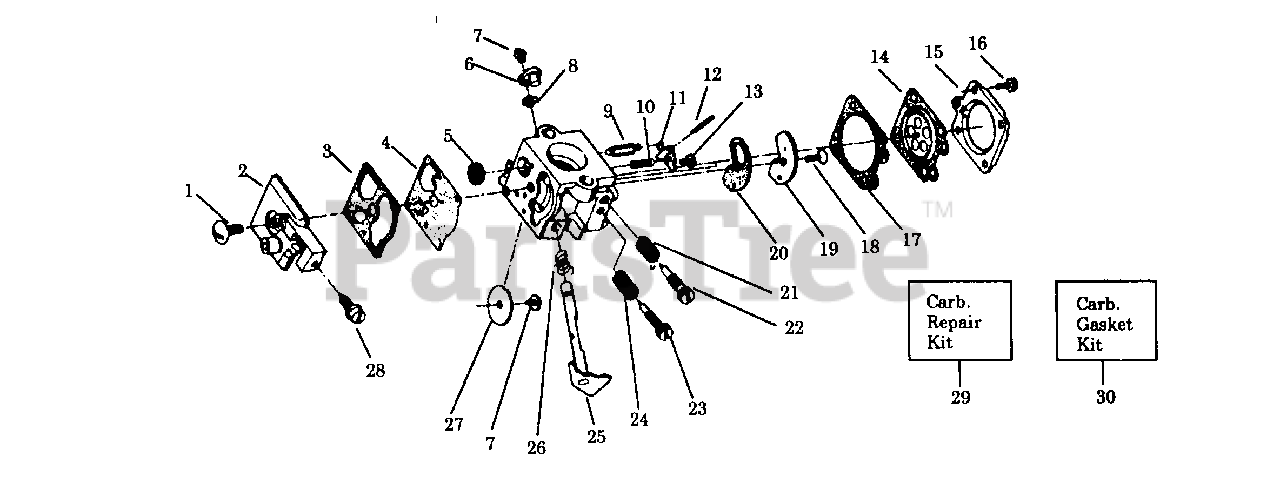

CARBURETOR Parts Diagram

  • Title

1

Poulan 530035017

Pump Cover Screw

$0.99

$

Usually ships in 3-10 days

0

2

Poulan 530035191

Pump Cover Ass'y. (Inc. #28)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

4

Poulan 530035166

Diaphragm Pump
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

5

Poulan 530035178

Inlet Screen

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530035193

Swivel Lever Ass'y.

$

$

Not available

7

Poulan 530035015

Throttle Valve Screw

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

8

Poulan 530035007

Throttle Shaft Clip

$

$

Not available

9

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

Note: Included in Carburetor Kwik Repair Kit.

$22.99

$

In Stock, Qty 8

0

10

Poulan 530035139

Metering Lever Spring
(Superseded to 530035188)

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 10

0

11

Poulan 530035031

Metering Lever
(Superseded to 505520127)

Note: Included in Carburetor Kwik Repair Kit.

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$7.99

$

In Stock, only 3 left!

0

13

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

14

Poulan 530035014

Diaphragm Ass'y. Metering
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

15

Poulan 530035149

Metering Diaphragm Cover

$

$

Not available

16

Poulan 530035153

Metering Cover & Throttle Shaft Clip Screw

$

$

Not available

17

Poulan 530035151

Metering Diaphragm Gasket

$3.99

$

In Stock, Qty 8

0

18

Poulan 530035137

Circuit Plate Screw

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

19

Poulan 530035042

Circuit Plate

$

$

Not available

20

Poulan 530035147

Circuit Plate Gasket
(Superseded to 501781301)

$

$

Not available

21

Poulan 530035036

Hi Speed Needle Spring

$

$

Not available

22

Poulan 530035142

Hi Speed Needle
(Superseded to 501782201)

$

$

Not available

23

Poulan 530035141

Idle Needle

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 530035023

Idle Needle Spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 530035192

Throttle Shaft Ass'y.

$

$

Not available

26

Poulan 530035138

Throttle Return Spring

$

$

Not available

27

Poulan 530035133

Throttle Valve

$

$

Not available

28

Poulan 530035156

Idle Adjustment Screw

$1.99

$

Usually ships in 3-10 days

0

29

Poulan 530035185

Kwik Repair Kit

$36.99

$

In Stock, only 2 left!

0

30

Poulan 530035186

Gasket/Diaphragm Kit
(Superseded to 530069844)

$20.99

$

In Stock, only 3 left!

0
