XP8000 (0057081) - Generac Portable Generator (SN: 5849347 - 5850800) (2010) (Lowe's) EV Engine 410-P (0H3593) Parts Diagram

Portable Generator

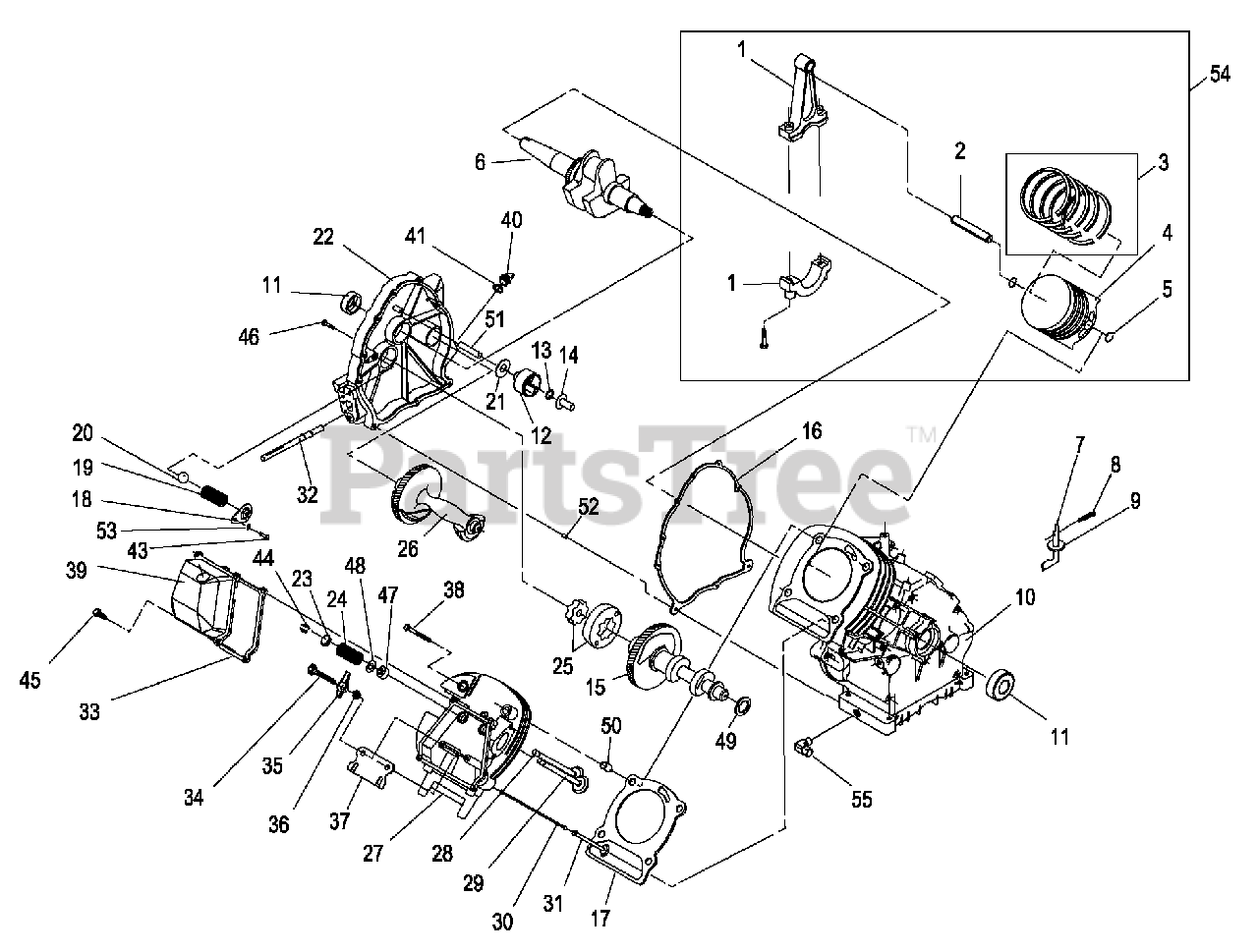

EV Engine 410-P (0H3593) Parts Diagram

  • Title

1

Generac 0E3221

ASSEMBLY, CONNECTING ROD

$20.99

$

In Stock, only 1 left!

0

2

Generac 0E1466

PIN, PISTON D20

$6.49

$

In Stock, Qty 5

0

3

Generac 0G2565

RING SET, PISTON DIA90

Note: ORDER P/N 0G25650SRV

$

$

Currently unavailable

4

Generac 0G2751

PISTON, FLAT TOP DIA90 COATED

$

$

Not available

5

Generac 71983

RETAINE R, PISTON PIN 20

$

$

Not available

6

Generac 0E8440

ASSEMBLY, CRANKSHAFT GH4 10 SMALLTAPER
(Superseded to 0G41940SRV)

Note: ORDER 0E35050SRV

$118.99

$

In Stock, only 1 left!

0

7

Generac 0A7628

ARM, G OVERNO RRC4 5

$7.99

$

In Stock, only 1 left!

0

8

Generac 0H9038

PIN COTTER "R" .05 9 X 1 /4 X 1 -1 /8

$0.99

$

Usually ships in 2-12 days

0

9

Generac 78659

WASHER, GOVERNOR ARM THRUST

$

$

Not available

10

Generac 0H0165C

CRANKCASE, SUBASSEMBLY WITH PLUGS GH4 10

$336.99

$

Usually ships in 2-12 days

0

11

Generac 0E3812

SEAL, 3 5 I.D. CRANKSHAFT

$11.99

$

In Stock, Qty 5

0

12

Generac 0E6519

ASSEMBLY, GOVERNOR GEAR
(Superseded to 0E65190SRV)

Note: ORDER 0E65190SRV

$

$

Not available

13

Generac 78645

C-RING, GOVERNOR GEAR RETAINER

$

$

Not available

14

Generac 0A7811

SPOOL, GOVERNOR- MACHINE

$16.99

$

In Stock, only 2 left!

0

15

Generac 0A9877

ASSEMBLY, CAMSHAFT & GEAR
(Superseded to 0A98770SRV)

Note: ORDER 0A98770SRV

$231.99

$

Usually ships in 2-12 days

0

16

Generac 76701

GASKET , CRANKCASE

$

$

Not available

17

Generac 021713B

GASKET, HEAD 410

$6.49

$

Usually ships in 2-12 days

0

18

Generac 78691

COVER, OIL PRESSURE RELIEF

$

$

Not available

19

Generac 0A5771

SPRING, OIL RELIEF 360

$3.49

$

Usually ships in 2-12 days

0

20

Generac 0A5776

BALL, DIA 11 /32 PRESSURE RELIEF

$1.49

$

Usually ships in 2-12 days

0

21

Generac 76361

WASHER, THRUST GOVERNORGEAR

$

$

Not available

22

0G4233A

ASSEMBLY, COVER, GEAR TOP CHECK / FILL

$

$

Not available

23

Generac 0D2274

RETAINE R, VALVE SPRING

$1.99

$

In Stock, only 2 left!

0

24

Generac 0C4391

VALVE SPRINGLF

$2.49

$

In Stock, only 1 left!

0

25

Generac 86025

SET,GEROTOR 12 THK

$

$

Not available

26

Generac 0E3341

BALANCER

$57.99

$

Usually ships in 2-12 days

0

27

Generac 0G6791

ASSEMBLY,CYLINDER HEAD SEATS & GUIDES
(Superseded to 0G6791A)

Note: ORDER 0G6791A

$127.99

$

Usually ships in 2-12 days

0

28

Generac 86516

VALVE , EXHAUST

$

$

Not available

29

Generac 86517

VALVE , INTAKE

$

$

Not available

30

Generac 0D9853B

PUSH ROD 1 74 .9

$9.99

$

Usually ships in 2-12 days

0

31

Generac 83897

TAPPET

$

$

Not available

32

Generac 77158

ASSEMBLY, SCREEN OIL PICK-UP

$

$

Not available

33

Generac 0C3150

GASKET, ROCKER COVER 410
(Superseded to 0C3150A)

Note: ORDER 0C3150A

$19.99

$

In Stock, only 1 left!

0

34

Generac 72694

STUD, D20 PIVOT BALL

$

$

Not available

35

Generac 83907

ROCKER ARM

$

$

Not available

36

Generac 0D3998

NUT, JAM (ROCKER ARM)

$2.99

$

In Stock, only 2 left!

0

37

Generac 78694

PLATE, PUSH ROD GUIDE

$

$

Not available

38

Generac 21742

SCREW, HHFL M10- 1.5 X 105

$

$

Not available

39

Generac 0D6094

ASSEMBLY, ROCKER COVER BREATHER OHVI

$26.99

$

Usually ships in 2-12 days

0

40

Generac 076329A

PLUG, OIL FILL PLASTIC, ORANGE

$1.99

$

Usually ships in 2-12 days

0

41

Generac 0E0057

O-RING 1 7 .8 I.D. x 2 .4

$1.49

$

In Stock, only 3 left!

0

42

Generac 45770

SCREW HHC M5 – 0 .8 X 10 C8 .8

$

$

Not available

43

Generac 86515

KEEPER, V ALVE SPRING

$

$

Not available

44

Generac 0G0919

SCREW HHFCS M6 -1 X 12

$0.99

$

Usually ships in 2-12 days

0

45

Generac 0A1442

SCREW, HHFC M8 -1.2 5 X 4 2

$2.49

$

Usually ships in 2-12 days

0

46

Generac 78672

SEAL, VALVE S TEM D7

$

$

Not available

47

Generac 89673

WASHER, VALV E SPRING

$

$

Not available

48

Generac 0B2104

WASHER, LARGE SPRING

$1.49

$

Usually ships in 2-12 days

0

49

Generac 078699C

SLEEVE , DOWEL PIN 14 DIA.

$1.99

$

Usually ships in 2-12 days

0

50

Generac 0A7627

SHAFT, GOV ERNOR RC5 5

$2.99

$

In Stock, only 1 left!

0

51

Generac 078699B

SLEEVE , DOWEL PIN 12 DIA.

$1.99

$

Usually ships in 2-12 days

0

52

Generac 0G5792

WASHER LOCK M5 RIBBE D

$0.99

$

Usually ships in 2-12 days

0

53

Generac 0D9241H

ASSY PISTON P IN/CONNECTING ROD HC GH4 10
(Superseded to 0E35050SRV)

Note: ORDER 0G41940SRV

$157.99

$

Usually ships in 2-12 days

0

54

Generac 0H1007

DRAIN FITTING ASS Y-XP PORTABLE

$12.99

$

Usually ships in 2-12 days

0
