XP4000 (0057130) - Generac Portable Generator (SN: 5491019 - 5777880) (2010) GH-220 Engine (0H2154) Parts Diagram

Portable Generator

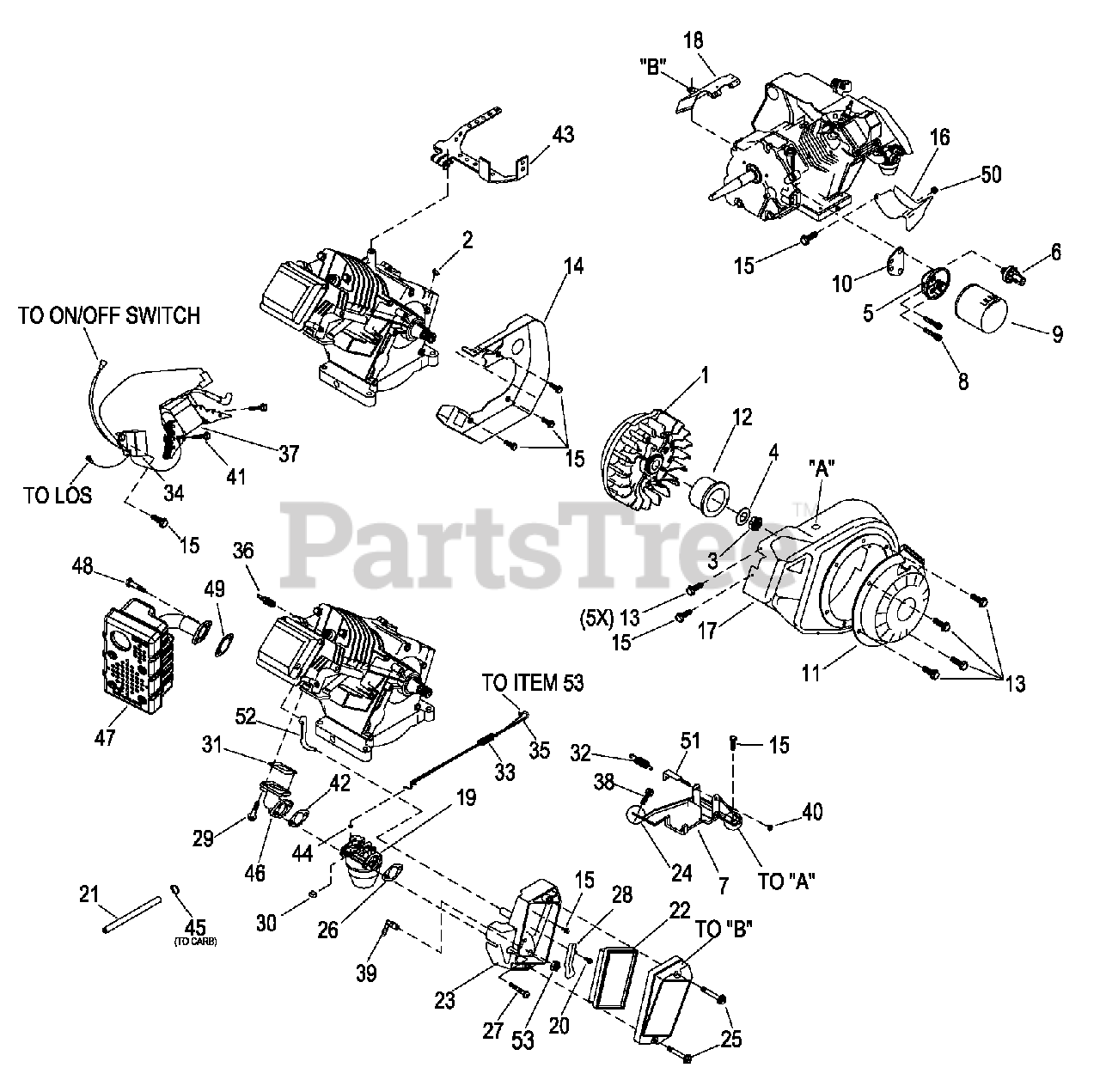

GH-220 Engine (0H2154) Parts Diagram

  • Title

1

Generac 0C8917A

ASSY, FLYWHEEL 29 DEGREE

Note: ORDER 0C8917ASRV FLYWHEEL MAGNETIZED

$

$

Currently unavailable

2

Generac 082774

KEY, WOODRUFF 4 X 19 DIAMETER
(Superseded to G082774)

$9.49

$

In Stock, only 2 left!

0

3

Generac 081810

NUT, HEX M16-1.5 G8
(Superseded to G081810)

$1.99

$

Usually ships in 2-12 days

0

4

Generac 083312

WASHER, M16 CONICAL

$

$

Not available

5

Generac 0D8778

ADAPTOR, OIL FILTER GH220

$10.99

$

Usually ships in 2-12 days

0

6

Generac 0H1315

OIL PRESSURE SWITCH 5PSI

$

$

Not available

7

Generac 0C2489

ASSY, BRACKET GOVERNOR ADJUSTMENT

$8.99

$

Usually ships in 2-12 days

0

8

Generac 040945

SCREW, SHC M6-1.0 x 20
(Superseded to G040945)

$1.49

$

In Stock, only 1 left!

0

9

Generac 070185B

OIL FILTER BLACK 75mm LONG
(Superseded to 070185BS)

Note: ORDER P/N 070185BS

$59.99

$

In Stock, only 2 left!

0

10

Generac 091848

GASKET, OIL PSI

$

$

Not available

11

Generac 0A2799

ASSEMBLY, RECOIL STARTER
(Superseded to 095268ASRV)

Note: NO LONGER AVAILABLE MUST ORDER 095268ASRV COMPLETE ASSEMBLY KIT

$49.99

$

In Stock, only 1 left!

0

12

Generac 0A2842

CUP, RECOIL

Note: IF REPLACING RECOIL AND CUP ORDER 095268ASRV

$7.49

$

Usually ships in 2-12 days

0

13

Generac 0C1069

SCREW, HHTT M6-1.0 x 8

Note: USE 0E5139 ON MODELS 4858-0, 4629-2, 4806-0 4857-0, 4861-0, 4862-0

$0.99

$

Usually ships in 2-12 days

0

14

Generac 0C8798B

BACKPLATE, WITH KNOCKOUT GH220

$

$

Not available

15

Generac 045756

SCREW, HHTT M6-1.0 x 10
(Superseded to G045756)

$0.99

$

In Stock, Qty 20+

0

16

Generac 089739

WRAPPER, LOWER GH220

$

$

Not available

17

Generac 090695D

BLOWER HOUSING GH220

$36.99

$

Usually ships in 2-12 days

0

18

Generac 092984

ASSEMBLY, TOP WRAPPER GH220

$

$

Not available

19

Generac 0C1535A

CARB, GH220 WITH CHOKE LEVER
(Superseded to 0C1535ASRV)

Note: ORDER 0C1535ASRV

$159.99

$

Usually ships in 2-12 days

0

20

Generac 0C2267

SCREW, HHTT M5 – 0.8 X 12 BP

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0F9176K

HOSE, 1/4" SAE30R11 GREENBAR 14"

$

$

Currently unavailable

22

Generac 078601

ELEMENT, AIR CLEANER
(Superseded to G078601)

$21.99

$

In Stock, only 3 left!

0

23

078607A

BASE, AIR CLEANER W-EVAP

$

$

Not available

24

Generac 078608B

COVER, AIR CLEANER

$58.99

$

In Stock, only 1 left!

0

25

Generac 078609

SCREW, HHSFC M6-1.0 x 31
(Superseded to G078609)

$0.99

$

Usually ships in 2-12 days

0

26

Generac 078631

GASKET, CARB / MANIFOLD W/O ADHESIVE
(Superseded to G078631)

$4.99

$

Usually ships in 2-12 days

0

27

Generac 078643

BOLT, CARBURETOR MOUNTING
(Superseded to G078643)

$1.99

$

Usually ships in 2-12 days

0

28

Generac 080303

COVER, BREATHER CANAL
(Superseded to G080303)

$1.49

$

Usually ships in 2-12 days

0

29

Generac 080316

SCREW, HHFC M6-1.0 x 30

$

$

Not available

30

Generac 083504

KNOB, CHOKE LEVER
(Superseded to G083504)

$1.49

$

Usually ships in 2-12 days

0

31

Generac 090051

GASKET, MANIFOLD / HEAD
(Superseded to G090051)

$17.99

$

In Stock, Qty 9

0

32

Generac 091638A

SPRING, GOVERNOR (BLUE COLOR)

$2.49

$

In Stock, only 2 left!

0

33

Generac 0C3979

SPRING, ANTI-LASH

$46.99

$

Usually ships in 2-12 days

0

34

Generac 087221F

ASSY, LOS MODULE NO LED

$24.99

$

Usually ships in 2-12 days

0

35

Generac 0D7458

ROD, GOVERNOR GH220

$

$

Not available

36

Generac 0E7585

SPARK PLUG GAP: 0.030"

$3.99

$

In Stock, Qty 20+

0

37

Generac 0G3231

ASSY, IGNITION COIL ADVANCED NO DIODE

$92.99

$

Usually ships in 2-12 days

0

38

Generac 083512

SCREW, HHTT M8-1.2 x 16

$

$

Not available

39

Generac 0H1660

BARBED EL 90 1/8NPT X 1/4 NY

$2.49

$

Usually ships in 2-12 days

0

40

Generac 082025

NUT, HEX LOCK M5-0.5 NYLON INSERT
(Superseded to G082025)

$0.99

$

In Stock, Qty 5

0

41

Generac 0G3111

SCREW, HHTT M6 – 1.0 X 25 ZINC

$6.49

$

Usually ships in 2-12 days

0

42

Generac 091846

GASKET, CARBURETOR / AIRBOX
(Superseded to G091846)

$13.99

$

Usually ships in 2-12 days

0

43

Generac 086962

ASSEMBLY, GOVERNOR LEVER
(Superseded to G086962)

$9.99

$

Usually ships in 2-12 days

0

44

Generac 085953

WASHER, NYLON 0.12ID x 0.28OD
(Superseded to G085953)

$14.99

$

Usually ships in 2-12 days

0

45

Generac 040173

CLAMP, HOSE #5.5

Note: FOR GUARIDAN RV AND HSB USE 0G3662

$

$

Not available

46

Generac 090948

INTAKE MANIFOLD
(Superseded to G090948)

$17.99

$

In Stock, only 1 left!

0

47

Generac 0E5222A

MUFFLER, GH220 SIDE-OUT

$

$

Not available

48

Generac 0G3730

SCREW, SHC M8-1.25 x 20 SEMS

$1.49

$

In Stock, only 4 left!

0

49

Generac 089476

GASKET, EXHAUST
(Superseded to G089476)

$20.99

$

Usually ships in 2-12 days

0

50

Generac 022717B

GROMMET, 9/16" x 1/16" X 7/16"

$2.49

$

Usually ships in 2-12 days

0

51

Generac 0C2467

SCREW, GOVERNOR ADJUSTMENT

$1.99

$

Usually ships in 2-12 days

0

52

Generac 090947A

HOSE, BREATHER GH220

$8.99

$

In Stock, only 3 left!

0

53

0H3813

NUT HEX 1/8-27 NPS THIN

$

$

Not available
