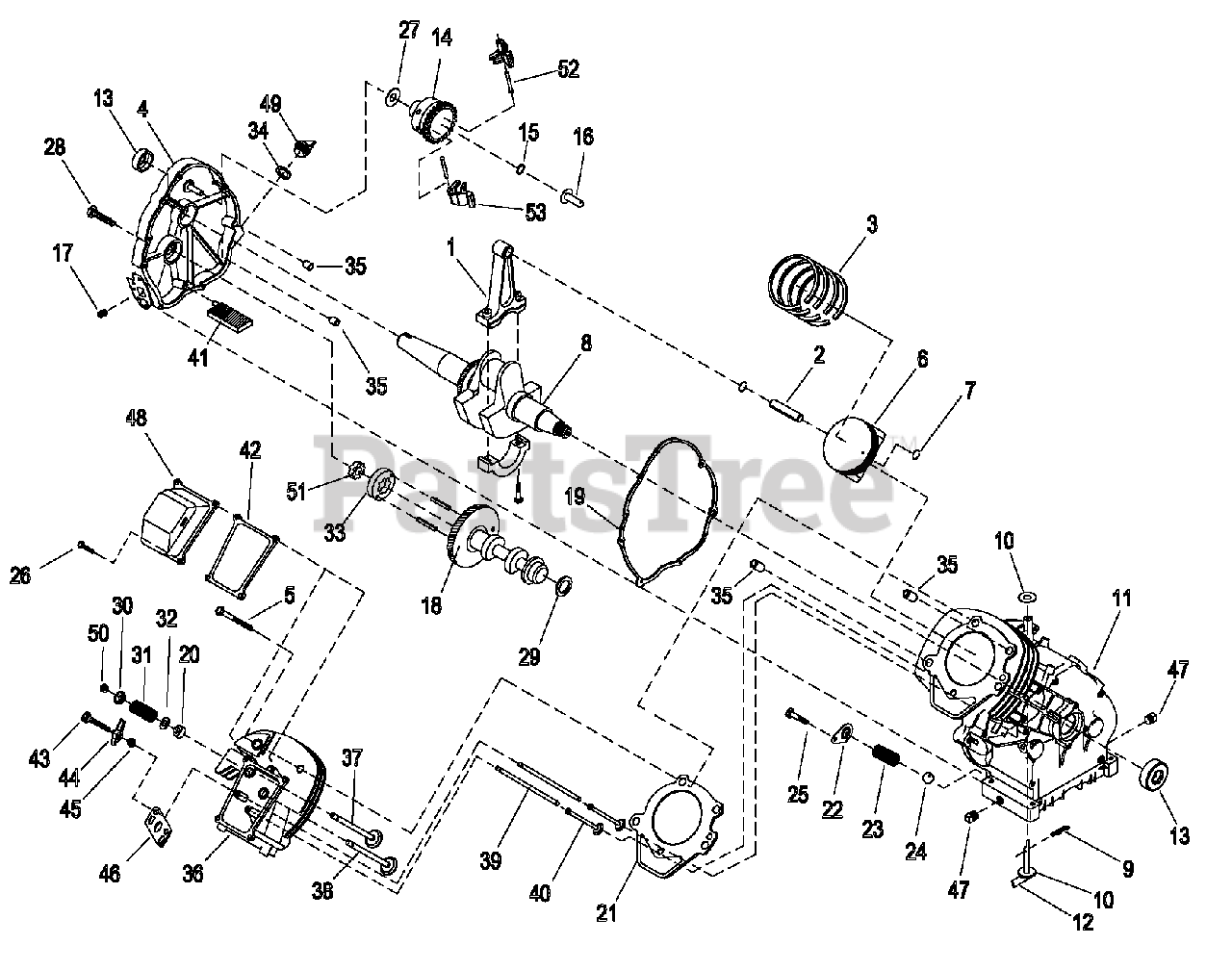

XP4000 (0056040) - Generac Portable Generator (SN: 5320799 - 6318875) (2011) No Assembly Title Parts Diagram

Portable Generator

No Assembly Title Parts Diagram

  • Title

1

Generac 078621

ASSY, CONNECTING ROD
(Superseded to G078621)

$17.99

$

In Stock, only 1 left!

0

2

Generac 076389

PIN, PISTON

$

$

Not available

3

Generac 0G4379

RING SET, 75 DIAMETER

Note: ORDER PART 0G43790SRV

$

$

Currently unavailable

4

Generac 0A8897B

ASSY, GEAR COVER
(Superseded to 0A8897BSRV)

Note: ORDER 0A8897BSRV

$88.99

$

Usually ships in 2-12 days

0

5

Generac 077168

SCREW, HHC M8-1.25 X 56
(Superseded to G077168)

$14.99

$

In Stock, Qty 5

0

6

Generac 0G4331

PISTON, COATED 75 DIAMETER

$48.99

$

In Stock, only 1 left!

0

7

Generac 076390

RETAINER, PISTON PIN

$

$

Not available

8

Generac 0G5827

ASSEMBLY, CRANKSHAFT

Note: ORDER 0G48660SRV

$

$

Currently unavailable

9

Generac 078658

PIN, "R"GOVERNOR ARM

$

$

Not available

10

Generac 0F0967

WASHER, FLAT 1/4", 0.15 THICK

$0.99

$

Usually ships in 2-12 days

0

11

Generac 0A1199A

CRANKCASE GH220 HS

$

$

Not available

12

Generac 0A7637

ARM, GOVERNOR

$6.49

$

Usually ships in 2-12 days

0

13

Generac 0E3811

SEAL, 28mm DIA x 41.47 VITON

$

$

Not available

14

Generac 0C2356

ASSY, GOVERNOR GEAR

$1.49

$

Usually ships in 2-12 days

0

15

Generac 078645

C-RING, GOVERNOR GEAR RETAINING
(Superseded to G078645)

$4.49

$

Usually ships in 2-12 days

0

16

Generac 0A7811

SPOOL, GOVERNOR MACHINED

$16.99

$

In Stock, only 2 left!

0

17

Generac 072683A

PLUG, 1/8" NPTF PIPE

$3.49

$

Usually ships in 2-12 days

0

18

Generac 0A9878

ASSY, CAMSHAFT 220 W/ COMP. RELEASE
(Superseded to 0A98780SRV)

Note: ORDER 0A98780SRV - NOTE: FOR MODEL 004791-0 ORDER 0F06870SRV

$98.99

$

Usually ships in 2-12 days

0

19

Generac 089096

GASKET, CRANKCASE
(Superseded to G089096)

$14.99

$

In Stock, only 1 left!

0

20

Generac 088156

SEAL, VALVE STEM
(Superseded to G088156)

$4.49

$

In Stock, Qty 5

0

21

Generac 0A8822

GASKET, CYLINDER HEAD GH220

Note: IF HEAD GASKET FAILURE IS SUSPECTED, ALSO REPLACE THE CARB JET WITH 0D4761 ON MODEL 00941-1 BEFORE SERIAL # 3504610

$5.99

$

Usually ships in 2-12 days

0

22

Generac 078691

COVER, OIL PRESSURE RELIEF

$

$

Not available

23

Generac 0A5772

SPRING, OIL PRESSURE RELIEF GH220

$5.99

$

Usually ships in 2-12 days

0

24

Generac 0A5776

BALL, 11/32" DIAMETER PRESSURE RELIEF

$1.49

$

Usually ships in 2-12 days

0

25

Generac 074908

SCREW, HHTT M5-0.8 X 10
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

26

Generac 078606

SCREW, M6-1.0 x 12 W/LOCK WASHER
(Superseded to G078606)

$10.99

$

Usually ships in 2-12 days

0

27

Generac 076361

WASHER, THRUST GOVERNOR GEAR
(Superseded to G076361)

$8.99

$

Usually ships in 2-12 days

0

28

Generac 0D2414

SCREW, HHFC M8-1.25 x 35

$0.99

$

Usually ships in 2-12 days

0

29

Generac 099922

WASHER, SPRING

$

$

Not available

30

Generac 0C3733

RETAINER, VALVE

$1.49

$

Usually ships in 2-12 days

0

31

Generac 0C4390

SPRING, VALVE

$2.49

$

Usually ships in 2-12 days

0

32

Generac 084186

WASHER, VALVE SPRING WEAR
(Superseded to G084186)

$0.99

$

In Stock, Qty 10

0

33

Generac 083153

GEROTOR, OUTER

$

$

Not available

34

Generac 0E0057

O-RING, 11/16-7-8" 75 DUROMETER VITON

$1.49

$

In Stock, only 3 left!

0

35

Generac 078699B

SLEEVE, DOWEL PIN 12mm DIAMETER

$1.99

$

Usually ships in 2-12 days

0

36

Generac 021705B

ASSEMBLY, HEAD GUIDES & SEATS 220

Note: ORDER 021706BSRV IF YOU WANT THE COMPLETE HEAD ASSEMBLY

$144.99

$

Usually ships in 2-12 days

0

37

Generac 0C3590

VALVE, EXHAUST

$15.99

$

Usually ships in 2-12 days

0

38

Generac 0C3591

VALVE, INTAKE

$16.99

$

In Stock, only 1 left!

0

39

Generac 0D9853A

PUSHROD, 145.76 LENGTH GH220

$10.99

$

Usually ships in 2-12 days

0

40

Generac 083235

TAPPET, 7.5mm DIAMETER
(Superseded to G083235)

$22.99

$

Usually ships in 2-12 days

0

41

Generac 080336

ASSEMBLY, OIL PICK UP GH220
(Superseded to G080336)

$3.99

$

Usually ships in 2-12 days

0

42

Generac 0C8754

GASKET, VALVE COVER

$29.99

$

Usually ships in 2-12 days

0

43

Generac 077161

STUD, ROCKER ARM PIVOT
(Superseded to G077161)

$2.49

$

Usually ships in 2-12 days

0

44

Generac 077160

ARM, ROCKER GH220
(Superseded to G077160)

$12.99

$

Usually ships in 2-12 days

0

45

Generac 076307

NUT, JAM M-6 – 0.75 FINE THD
(Superseded to G076307)

$0.99

$

Usually ships in 2-12 days

0

46

Generac 088403

PLATE, PUSHROD GUIDE

$

$

Not available

47

Generac 072657A

PLUG, 1/4" NPTF PIPE

$1.99

$

Usually ships in 2-12 days

0

48

Generac 088412F

ASSEMBLY, VALVE COVER STEEL

$46.99

$

Usually ships in 2-12 days

0

49

Generac 076329

PLUG, OIL FILL PLASTIC
(Superseded to G076329)

Note: ORDER 0763290SRV---- CAP AND O-RING.

$2.49

$

In Stock, only 1 left!

0

50

Generac 0C3592

KEEPER, VALVE SPRING

$0.99

$

Usually ships in 2-12 days

0

51

Generac 083152

GEROTOR, INNER

$

$

Not available

52

Generac 076364

PIN, GOVERNOR FLYWEIGHT RETAINER

$

$

Not available

53

Generac 0C4603

FLYWEIGHT, GOVERNOR

$1.49

$

Usually ships in 2-12 days

0
