XP1000 (0059320) - Generac Portable Generator (SN: 6971388 - 7114979) (2012) EV Generator 530 Portable XP (0J3246) Parts Diagram

Portable Generator

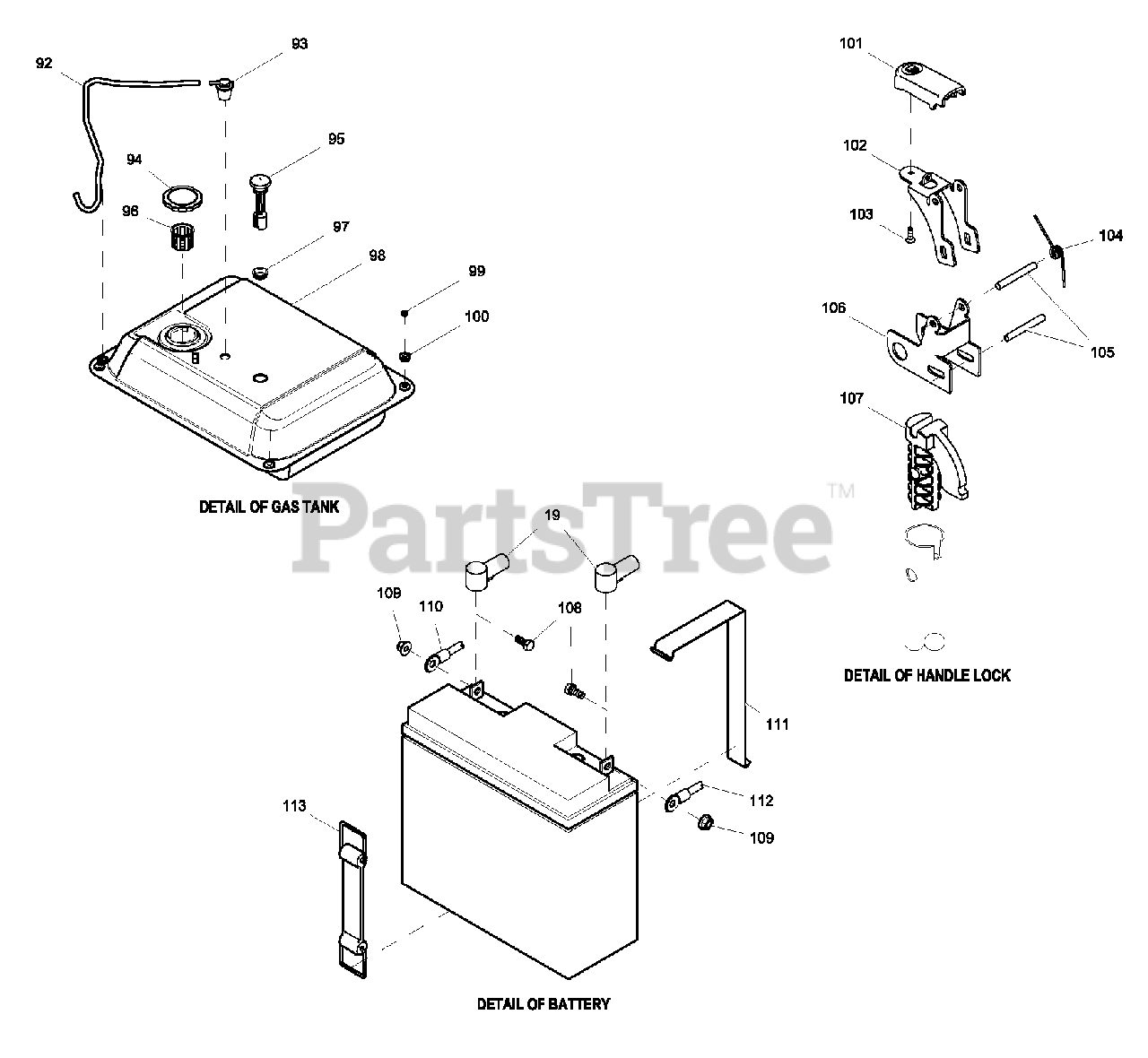

EV Generator 530 Portable XP (0J3246) Parts Diagram

  • Title
92

0H3455G

FUEL HOSE 365MM LONG

$

$

Not available

93

Generac 0H1142

ASSY, ROLL OVER SLANT VALVE
(Superseded to 0J7921A)

Note: IF UNIT SERIAL NUMBER FALLS WITHIN 7200942A - 7202021A, ORDER ROLL OVER VALVE ASSY 0J7921. ALL OTHER UNITS ORDER 0H1142A

$16.99

$

In Stock, only 1 left!

0

94

Generac 0H0958A

ASSY GAS CAP SEALED - BLACK

$24.99

$

In Stock, only 2 left!

0

95

Generac 0H9481

FUEL GAGE ROUND MULTI TWIST

$45.99

$

Usually ships in 2-12 days

0

96

Generac 0H1326

FILTER, FUEL

$4.99

$

In Stock, only 3 left!

0

97

Generac 0H7521

GROMMET FUEL GAUGE ROUND

$5.99

$

Usually ships in 2-12 days

0

98

0H8982

WELDMENT FUEL TNK 9 GAL XP RAW

$

$

Not available

99

Generac 0H1610

INSERT, ANTI-CRUSH FOR TANKS

$2.99

$

In Stock, Qty 5

0

100

Generac 0H1411

RUBBER MOUNT, 10.8 ID X 9 TALL

$10.99

$

In Stock, only 4 left!

0

101

Generac 0G9039

BUTTON LATCH RELEASE

$1.99

$

Usually ships in 2-12 days

0

102

Generac 0G9038

LEVER, LATCH RELEASE

$2.49

$

Usually ships in 2-12 days

0

103

Generac 0G9096

SCREW PFHP #8-16 X 1/2

$0.99

$

Usually ships in 2-12 days

0

104

Generac 0G9040

SPRING TORSION, LATCH RELEASE

$0.99

$

Usually ships in 2-12 days

0

105

Generac 0G9041

PIVOT PIN, LATCH RELEASE

$2.49

$

Usually ships in 2-12 days

0

106

Generac 0G9037

BRACKET, LATCH

$4.99

$

Usually ships in 2-12 days

0

107

Generac 0G9036

PLUG, FOLD DOWN HANDLE

$25.99

$

Usually ships in 2-12 days

0

108

Generac 045770

SCREW HHC M5-0.8 X 10 C8.8
(Superseded to G045770)

Note: ON INDUSTRIAL 990/760 ENGINES USE 0E9210

$0.99

$

In Stock, only 1 left!

0

109

Generac 0E6423

NUT HEX FL WHIZ M5-0.8

$0.99

$

Usually ships in 2-12 days

0

110

Generac 0H6167F

WIRE ASSY,BATT NEG/ENG BLK,XP

$11.99

$

Usually ships in 2-12 days

0

111

0H9536

BRKT BTTRY TRAY XP10 RAW

$

$

Not available

112

Generac 0H6167G

WIRE ASSY,BATT POS/STARTER,XG

$17.99

$

Usually ships in 2-12 days

0

113

Generac 0H7945

ASSEMBLY, BATTERY STRAP

$4.49

$

Usually ships in 2-12 days

0
