XP1000 (0059320) - Generac Portable Generator (SN: 6499363 - 6860324) (2012) Engine GTH530 XP Portable (0H9211) Parts Diagram

Portable Generator

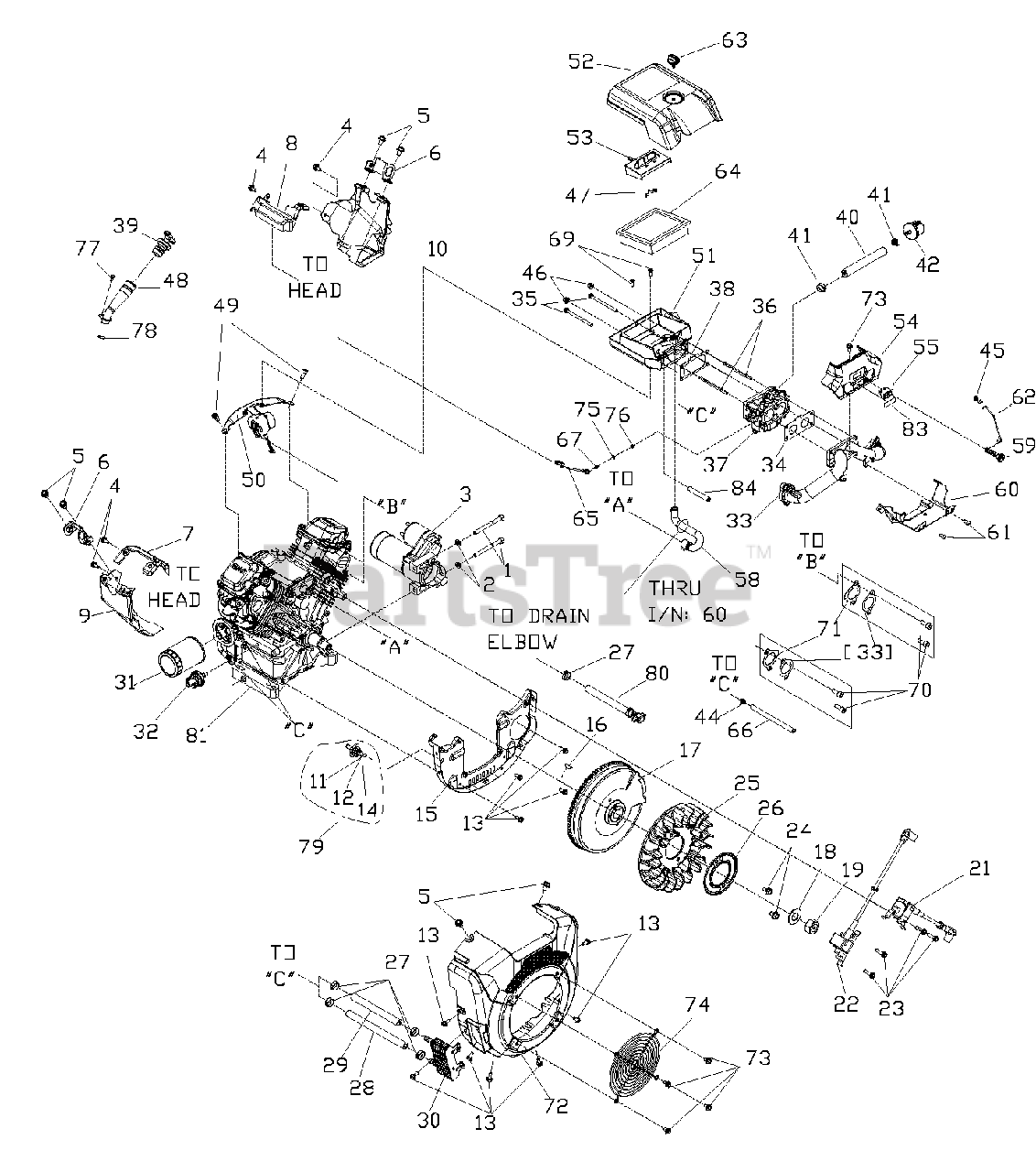

Engine GTH530 XP Portable (0H9211) Parts Diagram

  • Title

1

Generac 061906

SCREW HHC M8-1.25 X85
(Superseded to G061906)

$1.49

$

Usually ships in 2-12 days

0

2

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

3

Generac 0E9323

STARTER MOTOR

Note: FOR SOLENOID ORDER 0G3351

$276.99

$

Usually ships in 2-12 days

0

4

Generac 0C8563

SCREW HHFC M6-1.0 X 12

$9.49

$

In Stock, Qty 6

0

5

Generac 0E9507

SCREW HHFC M8-1.25 X 14

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0E9362

LIFTING HOOK

$4.99

$

Usually ships in 2-12 days

0

7

0G7611

WRAPPER INNER CYL #2

$

$

Not available

8

0G7610

WRAPPER INNER CYL #1

$

$

Not available

9

0G7609

WRAPPER OUTER CYL #2

$

$

Not available

10

0G7608

WRAPPER OUTER CYL #1

$

$

Not available

11

Generac 0E4988

SCREW CONNECTOR

$15.99

$

Usually ships in 2-12 days

0

12

Generac 0G5762

GROUND POST MOUNT BLOCK

$0.99

$

In Stock, only 1 left!

0

13

Generac 0G1705

SCREW HHFC M6-1.0 X 8

$0.99

$

Usually ships in 2-12 days

0

14

Generac 051716

NUT HEX M5 X 0.8
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

15

Generac 0G4985

BACKPLATE GT530

$25.99

$

Usually ships in 2-12 days

0

16

Generac 082774

KEY WOODRUFF 4X19
(Superseded to G082774)

$9.49

$

In Stock, only 2 left!

0

17

0E9525A

ASSY FLYWHEEL & RING 29 DEG

$

$

Not available

18

Generac 067198N

WASHER BEL V-20 X 2.2

$4.99

$

In Stock, only 1 left!

0

19

Generac 067890

HEX NUT METRIC

$

$

Not available

20

Generac 0F1177

ASSY GROUNDING WIRE
(Superseded to 0E7209)

Note: (NOT SHOWN)

$70.99

$

In Stock, only 3 left!

0

21

Generac 0G3251A

ASSY IGN COIL W/DIODE CYL #1

$

$

Not available

22

Generac 0G3251B

ASSY IGN COIL W/DIODE CYL #2
(Superseded to 0G3251TB)

$58.99

$

Usually ships in 2-12 days

0

23

0G6432

SCREW HHC M6-1.25 X 25 SEMS

$

$

Not available

24

Generac 0H6213

SCREW HHFCS M8-1.25 X 12

$

$

Not available

25

Generac 0E9486A

FAN FLYWHEEL

$10.99

$

Usually ships in 2-12 days

0

26

Generac 0C3032

PLATE FAN

$7.99

$

Usually ships in 2-12 days

0

27

Generac 0G3662B

CLAMP HOSE OETIKER STEPLESS 18.5

$4.49

$

In Stock, Qty 13

0

28

Generac 0F0452E

HOSE 3/8" PUSH-ON (191MM)

$7.49

$

Usually ships in 2-12 days

0

29

Generac 0F0452C

HOSE 3/8" PUSH ON (152MM)

$4.49

$

Usually ships in 2-12 days

0

30

Generac 0E9406

OIL COOLER

$51.99

$

In Stock, only 1 left!

0

31

Generac 070185E

FILTER OIL 90MM NO BRAND
(Superseded to 070185ES)

Note: ORDER 070185ES

$17.99

$

In Stock, only 1 left!

0

32

Generac 0H1315

SWITCH LOW OIL PRESSURE

$

$

Not available

33

Generac 0E9376

MANIFOLD INTAKE GT530

$90.99

$

Usually ships in 2-12 days

0

34

Generac 0E9471

GASKET INTAKE MANIFOLD TO CARB/MIXER

$1.49

$

In Stock, Qty 20+

0

35

Generac 078643B

BOLT CARB MOUNT

$1.99

$

In Stock, only 4 left!

0

36

096290B

STUD M6-1.0 X 90 DRI-LOC

$

$

Not available

37

Generac 0E9383F

CARBURETOR

$272.99

$

In Stock, only 1 left!

0

38

Generac 0E9472

GASKET AIRBOX TO CARB / MIXER

$5.49

$

In Stock, only 4 left!

0

39

Generac 0E7887E

ASSY DIPSTICK

$11.99

$

Usually ships in 2-12 days

0

40

0F9176D

HOSE 1/4" GREENBAR SAE30R7 6"

$

$

Not available

41

Generac 048031N

CLAMP HOSE BAND 0.530

$1.49

$

In Stock, only 1 left!

0

42

Generac 0D6313

FILTER, FUEL

$5.49

$

In Stock, only 3 left!

0

44

Generac 048031G

CLAMP HOSE BAND 0.409

$0.99

$

In Stock, Qty 5

0

45

Generac 0D1366

BUSHING GOVERNOR ROD

$3.99

$

In Stock, Qty 6

0

46

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$7.49

$

Usually ships in 2-12 days

0

47

Generac 0D5125

SPRING SUMMER / WINTER

$2.49

$

In Stock, only 4 left!

0

48

Generac 0H1532

ASSY OIL CHECK AND FILL

$21.99

$

Usually ships in 2-12 days

0

49

Generac 040948

SCREW SHC M8-1.25 X 16

$

$

Not available

50

Generac 0J2626

ELECTRONIC GOVERNOR STEPPER MOTOR

$223.99

$

Usually ships in 2-12 days

0

51

Generac 0E9374A

BASE AIRBOX

$17.99

$

Usually ships in 2-12 days

0

52

Generac 0E9375A

COVER AIRBOX

$24.99

$

Usually ships in 2-12 days

0

53

Generac 0E9385

VALVE SUMMER / WINTER

$2.99

$

In Stock, only 2 left!

0

54

Generac 0E9386C

COVER FRONT GTH530

$5.99

$

In Stock, only 1 left!

0

55

Generac 0G9549

SWITCH MOMENTARY (OFF) - ON

$18.99

$

In Stock, only 1 left!

0

56

Generac 0H5904

HARN CTRL PNL CONNECT

Note: (NOT SHOWN)

$51.99

$

Usually ships in 2-12 days

0

58

0E9393

BREATHER HOSE

$

$

Not available

59

Generac 0E9449

KNOB CHOKE

$2.49

$

Usually ships in 2-12 days

0

60

Generac 0E9450A

BAFFLE CENTER

$68.99

$

Usually ships in 2-12 days

0

61

Generac 0E1644

SCREW BHSC M6-1.0 X 12

$1.49

$

Usually ships in 2-12 days

0

62

Generac 0E9477

ROD MANUAL CHOKE

$2.99

$

In Stock, Qty 7

0

63

Generac 0E9511B

KNOB AIRBOX QUARTER-TURN

$5.49

$

Usually ships in 2-12 days

0

64

Generac 073111

AIR FILTER ELEMENT
(Superseded to 073111S)

Note: ORDER PART NUMBER 073111S

$20.99

$

In Stock, only 3 left!

0

65

Generac 0J2494

ASSY THROTTLE ROD

$6.99

$

Usually ships in 2-12 days

0

66

Generac 0H1207H

HOSE 11MM OD X 5.5MM ID X 30"

$

$

Currently unavailable

67

Generac 0D6342A

BALL STUD 8MM

$2.99

$

Usually ships in 2-12 days

0

69

0J4525

SCREW PFHM M6-1.0 X 16

$

$

Not available

70

Generac 0G3730B

SCREW SHC M8-1.25 X 25 SEMS

$1.49

$

In Stock, Qty 5

0

71

Generac 0E9319

GASKET INTAKE

$1.49

$

In Stock, only 4 left!

0

72

Generac 0E9336F

BLOWERHOUSING

$67.99

$

Usually ships in 2-12 days

0

73

Generac 0D6147

SCREW HHFCS M6-1.0 X 10

$0.99

$

In Stock, only 1 left!

0

74

Generac 0C9997

GUARD FAN

$7.99

$

Usually ships in 2-12 days

0

75

Generac 0D6098

SPACER THROTTLE ROD

$1.99

$

In Stock, only 1 left!

0

76

Generac 0D9784

NUT HEX LOCK

$9.49

$

In Stock, Qty 7

0

77

066482

SCREW HHSW M5-0.5 X 10

$

$

Not available

78

Generac 090072

O-RING 9/16 X 3/4 X 3/32
(Superseded to G090072)

$4.49

$

In Stock, only 1 left!

0

79

Generac 0E4997

ASSY GROUND WIRE CONNECTOR
(Superseded to 0E49970ESV)

Note: MAKE SURE CUSTOMER IS NOT LOOKING FOR THE 0C3016A BACKING PLATE IF YOU REALLY NEED THE GROUND WIRE CONNECTOR ORDER P/N 0E49970ESV

$28.99

$

In Stock, Qty 5

0

80

0G4403B

ASSYEMBLY OIL DRAIN HOSE

$

$

Not available

81

0G5015001E

ASSY BLOCK GTH530 GAS PORT

$

$

Not available

83

Generac 0H1705

DECAL IGNITION

$3.99

$

Usually ships in 2-12 days

0
