XP1000 (0059320) - Generac Portable Generator (SN: 6499363 - 6860324) (2012) Engine GT530 XP (0H2911) Parts Diagram

Portable Generator

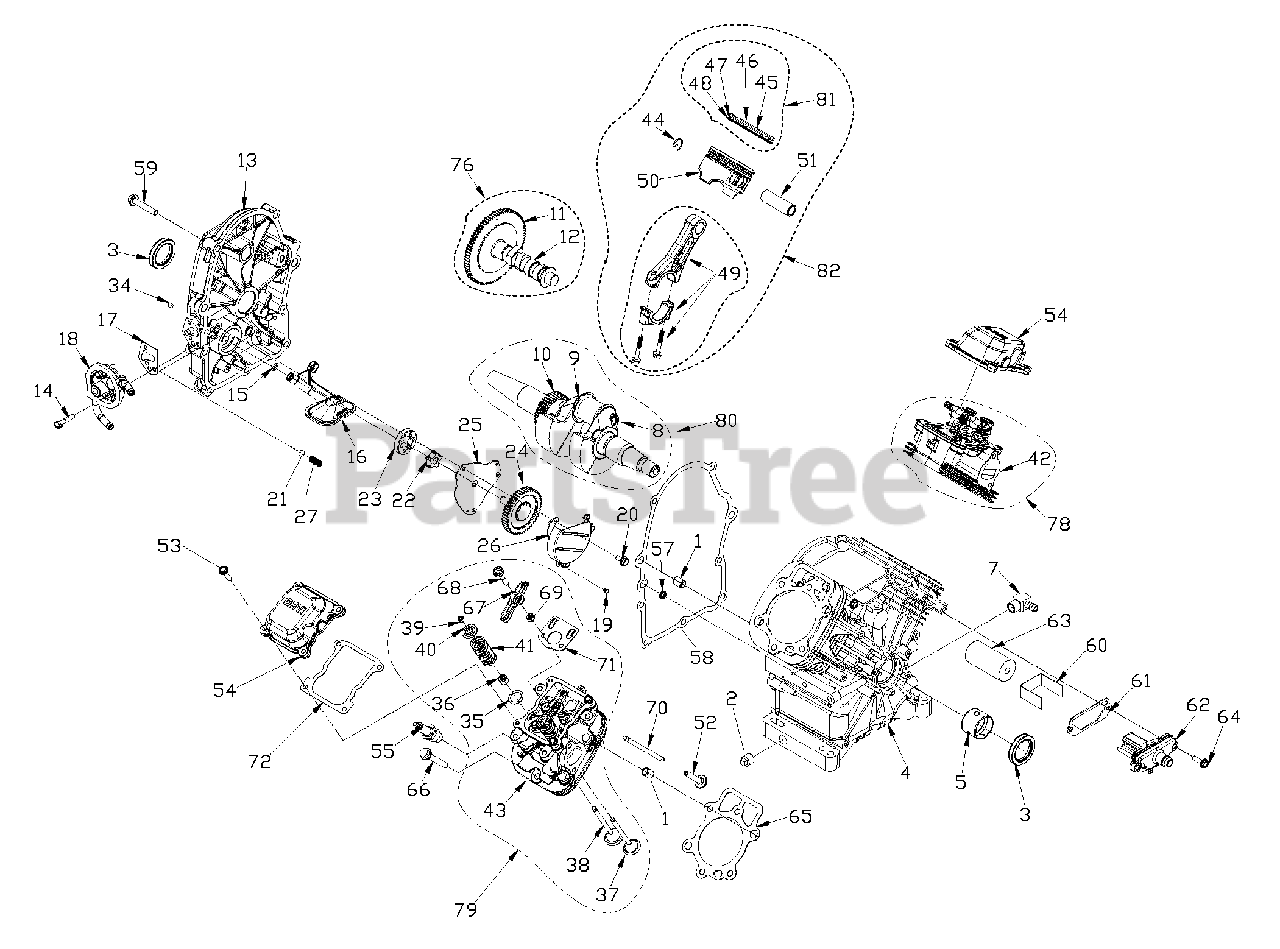

Engine GT530 XP (0H2911) Parts Diagram

  • Title

1

Generac 078699B

SLEEVE DOWEL PIN 12 DIA

$1.99

$

Usually ships in 2-12 days

0

2

Generac 0D4788

PLUG STD PIP 3/8 STEEL

$2.49

$

In Stock, only 1 left!

0

3

Generac 0E3812

SEAL CRANKSHAFT OIL 35 DIA

$11.99

$

In Stock, Qty 5

0

4

0E9310

SUBASSEMBLY CRANKCASE GTH530

$

$

Not available

5

0E9412

BEARING 35MM GT530

$

$

Not available

7

Generac 043790A

ELBOW 90 DEG 3/8 X 3/8 NPT W/VS

$28.99

$

Usually ships in 2-12 days

0

8

Generac 0C5733

PLUG EXPANSION

$0.99

$

Usually ships in 2-12 days

0

9

Generac 0G1062E

CRANKSHAFT GTH530

$146.99

$

Usually ships in 2-12 days

0

10

0E9347

GEAR CRANKSHAFT

$

$

Not available

11

0E9326

GEAR CAMSHAFT

$

$

Not available

12

0E9324A

CAMSHAFT MACHINED W/O CRL

$

$

Not available

13

0J7711A

GEAR COVER MACHINED

$

$

Not available

14

Generac 0G6431A

SCREW SHC M6-1 X 30 SEMS

$1.49

$

Usually ships in 2-12 days

0

15

Generac 0C3027

O-RING 3/8 X 1/2

$0.99

$

In Stock, only 2 left!

0

16

Generac 0E9358

PICKUP SCREEN OIL

$9.99

$

In Stock, Qty 11

0

17

Generac 0E9370

GASKET OIL FILTER ADAPTOR

$2.49

$

In Stock, Qty 5

0

18

Generac 0E9505A

ASSEMBLY OIL COOLER ADAPTOR W/PRES RELIEF

$48.99

$

Usually ships in 2-12 days

0

19

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

20

Generac 0G0919

SCREW HHFCS M6-1 X 12

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0A5776

BALL RELIEF

$1.49

$

Usually ships in 2-12 days

0

22

Generac 0C5314A

GEROTOR INNER

$3.99

$

Usually ships in 2-12 days

0

23

Generac 0C5315A

GEROTOR OUTER

$5.49

$

Usually ships in 2-12 days

0

24

Generac 0E9345

GEAR GEROTOR

$7.99

$

Usually ships in 2-12 days

0

25

Generac 0E9382

COVER GEROTOR

$4.99

$

Usually ships in 2-12 days

0

26

Generac 0E9399

COVER GEAR SHIELD

$11.99

$

Usually ships in 2-12 days

0

27

Generac 0E9482

SPRING OIL PRESSURE RELIEF

$3.49

$

Usually ships in 2-12 days

0

34

0D4614

SCREW SHS 5/16/24 X 3/8

$

$

Not available

35

Generac 084186

WASHER VALVE SPRING WEAR
(Superseded to G084186)

$0.99

$

In Stock, Qty 10

0

36

Generac 088156

SEAL VALVE STEM
(Superseded to G088156)

$4.49

$

In Stock, Qty 5

0

37

Generac 0C3590

VALVE EXHAUST

$15.99

$

Usually ships in 2-12 days

0

38

Generac 0C3591

VALVE INTAKE

$16.99

$

In Stock, only 1 left!

0

39

Generac 0C3592

KEEPER VALVE SPRING

$0.99

$

Usually ships in 2-12 days

0

40

Generac 0C3733

VALVE RETAINER

$1.49

$

Usually ships in 2-12 days

0

41

Generac 0C4390

SPRING VALVE SF

$2.49

$

Usually ships in 2-12 days

0

42

Generac 0E9304

ASSY CYL HEAD #1 SEATS AND GUIDES

$170.99

$

Usually ships in 2-12 days

0

43

Generac 0E9305

ASSY CYL HEAD #2 SEATS AND GUIDES

$106.99

$

Usually ships in 2-12 days

0

44

Generac 076390

RING RETAINING

$

$

Not available

45

Generac 0G4379A

RING PISTON TOP

$14.99

$

Usually ships in 2-12 days

0

46

Generac 0G4379B

RING PISTON 2ND

$6.99

$

Usually ships in 2-12 days

0

47

Generac 0G4379C

RING PISTON OIL RAIL

$2.49

$

Usually ships in 2-12 days

0

48

Generac 0G4379D

RING PISTON OIL SPACER

$3.49

$

Usually ships in 2-12 days

0

49

Generac 0G1054A

ASSY CONROD GT530

$20.99

$

Usually ships in 2-12 days

0

50

Generac 0G4331

PISTON COATED

$48.99

$

In Stock, only 1 left!

0

51

Generac 076389

PIN PISTON

$

$

Not available

52

Generac 083235

TAPPET
(Superseded to G083235)

$22.99

$

Usually ships in 2-12 days

0

53

Generac 080318

SCREW HHFC M6-1.0 X 8
(Superseded to G080318)

$7.99

$

Usually ships in 2-12 days

0

54

Generac 0E9334C

COVER ROCKER GT530

$15.99

$

Usually ships in 2-12 days

0

55

Generac 0E9368

SPARKPLUG

$3.49

$

In Stock, Qty 12

0

57

Generac 0C5943

SEAL OIL PASSAGE

$1.49

$

In Stock, Qty 5

0

58

Generac 0E9350

GASKET CRANKCASE

$6.49

$

In Stock, Qty 7

0

59

Generac 073144

SCREW HHFC M8-1.25 X 45
(Superseded to G073144)

$0.99

$

In Stock, only 3 left!

0

60

Generac 0K3899

SEPARATOR OIL GT530 BREATHER

$2.49

$

Usually ships in 2-12 days

0

61

Generac 0E9366

GASKET BREATHER

$2.99

$

Usually ships in 2-12 days

0

62

Generac 0E9367A

ASSY BREATHER

$13.99

$

Usually ships in 2-12 days

0

63

Generac 0E3372C

SEPARATOR OIL BREATHER

$7.49

$

In Stock, only 1 left!

0

64

Generac 0J9667

SCREW HHFC M6-1.0 X 20

$3.49

$

Usually ships in 2-12 days

0

65

Generac 0E9351

GASKET CYLINDER HEAD

$4.99

$

In Stock, Qty 18

0

66

Generac 077168

SCREW HHC M8-1.25 X 56
(Superseded to G077168)

$14.99

$

In Stock, Qty 5

0

67

Generac 077160

ARM ROCKER
(Superseded to G077160)

$12.99

$

Usually ships in 2-12 days

0

68

Generac 077161

STUD ROCKER ARM PIVOT
(Superseded to G077161)

$2.49

$

Usually ships in 2-12 days

0

69

Generac 076307

NUT JAM M6-0.75 FINE THREAD
(Superseded to G076307)

$0.99

$

Usually ships in 2-12 days

0

70

Generac 0E9455E

PUSHROD

$6.49

$

Usually ships in 2-12 days

0

71

Generac 0E9353A

PLATE PUSHROD GUIDE

$1.99

$

Usually ships in 2-12 days

0

72

Generac 0E9352

GASKET VALVE COVER

$2.49

$

In Stock, Qty 20+

0

76

Generac 0E9407A

ASSY CAM AND GEAR

Note: USE 0E9407ASRV

$

$

Currently unavailable

77

Generac 0E9508

RING RETAINING E-STYLE

$0.99

$

In Stock, only 2 left!

0

78

Generac 0G0275

KIT HEAD ASSY CYL #1

$157.99

$

Usually ships in 2-12 days

0

79

Generac 0G0276

KIT HEAD ASSY CYL #2

$122.99

$

Usually ships in 2-12 days

0

80

0G1063E

ASSY CSHAFT W/PLUG

$

$

Not available

81

Generac 0G4379

RING SET DIA 75

Note: ORDER PART 0G43790SRV

$

$

Currently unavailable

82

0G4473A

ASSY PISTON AND CONNECTING ROD

$

$

Not available
