XLS 1.54 XL (UT-01274) - Homelite Pump Starter & Ignition Parts Diagram

Pump

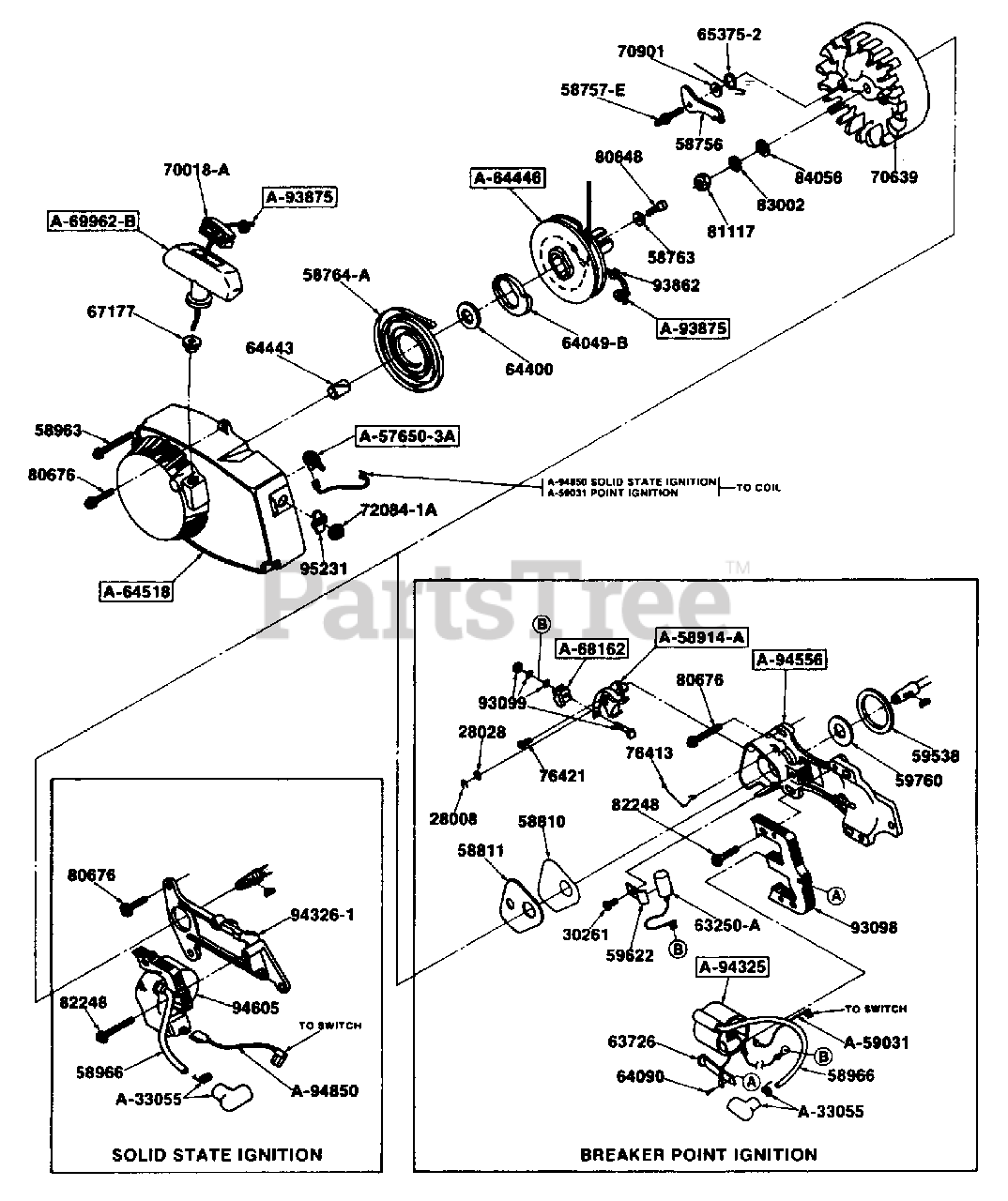

Starter & Ignition Parts Diagram

  • Title
28008

Homelite 28008

CLIP- Point

$

$

Currently unavailable

28028

Homelite 28028

WASHER- Plain

$

$

Currently unavailable

30261

Homelite 30261

SCREW Group (Condenser) (8-32 x 5/16)

$

$

Not available

A-33055

Homelite A33055

TERMINAL- High tension

$

$

Not available

A576503A

Homelite A576503A

SWITCH
(Superseded to A576503B)

$

$

Not available

Homelite 72084A1

NUT
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

58756

Homelite 58756

PAWL- Starter
(Superseded to UP06426)

$16.99

$

Usually ships in 3-7 days

0

58757E

Homelite 58757E

STUD- Starter pawl

$

$

Not available

58763

Homelite 58763

WASHER- Retainlng

$

$

Not available

58764-A

Homelite 58764A

SPRING- Recoll

$

$

Currently unavailable

58810

Homelite 58810

GASKET- Breaker box cover

$

$

Currently unavailable

58811

Homelite 58811

COVER Breaker box

$

$

Currently unavailable

A-58914

Homelite A58914

POINT- Breaker
(Superseded to A58914A)

$

$

Not available

Homelite 28008

CLIP- Point

$

$

Currently unavailable

Homelite 28028

WASHER- Plain

$

$

Currently unavailable

Homelite 59760

SEAL Felt

$

$

Currently unavailable

58963

Homelite 58963

SCREW- Hex 12-24 x 1 11/16

$

$

Not available

58966

Homelite 58966

LEAD- Hi tension

$

$

Currently unavailable

A-59031

Homelite A59031

GROUND LEAD

$

$

Currently unavailable

59538

Homelite 59538

GASKET- Stator

$

$

Currently unavailable

59622

Homelite 59622

CLAMP- Condenser

$

$

Currently unavailable

59760

Homelite 59760

SEAL- Felt

$

$

Currently unavailable

63250-A

Homelite 63250A

CONDENSER
(Superseded to UP07233)

$

$

Not available

63726

Homelite 63726

CLIP- Coil retaining

$

$

Currently unavailable

64049-B

Homelite 64049B

LOCK- Spring

$

$

Not available

64090

Homelite 64090

SCREW- Terminal

$

$

Currently unavailable

64400

Homelite 64400

BUSHING- Spring lock
(Superseded to UP07445)

$

$

Not available

64443

Homelite 64443

BUSHING Starter post

$

$

Not available

A-64446

Homelite A64446

PULLEY- Starter

$

$

Currently unavailable

$

$

Not available

Homelite 64400

BUSHING
(Superseded to UP07445)

$

$

Not available

A-64518

Homelite A64518

HOUSING- Fan
(Superseded to A06726)

$231.99

$

Usually ships in 3-7 days

0

Homelite 64443

BUSHING- Starter post

$

$

Not available

Homelite 67177

BUSHING- Rope

$

$

Not available

653752

Homelite 653752

SPRING- Starter pawl
(Superseded to UP06351)

$

$

Not available

67177

Homelite 67177

BUSHING- Rope

$

$

Not available

A-68162

Homelite A68162

BLOCK- Terminal

$

$

Currently unavailable

Homelite 93099

NUT- (Connection Stud)

$

$

Currently unavailable

A69962B

Homelite A69962B

GRIP- Starter

$19.99

$

Usually ships in 3-7 days

0

Homelite 70018A

INSERT- Rope retaining

$

$

Not available

70018A

Homelite 70018A

INSERT- Rope retaining

$

$

Not available

70639

Homelite 70639

ROTOR- Magneto

$

$

Not available

70901

Homelite 70901

WASHER- Lock

$

$

Not available

72084-1A

$

$

Currently unavailable

76413

Homelite 76413

CLIP- Breaker box cover

$

$

Currently unavailable

76421

Homelite 76421

SCREW- Contact plate

$

$

Currently unavailable

80648

Homelite 80648

SCREW- Hex 10-32 x 1/2

$

$

Not available

80676

Homelite 80676

SCREW- Hex 12-24 x 5/8

$

$

Not available

81117

Homelite 81117

NUT- Hex, 5/16-24

Note: 0

$2.49

$

In Stock, only 1 left!

0

82248

Homelite 82248

SCREW- Hex washer hd., 8-32 x 3/4

$

$

Not available

83002

Homelite 83002

WASHER- Lock, 5/16
(Superseded to 653671)

Note: 0

$4.49

$

Usually ships in 3-7 days

0

84056

Homelite 84056

WASHER- Flat. 5/16
(Superseded to UP06541)

$3.49

$

Usually ships in 3-7 days

0

93098

Homelite 93098

CORE

Note: 0

$

$

Not available

93099

Homelite 93099

NUT- (Connection stud)

Note: 0

$

$

Currently unavailable

A-93875

Homelite A93875

ROPE- Starter
(Superseded to 570841)

Note: 0

$

$

Not available

Homelite 93862

WASHER

Note: 1

$4.99

$

Usually ships in 3-7 days

0

93862

Homelite 93862

WASHER

Note: 1

$4.99

$

Usually ships in 3-7 days

0

A-94325

Homelite A94325

COIL- (W/lead)

Note: 0

$

$

Not available

Homelite 93095

LEAD

Note: 1

$

$

Currently unavailable

94326-1

Homelite 943261

PLATE- Ign (Coil mtg )

Note: 0

$

$

Currently unavailable

A-94556

Homelite A94556

KIT- Stator plate

Note: 0

$

$

Currently unavailable

Homelite 82248

SCREW- Hex washer 8-32 x 3/4

$

$

Not available

$

$

Not available

94605

Homelite 94605

MODULE & CORE
(Superseded to A00815)

$

$

Not available

A-94850

Homelite A94850

LEAD- Ground

$

$

Not available

95231

Homelite 95231

PLATE-"ON-OFF"
(Superseded to UP04266)

$

$

Not available
