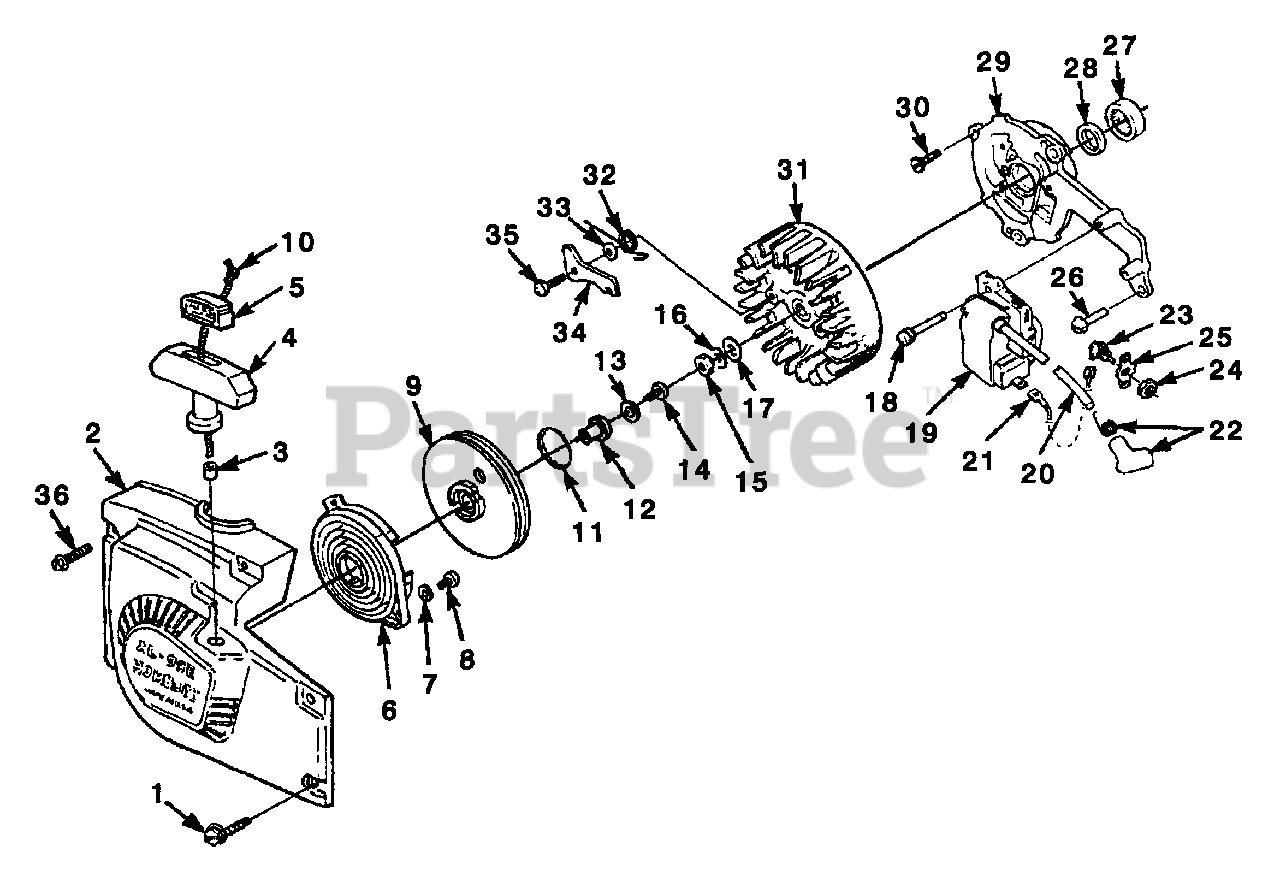

XL 98 E (UT-05060) - Homelite Multi Purpose Saw Starter - Ignition Parts Diagram

Multi Purpose Saw

Starter - Ignition Parts Diagram

  • Title

1

Homelite 825551

SCREW - Th Hd. (10-24 X 3/4") Torx (T25)
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite A03619A

HOUSING - Starter w/bushing

$

$

Not available

3

Homelite 67177

BUSHING

Note: Torque Specs. 50-60 In/Lbs, 5.6-6.7 Nm ; 262 Red Required Locktite

$

$

Not available

4

Homelite A69962B

GRIP - Starter

$19.99

$

Usually ships in 3-7 days

0

5

Homelite 70018A

INSERT

$

$

Not available

6

Homelite A98067

SPRING & RETAINER
(Superseded to A98067A)

$42.99

$

Usually ships in 3-7 days

0

7

Homelite 84025

WASHER - Flat

$

$

Not available

8

Homelite 82528

SCREW - Thd. Form. (6-32 X 3/8")

Note: Torque Specs. 8-12 In/Lbs, 9-1.3 Nm

$2.49

$

Usually ships in 3-7 days

0

9

Homelite A97990C

PULLEY & CUP
(Superseded to UP07034)

$

$

Not available

10

Homelite A00518

STARTER ROPE
(Superseded to 93418)

$

$

Currently unavailable

11

Homelite 02505

SPRING - Grip

$

$

Not available

12

Homelite 97992A

BUSHING - Starter Rope
(Superseded to UP07218)

$

$

Not available

13

Homelite 58763

WASHER - Flat

$

$

Not available

14

Homelite 82409

SCREW - (10 7/8")

$

$

Not available

15

Homelite 81124A

NUT - Hex (3/8-24)

Note: Torque Specs. 200-250 In/Lbs, 22.6-28.2 Nm

$

$

Not available

16

Homelite 83102

WASHER - Lock (3/8")

$

$

Not available

17

Homelite 84010

WASHER - Flat (3/8")
(Superseded to PS84010)

$

$

Not available

18

Homelite 88044

SCREW - Sems Hex hd (8-32 X 1")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$

$

Not available

19

Homelite A96798A

MODULE - Ignition
(Superseded to A96798AS)

$

$

Not available

20

Homelite 96743

LEAD - High Tension

$

$

Not available

21

Homelite A94850

LEAD - Ground

$

$

Not available

22

Homelite A33055

TERMINAL - Spark Plug

$

$

Not available

23

Homelite A576503B

SWITCH - Grounding

$

$

Not available

24

Homelite 72084A1

NUT
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 12793A

PLATE - Indicating
(Superseded to UP07113)

$

$

Not available

26

Homelite 80052

SCREW - Sems Hex Hd (1/4-20 X 3/4")

Note: Torque Specs. 110-125 In/Lbs, 12.4-14.1 Nm ; 262 Red Required Locktite

$

$

Not available

27

Homelite 63195

BEARING - Roller

$

$

Not available

28

Homelite 12283A

SEAL

$

$

Currently unavailable

29

Homelite A96799A

PLATE - Back

$

$

Not available

30

Homelite 80049

SCREW - (1/4-20 X 5/8")

Note: Torque Specs. 110-125 In/Lbs, 12.4-14.1 Nm ; 262 Red Required Locktite

$

$

Not available

31

Homelite 96801A

ROTOR

$

$

Not available

32

Homelite 01101

SPRING - Starter Pawl

$

$

Not available

33

Homelite 84115

WASHER - Flat
(Superseded to 588512)

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 58756A

STARTER PAWL

$

$

Currently unavailable

35

Homelite 64054C

SCREW - Shoulder

Note: Torque Specs. 70-90 In/Lbs, 7.9-10.1 Nm

$

$

Not available

36

Homelite 96176

SCREW - Th Hd (10-24 X 1 625) Torx (T25)

Note: Torque Specs. 50-60 In/Lbs, 5.6-6.7 Nm ; 262 Red Required Locktite

$

$

Not available
