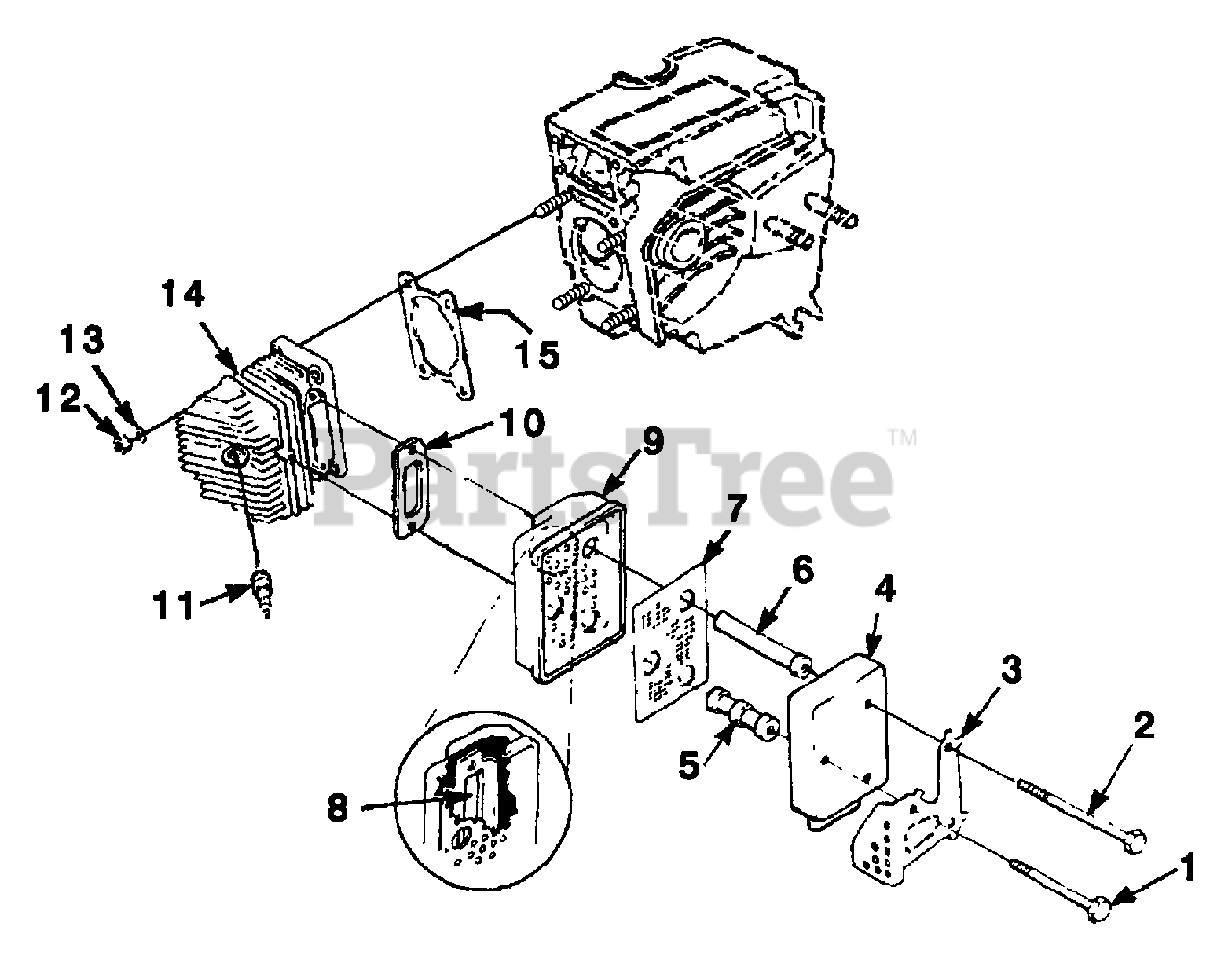

XL 98 E (UT-05060) - Homelite Multi Purpose Saw Muffler Parts Diagram

Multi Purpose Saw

Muffler Parts Diagram

  • Title

Homelite A69864C

COMPLETE MUFFLER

$

$

Currently unavailable

1

Homelite 95885

SCREW - Hex Hd

Note: Torque Specs. 100-110 In/Lbs, 11.3-12.4 Nm

$

$

Not available

2

Homelite 82280

SCREW - Hex Hd (1/4-20 X 3")

Note: Torque Specs. 100-110 In/Lbs, 11.3-12.4 Nm

$

$

Not available

3

Homelite 69842

SHIELD - Muffler

$

$

Not available

4

Homelite A698361

CAP - Muffler

$

$

Not available

5

Homelite 69844

SUPPORT - Short

$

$

Not available

6

Homelite 69843

SUPPORT - Long

$

$

Not available

7

Homelite A93900A

SCREEN - Spark Arrestor

$

$

Currently unavailable

8

Homelite 69839

PLATE Muffler

$

$

Not available

9

Homelite A698381

BODY - Muffler

$

$

Not available

10

Homelite 78098

GASKET - Muffler

$

$

Not available

11

Homelite 93561S

SPARK PLUG
(Superseded to D93561)

$

$

Not available

12

Homelite 96212

NUT - (1/4-28 X 3/8")

Note: Torque Specs. 100-110 In/Lbs, 11.3-12.4 Nm

$

$

Not available

13

Homelite 83009

WASHER - Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

14

Homelite A42206B

CYLINDER

$

$

Currently unavailable

15

Homelite 637781

GASKET - Cylinder

$

$

Not available
