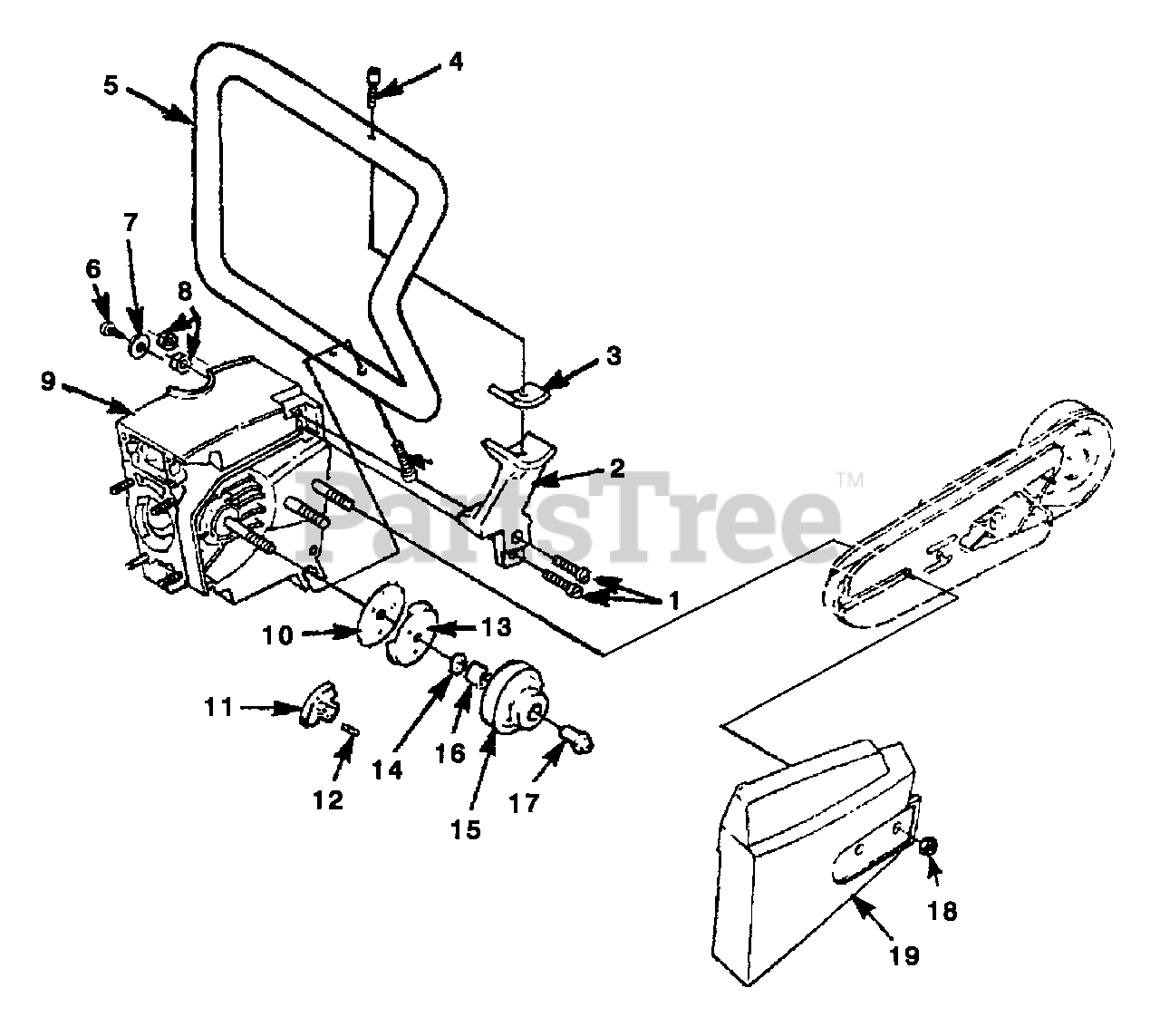

XL 98 E (UT-05060) - Homelite Multi Purpose Saw Handle - Clutch Parts Diagram

Multi Purpose Saw

Handle - Clutch Parts Diagram

  • Title

1

Homelite 80891

SCREW - Hex hd (12-24 X 7/8")

Note: Torque Specs. 80-90 In/Lbs, 9.0-10.1 Nm ; 262 Red Required Locktite

$

$

Not available

2

Homelite 698292

BRACKET - Handle bar
(Superseded to 698292A)

$

$

Not available

3

Homelite 51163

MOUNT - Shock (bracket)

$

$

Not available

4

Homelite 804281

SCREW - Nylock (1/4-20 X 1")
(Superseded to UP06828)

$

$

Not available

5

Homelite A49927

HANDLE BAR

$

$

Not available

6

Homelite 80939

SCREW - Pan hd
(Superseded to 82600)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 95935

WASHER

$

$

Not available

8

Homelite 81225

NUT - Hex 12-24

$

$

Not available

9

Homelite A08335

CRANKCASE

$

$

Currently unavailable

10

Homelite 93628

COVER - Clutch

$

$

Not available

11

Homelite A69480C

CLUTCH ASSEMBLY

$

$

Not available

12

Homelite 67053

SPRING - Clutch

$

$

Not available

13

Homelite 657601B

PLATE - Clutch

$

$

Not available

14

Homelite 59933

WASHER - Thrust (Inner)

$

$

Currently unavailable

15

Homelite A49224

PULLEY - Bearing & Arm

$

$

Not available

16

Homelite 51151

BEARING - Needle

$

$

Not available

17

Homelite A97901A

INNER RACE KIT

$

$

Currently unavailable

18

Homelite 81282

NUT - Hex Flange (5/16-18)
(Superseded to UP03492)

Note: Torque specs. Hand tight

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 535797

COVER - Drivecase

$

$

Not available
