XL 98 D (UT-05049) - Homelite Multi Purpose Saw Handle, Clutch & Blade Arm Parts Diagram

Multi Purpose Saw

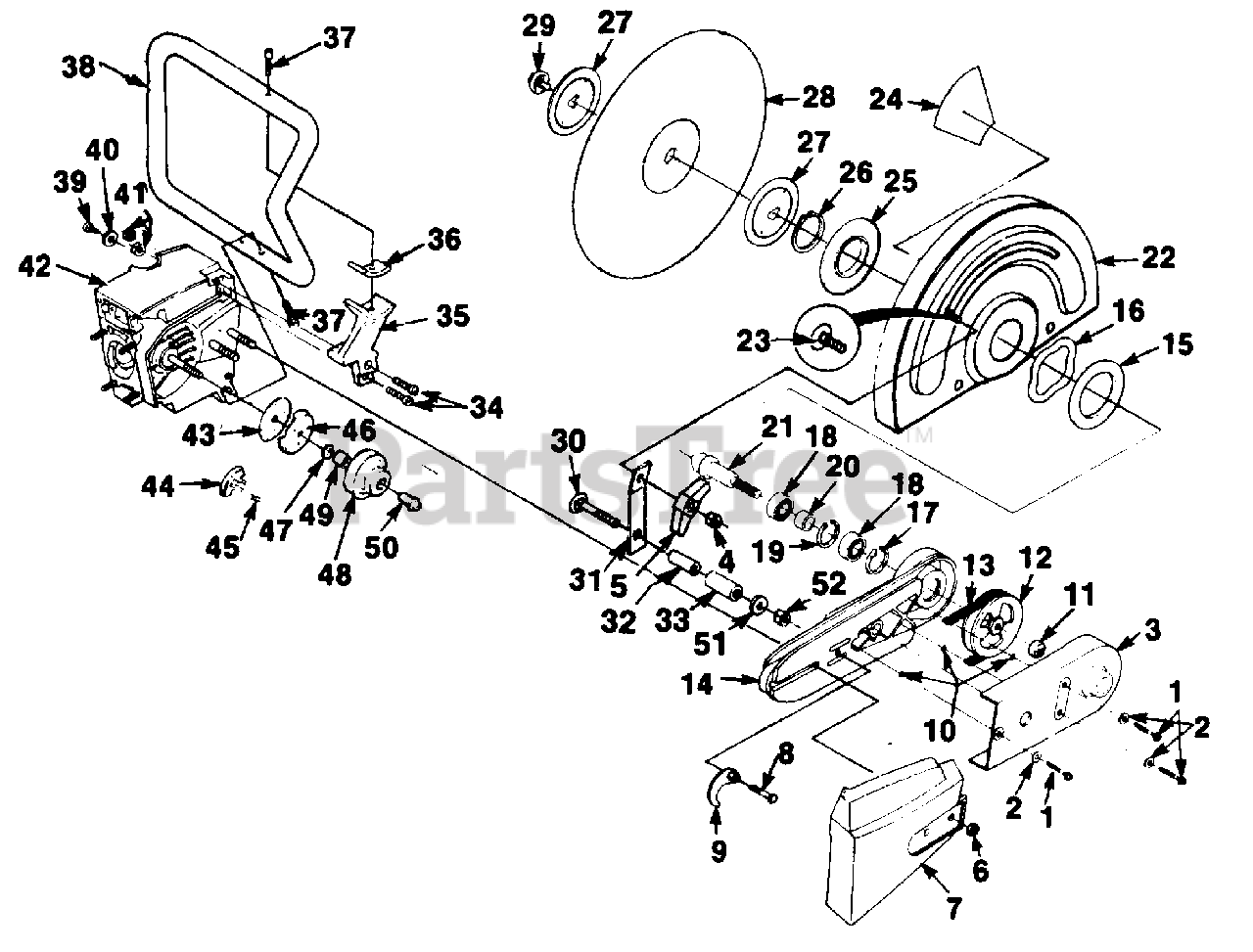

Handle, Clutch & Blade Arm Parts Diagram

  • Title

1

Homelite 94143

SCREW- Slotted (1/4-20 x 1 1/2")

$

$

Not available

2

Homelite 84026

WASHER- Flat

$

$

Not available

3

Homelite 43966B

COVER- Arm
(Superseded to UP08570)

$

$

Not available

4

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

5

Homelite JA339550

KNOB- Handle

$

$

Not available

6

Homelite 810892

NUT- (3/8-16)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 535795

COVER- Drivecase

$

$

Not available

8

Homelite 80087

SCREW- Hex hd. (5/16-18 x 1 1/2")

$

$

Not available

9

Homelite A49194

CAM & ADJUSTER
(Superseded to UP03371)

$18.99

$

Usually ships in 3-7 days

0

10

Homelite 46462

"O" RING

$

$

Not available

11

Homelite 81245

NUT- Hex (1/2-13)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 439981A

PULLEY- Drive

$

$

Currently unavailable

13

Homelite 46068

BELT- "V" Drive
(Superseded to UP06392)

$

$

Not available

14

Homelite A49558

ARM- Wheel

$

$

Currently unavailable

15

Homelite 47387

SHIM

$

$

Not available

16

Homelite 47388

SPRING- Wave

$

$

Not available

Homelite A00445C

ARM- Wheel (20 mm)

$

$

Currently unavailable

Homelite 47387

SHIM

$

$

Not available

Homelite 47388

SPRING- Wave

$

$

Not available

17

Homelite 31746

RING- Retaining
(Superseded to UP06391)

$

$

Not available

18

Homelite 63107S

BEARING- Ball
(Superseded to UP06440)

$

$

Not available

19

Homelite 47207

RING- Retaining

$

$

Not available

20

Homelite 46067

SPACER- Bearing

$

$

Not available

21

Homelite 49710

SHAFT- Wheel

$

$

Not available

Homelite A49665

SHAFT- Wheel (20 mm)

$

$

Currently unavailable

22

Homelite A434621A

GUARD- Wheel (12")

$

$

Currently unavailable

Homelite A495801

GUARD- Wheel (14")
(Superseded to UP07142)

$

$

Not available

23

Homelite 82519A

BOLT- Step (14")
(Superseded to UP06533)

$

$

Not available

24

Homelite 48922

LABEL- Caution
(Superseded to 48922A)

$

$

Not available

25

Homelite 46000

WASHER- Mounting

$

$

Not available

26

Homelite 46065

RING- Retaining

$

$

Not available

27

Homelite 439961A

FLANGE- Wheel
(Superseded to 43996A)

$

$

Not available

28

Homelite 64596BS

WHEEL- Resinoid (12")
(Superseded to 64596C)

$

$

Not available

Homelite 49559

WHEEL- Resinoid (14")

$26.99

$

Usually ships in 3-7 days

0

29

Homelite A48783A

KIT- Screw, Washer, Ret. Ring

$

$

Not available

30

Homelite 82534

BOLT- Step (12")

$

$

Not available

31

Homelite A49789

ARM- Adjusting

$

$

Currently unavailable

32

Homelite 49819

SKIRT- Rubber

$

$

Not available

33

Homelite 49553A

TUBING- Rubber

$

$

Not available

34

Homelite 80891

SCREW- Hex hd. (12-24 x 3/4")

$

$

Not available

35

Homelite 698292

BRACKET- Handle bar
(Superseded to 698292A)

$

$

Not available

36

Homelite 51163

MOUNT- Shock (bracket)

$

$

Not available

37

Homelite 804281

SCREW- Nylock (1/4-20 x 1")
(Superseded to UP06828)

$

$

Not available

38

Homelite A49927

HANDLE BAR

$

$

Not available

39

Homelite 80939

SCREW- Pan hd.
(Superseded to 82600)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 95935

WASHER

$

$

Not available

41

Homelite 81225

NUT- Hex (12-24)

$

$

Not available

42

Homelite A01846

CRANKCASE
(Superseded to A01846A)

$352.99

$

Usually ships in 3-7 days

0

43

Homelite 93628

COVER- Clutch

$

$

Not available

44

Homelite 69461

SHOE- Clutch

$

$

Not available

45

Homelite 67053

SPRING- Clutch

$

$

Not available

46

Homelite 657601B

PLATE- Clutch

$

$

Not available

47

Homelite 58833

WASHER

$

$

Not available

48

Homelite A49224

PULLEY- Bearing & Arm

$

$

Not available

49

Homelite 51151

BEARING- Needle

$

$

Not available

50

Homelite A97901A

INNER RACE KIT

$

$

Currently unavailable

51

Homelite 84027

WASHER- Flat

$

$

Not available

52

Homelite JA444718

NUT- Hex

$

$

Not available
