XL 98 D (UT-05049) - Homelite Multi Purpose Saw Engine Internals Parts Diagram

Multi Purpose Saw

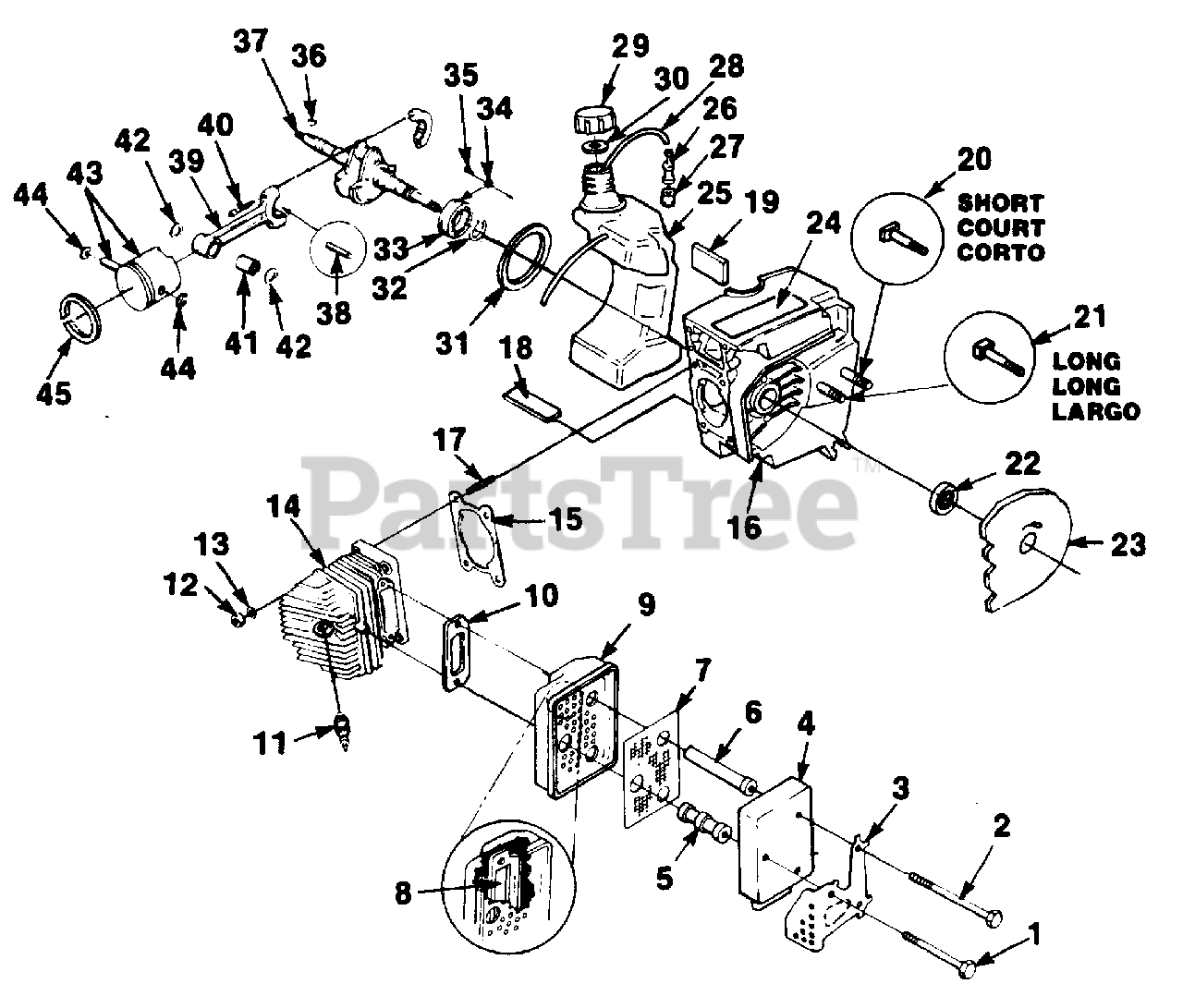

Engine Internals Parts Diagram

  • Title
1

Homelite 95885

SCREW- Hex hd.

$

$

Not available

2

Homelite 82280

SCREW- Hex hd. (1/4-20 x 3")

$

$

Not available

3

Homelite 69842

SHIELD- Muffler

$

$

Not available

4

Homelite A698361

CAP- Muffler

$

$

Not available

5

Homelite 69844

SUPPORT- Short

$

$

Not available

6

Homelite 69843

SUPPORT- Long

$

$

Not available

7

Homelite A93900A

SCREEN- Spark arrestor

$

$

Currently unavailable

8

Homelite 69839

PLATE- Muffler

$

$

Not available

9

Homelite A698381

BODY- Muffler

$

$

Not available

10

Homelite 78098

GASKET- Muffler

$

$

Not available

11

Homelite 93561S

SPARK PLUG
(Superseded to D93561)

$

$

Not available

12

Homelite 96212

NUT- (1/4-28 x 3/8")

$

$

Not available

13

Homelite 83009

WASHER- Lock

$8.49

$

Usually ships in 3-7 days

0

14

Homelite A42206B

CYLINDER

$

$

Currently unavailable

15

Homelite 637781

GASKET- Cylinder

$

$

Not available

16

Homelite A01846

CRANKCASE
(Superseded to A01846A)

$352.99

$

Usually ships in 3-7 days

0

17

Homelite 69438

STUD- Cylinder
(Superseded to 96127)

$7.49

$

Usually ships in 3-7 days

0

18

Homelite 03027

SPACER- Fuel tank

$

$

Not available

19

Homelite 03026A

SPACER- Fuel tank

$

$

Currently unavailable

20

Homelite 67807

BOLT- (3/8-16 x 2 1/8")

$

$

Not available

21

Homelite 47948

BOLT- (3/8-16 x 2 11/32")
(Superseded to UP07169)

$

$

Not available

22

$

$

Not available

23

Homelite A64715

SAW DUST SHIELD
(Superseded to 64156A)

$

$

Not available

24

Homelite 46788

DECAL- Instruction/Warning
(Superseded to 46788A)

$7.49

$

Usually ships in 3-7 days

0

25

Homelite A03498

FUEL TANK

$

$

Currently unavailable

26

Homelite A97700

FILTER- Fuel
(Superseded to UP06516)

$

$

Not available

27

Homelite 592531A

ELEMENT- Filter

$11.99

$

Usually ships in 3-7 days

0

28

Homelite 9311252

TUBING- Rubber (13")

$

$

Currently unavailable

29

Homelite A00982

CAP- Fuel

$

$

Currently unavailable

30

Homelite 98805

GASKET- Fuel cap
(Superseded to UP07294)

$

$

Not available

31

Homelite 67559

"O" RING

$

$

Not available

32

Homelite 58319A

RING- Retaining

$

$

Not available

33

Homelite 58190

BEARING- Ball

$

$

Not available

34

Homelite 59705

WASHER- Lock

$

$

Not available

35

Homelite 70306

SCREW- Torx (10-32)

$

$

Not available

36

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

37

Homelite 671684

CRANKSHAFT

$

$

Not available

38

Homelite A69056

BEARING- Needle

$

$

Currently unavailable

39

Homelite A69658A

ROD- Connecting

$

$

Currently unavailable

40

Homelite 69919

SCREW- Hex hd. (8/32 x 1/2")

$

$

Not available

41

Homelite 69638A

BEARING

$

$

Not available

42

$

$

Not available

43

Homelite A49314

PISTON & PIN ASSY.

$

$

Not available

44

Homelite 64742

RING- Retaining

$

$

Not available

45

Homelite 55537

PISTON RING

$22.99

$

Usually ships in 3-7 days

0
