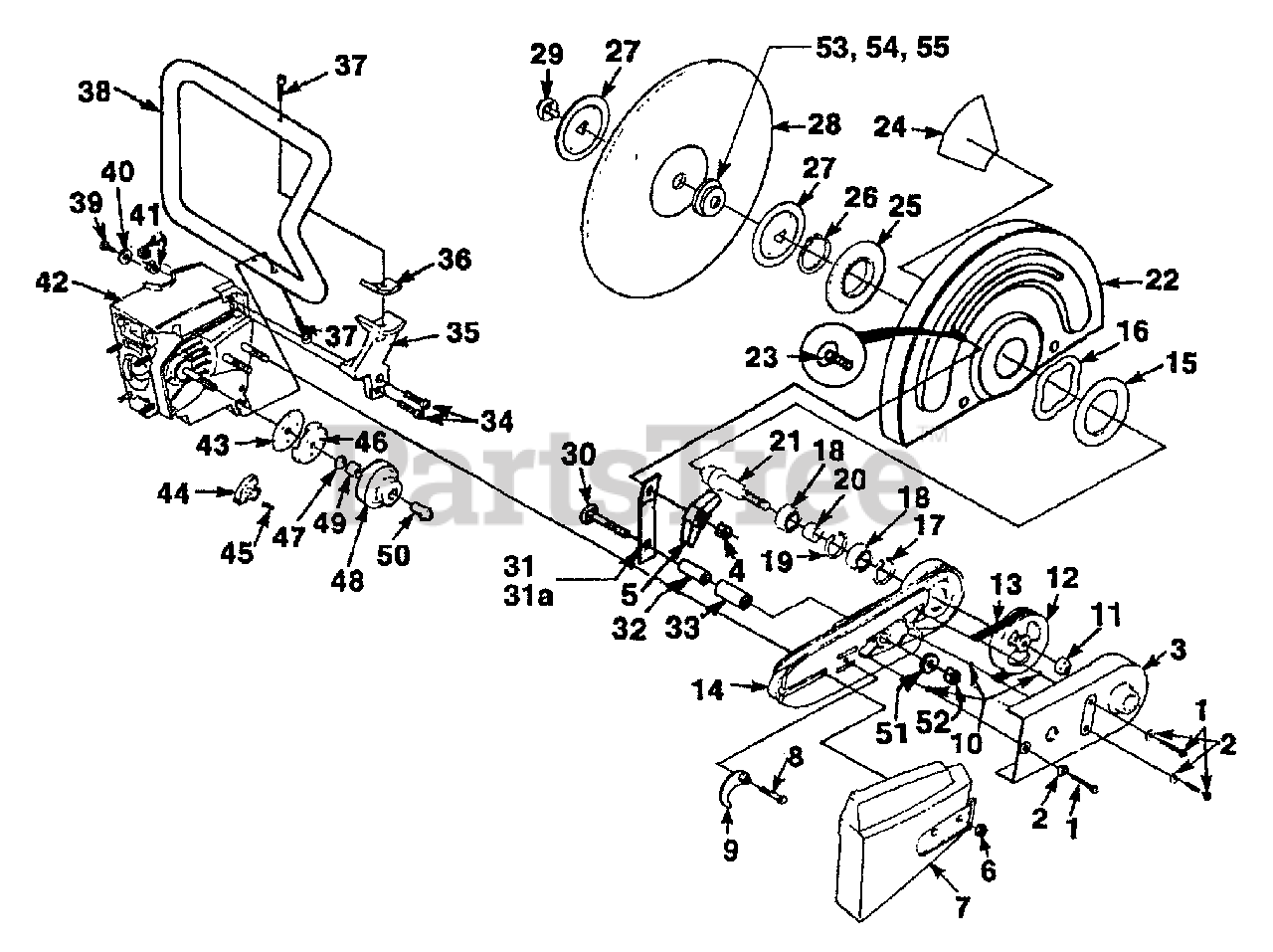

XL 98 D (UT-05049-B) - Homelite Multi Purpose Saw Handle, Arm Assembly & Clutch Parts Diagram

Multi Purpose Saw

Handle, Arm Assembly & Clutch Parts Diagram

  • Title

1

Homelite 94143

SCREW-Slotted (1/4-20 X 1 1/2")

$

$

Not available

2

Homelite 84026

WASHER-Flat

$

$

Not available

3

Homelite 43966C

COVER-Arm

$

$

Not available

4

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

5

Homelite 06364

KNOB-Handle
(Superseded to UP04132)

$

$

Not available

6

Homelite 810892

NUT-Hex (10-24)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 535795A

COVER-Drivecase
(Superseded to 535795)

$

$

Not available

8

Homelite 80087

SCREW-Hex hd. (5/16-18 X 1 1/2")

$

$

Not available

9

Homelite A49194

CAM & ADJUSTER
(Superseded to UP03371)

$18.99

$

Usually ships in 3-7 days

0

10

Homelite 46462

"O" RING

$

$

Not available

11

Homelite 81245

NUT-Hex (1/2-13)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite A03233

PULLEY-Drive
(Superseded to UP05842)

$

$

Not available

13

Homelite 46068

BELT-"V" Drive
(Superseded to UP06392)

$

$

Not available

14

Homelite A49558

ARM-Wheel

$

$

Currently unavailable

15

Homelite 47387

SHIM

$

$

Not available

16

Homelite 47388

SPRING-Wave

$

$

Not available

17

Homelite 31746

RING-Retaining
(Superseded to UP06391)

$

$

Not available

18

Homelite 63107

BEARING-Ball

$

$

Not available

19

Homelite 47207

RING-Retaining

$

$

Not available

20

Homelite 46067

SPACER-Bearing

$

$

Not available

21

Homelite 01905A

SHAFT-Wheel
(Superseded to UP06355)

$91.99

$

Usually ships in 3-7 days

0

22

Homelite A01872B

WHEEL GUARD KIT (12")
(Superseded to A49429D)

$

$

Not available

Homelite A01873A

GUARD-Wheel (14")
(Superseded to UP07142)

$

$

Not available

23

Homelite 82519A

BOLT-Step (5/16-18 X 3/4")
(Superseded to UP06533)

$

$

Not available

24

Homelite 48922A

LABEL-Caution

$

$

Not available

25

Homelite 46000

WASHER-Mounting

$

$

Not available

26

Homelite 46065

RING-Retaining

$

$

Not available

27

Homelite 019091

FLANGE-Wheel
(Superseded to UP06358)

$

$

Not available

28

Homelite 64596BS

WHEEL-Resinoid (12")
(Superseded to 64596C)

Note: See "Accessories" parts list.

$

$

Not available

28

Homelite 49559

WHEEL-Resinoid (14")

$26.99

$

Usually ships in 3-7 days

0

29

Homelite A48783A

KIT-Screw, Washer, Ret. Ring

$

$

Not available

30

Homelite 82534

BOLT-Step (3 1/2")

$

$

Not available

31

Homelite 028391

ARM-Adjusting (12")

$

$

Not available

31A

Homelite 498171

ARM-Adjusting (14")

$

$

Not available

32

Homelite 49819A

SKIRT-Rubber

$

$

Currently unavailable

33

Homelite 49553A

TUBING-Rubber

$

$

Not available

34

Homelite 80891

SCREW-Hex hd. (12-24 X 7/8")

$

$

Not available

35

Homelite 698292

BRACKET-Handle bar
(Superseded to 698292A)

$

$

Not available

36

Homelite 51163

MOUNT-Shock (bracket)

$

$

Not available

37

Homelite 804281

SCREW-Nylock (1/4-20 X 1")
(Superseded to UP06828)

$

$

Not available

38

Homelite A49927

HANDLE BAR

$

$

Not available

39

Homelite 80939

SCREW-Pan hd.
(Superseded to 82600)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 95935

WASHER

$

$

Not available

41

Homelite 81225

NUT-Hex (12-24)

$

$

Not available

42

Homelite A01846A

CRANKCASE

$352.99

$

Usually ships in 3-7 days

0

43

Homelite 93628

COVER-Clutch

$

$

Not available

44

Homelite A69480C

CLUTCH ASSEMBLY

$

$

Not available

45

Homelite 67053

SPRING-Clutch

$

$

Not available

46

Homelite 657601B

PLATE-Clutch

$

$

Not available

47

Homelite 59933

WASHER-Thrust (Inner)

$

$

Currently unavailable

48

Homelite A49224

PULLEY-Bearing & Arm

$

$

Not available

49

Homelite 51151

BEARING-Needle

$

$

Not available

50

Homelite A97901A

INNER RACE KIT

$

$

Currently unavailable

51

Homelite 84027

WASHER-Flat

$

$

Not available

52

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

53

Homelite 01902

SPACER-1" Dia.
(Superseded to UP05608)

$

$

Not available

54

Homelite 01903

SPACER-22mm Dia.

$

$

Not available

55

Homelite 01907

SPACER-20mm Dia.
(Superseded to UP05609)

$

$

Not available
