XL 98 D (UT-05049-B) - Homelite Multi Purpose Saw Carburetor, Air Cleaner & Throttle Handle Parts Diagram

Multi Purpose Saw

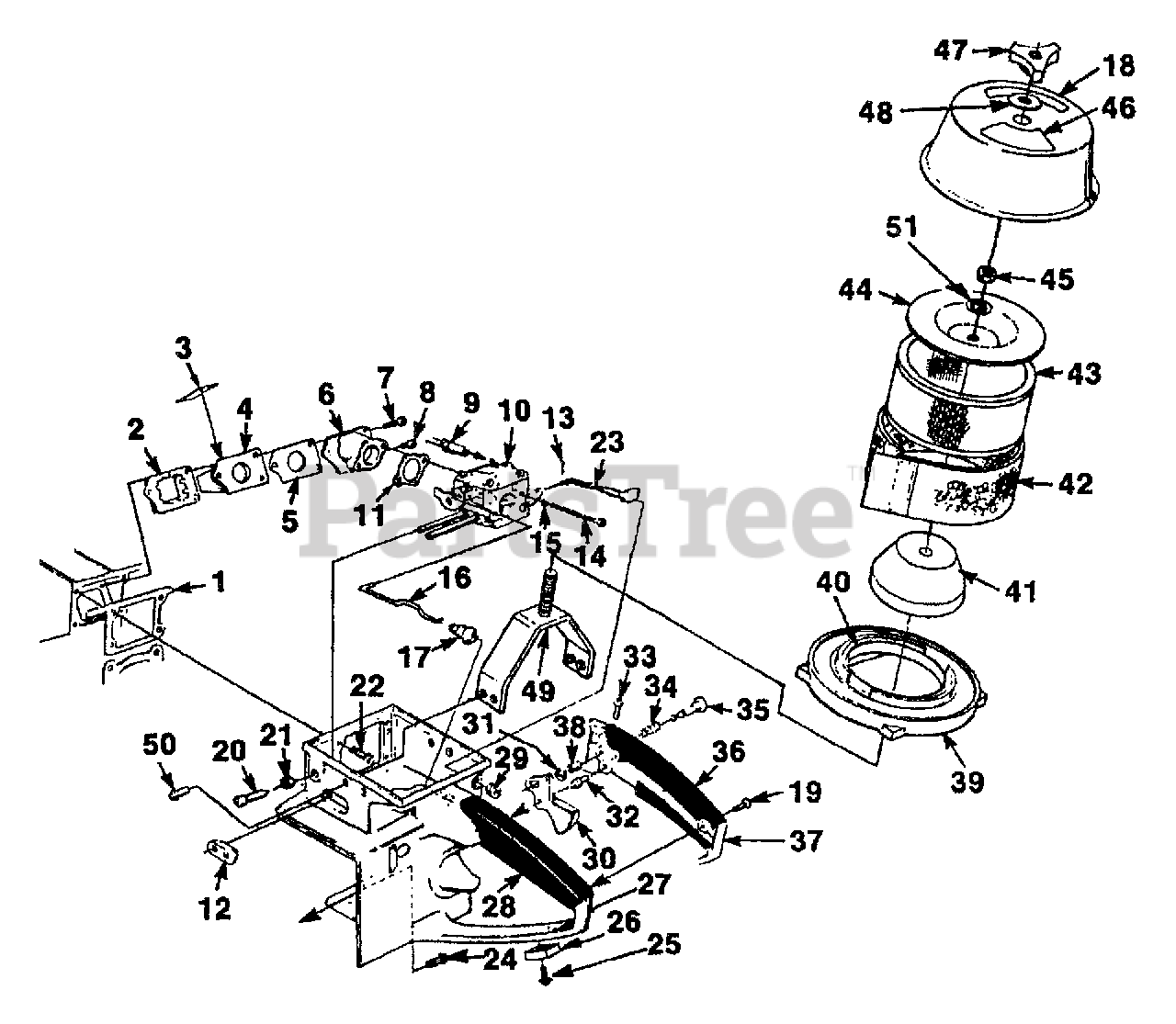

Carburetor, Air Cleaner & Throttle Handle Parts Diagram

  • Title

1

Homelite 63779C

GASKET

$

$

Not available

2

Homelite 63370A

RETAINER-Reed

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 63166A

REED-Valve

$6.49

$

In Stock, only 2 left!

0

4

Homelite 463371B

SEAT-Reed Valve

$

$

Currently unavailable

5

Homelite 65483

GASKET

$

$

Not available

6

Homelite A674601

SPACER-Carburetor

$

$

Currently unavailable

7

Homelite 82570

SCREW-(8-32 X 1 1/4")

$

$

Not available

8

Homelite 82540

SCREW-Thread form. (8-32 X 1 1/4")

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 9311252

FUEL LINE

$

$

Currently unavailable

10

Homelite A07156

CARBURETOR

$

$

Currently unavailable

11

Homelite 67540

GASKET

$

$

Not available

12

Homelite 69751

GROMMET

$

$

Not available

13

Homelite 86324

COTTER PIN

$

$

Not available

14

Homelite 82179

SCREW-(10-32 X 1 7/8")

$

$

Not available

15

Homelite 83046

WASHER-Lock

$

$

Not available

16

Homelite 63266A

ROD-Throttle

$

$

Currently unavailable

17

Homelite 58348

BOOT-Throttle Rod

$

$

Not available

18

Homelite 49263

DECAL-Instruction

$7.49

$

Usually ships in 3-7 days

0

19

Homelite 80560

SCREW-Pan hd, (8-32 X 1/2")

$

$

Not available

20

Homelite 63369A

SCREW-Idle Adjustment

$

$

Not available

21

Homelite 81117

NUT-Jam (5/16-24)

$2.49

$

In Stock, only 1 left!

0

22

Homelite 80676

SCREW-Hex hd. (12-24 X 5/8")

$

$

Not available

23

Homelite 672011

CHOKE ROD

$

$

Not available

24

Homelite 80891

SCREW-Hex hd. (12-24 X 7/8")

$

$

Not available

25

Homelite 88049

SCREW-(10-24 X 1/2")

$

$

Not available

26

Homelite 496861

PAD-Wear

$

$

Currently unavailable

27

Homelite A01845

HANDLE-Throttle
(Superseded to A01845A)

$

$

Currently unavailable

28

Homelite 68767

GRIP-Throttle Handle

$

$

Not available

29

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

30

Homelite 65745

TRIGGER

$

$

Not available

31

Homelite 58409

RING-Retaining

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 65719

PIN

$

$

Not available

33

Homelite 800232

SCREW-(8-32 X 5/8")

$

$

Not available

34

Homelite 58405

SPRING-Throttle lock

$

$

Not available

35

Homelite 95671

PIN-Throttle
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 68768

GRIP-Throttle Handle

$

$

Not available

37

Homelite A69045

COVER-Throttle Handle

$

$

Not available

38

Homelite 59064

BUSHING

$

$

Not available

Homelite A49556C

AIR FILTER KIT

$

$

Currently unavailable

39

Homelite A50952B

RING & GASKET ASSY.

$

$

Currently unavailable

40

Homelite 50951

GASKET

$

$

Not available

41

Homelite 49786

FILTER-Air

$21.99

$

Usually ships in 3-7 days

0

42

Homelite 49213

PRE FILTER-Felt

$29.99

$

Usually ships in 3-7 days

0

43

Homelite 54620B

ELEMENT-Air Filter

$

$

Not available

44

Homelite 49212

COVER-Filter Element

$

$

Not available

45

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

46

Homelite A49687

DECAL-Warning

$

$

Currently unavailable

47

Homelite 06365

KNOB-Handle

$

$

Not available

48

Homelite 02762A

GASKET
(Superseded to UP07434)

$

$

Not available

49

Homelite A03498

BRACKET-Cover

$

$

Currently unavailable

50

Homelite 03498

SCREW

$

$

Currently unavailable

51

Homelite 46072

GASKET

$

$

Not available
