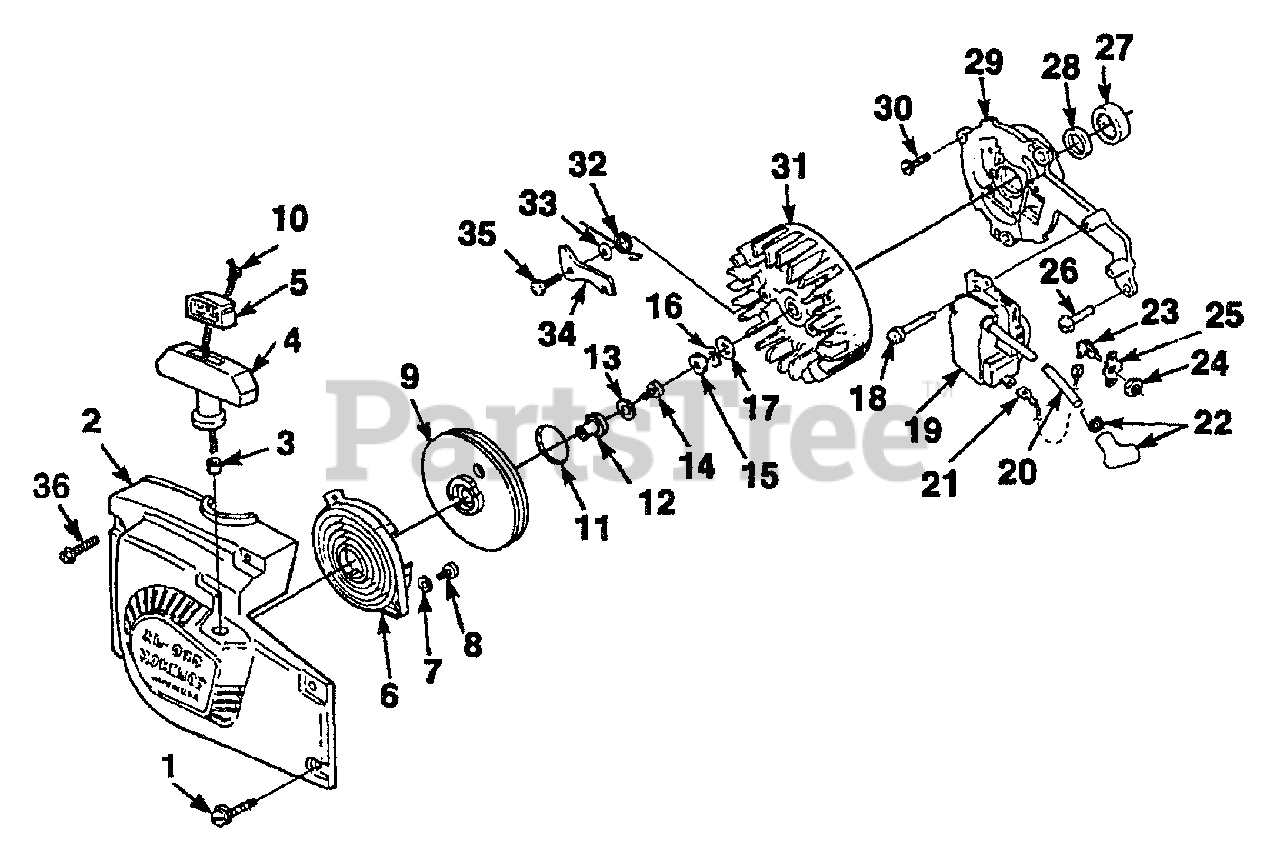

XL 98 D (UT-05049-A) - Homelite Multi Purpose Saw Starter Parts Diagram

Multi Purpose Saw

Starter Parts Diagram

  • Title

1

Homelite 825551

SCREW-Th. Hd. (10-24 X 3/4") Torx (T25)
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

Homelite A02780C

Starter Assembly Complete

$

$

Currently unavailable

2

Homelite A03619A

HOUSING-Starter w/bushing

Note: Assembly

$

$

Not available

3

Homelite 67177

BUSHING

$

$

Not available

4

Homelite A69962B

GRIP-Starter

Note: Assembly

$19.99

$

Usually ships in 3-7 days

0

5

Homelite 70018A

INSERT

$

$

Not available

6

Homelite A98067

SPRING & RETAINER
(Superseded to A98067A)

$42.99

$

Usually ships in 3-7 days

0

7

Homelite 84025

WASHER-Flat

$

$

Not available

8

Homelite 82528

SCREW-Thd. Form. (6-32 X 3/8")

$2.49

$

Usually ships in 3-7 days

0

9

Homelite A97990C

PULLY & CUP
(Superseded to UP07034)

Note: Assembly

$

$

Not available

10

Homelite A00518

STARTER ROPE
(Superseded to 93418)

$

$

Currently unavailable

11

Homelite 02525

SPRING-Grip

$

$

Currently unavailable

12

Homelite 97992A

BUSHING-Starter Rope
(Superseded to UP07218)

$

$

Not available

13

Homelite 58763

WASHER-Flat

$

$

Not available

14

Homelite 82409

SCREW-(10 7/8")

$

$

Not available

15

Homelite 81124A

NUT-Hex (3/8-24)

$

$

Not available

16

Homelite 83102

WASHER-Lock (3/8")

$

$

Not available

17

Homelite 84010

WASHER-Flat (3/8")
(Superseded to PS84010)

$

$

Not available

18

Homelite 88044

SCREW-Sems Hex hd. (8-32 X 1")

$

$

Not available

19

Homelite A96798A

MODULE-Ignition
(Superseded to A96798AS)

$

$

Not available

20

Homelite 96743

LEAD-High Tension

$

$

Not available

21

Homelite A94850

LEAD-Ground

$

$

Not available

22

Homelite A33055

TERMINAL-Spark Plug

$

$

Not available

23

Homelite A576503B

SWITCH-Grounding

$

$

Not available

24

Homelite 72084A1

NUT
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 12793A

PLATE-Indicating
(Superseded to UP07113)

$

$

Not available

26

Homelite 80052

SCREW-Sems Hex Hd. (1/4-20 X 3/4")

$

$

Not available

27

Homelite 63195

BEARING-Roller

$

$

Not available

28

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

29

Homelite A96799A

PLATE-Back

$

$

Not available

30

Homelite 80049

SCREW-(1/4-20 X 5/8")

$

$

Not available

31

Homelite 96801A

ROTOR

$

$

Not available

32

Homelite 01101

SPRING-Starter Pawl

$

$

Not available

33

Homelite 84115

WASHER-Flat
(Superseded to 588512)

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 58756A

STARTER PAWL

$

$

Currently unavailable

35

Homelite 64054C

SCREW-Shoulder

$

$

Not available

36

Homelite 96176

SCREW-Th. Hd. (10-24 X 1.625) Torx (T25)

$

$

Not available
