XL 98 D (UT-05049-A) - Homelite Multi Purpose Saw Engine Internal, Fuel Tank & Muffler Parts Diagram

Multi Purpose Saw

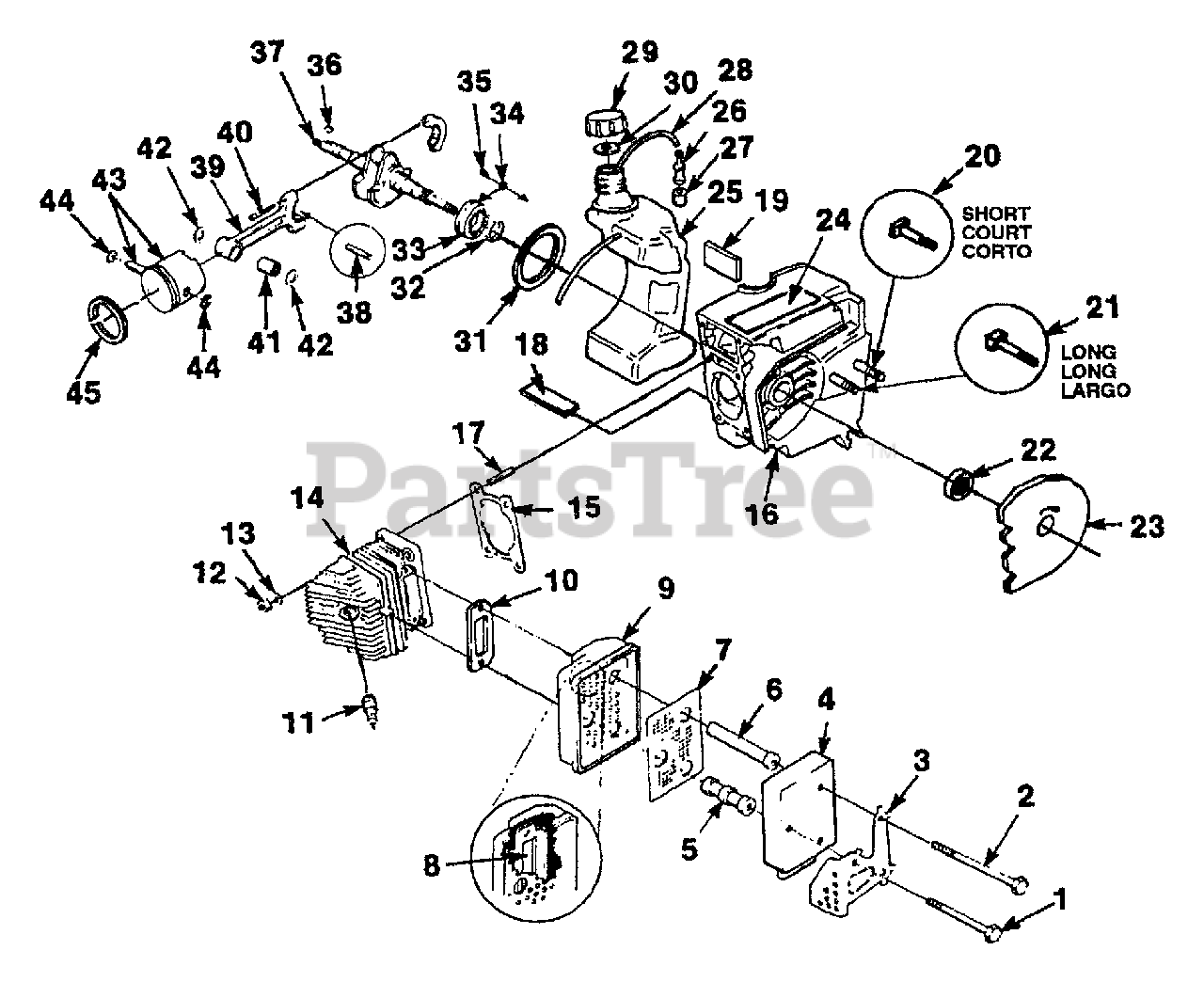

Engine Internal, Fuel Tank & Muffler Parts Diagram

  • Title

Homelite A69864C

COMPLETE MUFFLER

$

$

Currently unavailable

1

Homelite 95885

SCREW-Hex Hd.

$

$

Not available

2

Homelite 82280

SCREW-Hex Hd. (1/4-20 X 3")

$

$

Not available

3

Homelite 69842

SHIELD- Muffler

$

$

Not available

4

Homelite A698361

CAP- Muffler

$

$

Not available

5

Homelite 69844

SUPPORT-Short

$

$

Not available

6

Homelite 69843

SUPPORT-Long

$

$

Not available

7

Homelite A93900A

SCREEN-Spark Arrestor

$

$

Currently unavailable

8

Homelite 69839

PLATE-Muffler

$

$

Not available

9

Homelite A698381

BODY- Muffler

$

$

Not available

10

Homelite 78098

GASKET-Muffler

$

$

Not available

11

Homelite 93561S

SPARK PLUG
(Superseded to D93561)

$

$

Not available

12

Homelite 96212

NUT-(1/4-28 X 3/8")

$

$

Not available

13

Homelite 83009

WASHER- Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

14

Homelite A42206B

CYLINDER

$

$

Currently unavailable

15

Homelite 637781

GASKET-Cylinder

$

$

Not available

16

Homelite A01846

CRANKCASE
(Superseded to A01846A)

$352.99

$

Usually ships in 3-7 days

0

17

Homelite 69438

STUD-Cylinder
(Superseded to 96127)

$7.49

$

Usually ships in 3-7 days

0

18

Homelite 03027

SPACER-Fuel Tank

$

$

Not available

19

Homelite 03026A

SPACER-Fuel Tank

$

$

Currently unavailable

20

Homelite 67807

BOLT-(3/8-16 X 2 1/8")

$

$

Not available

21

Homelite 93918A

BOLT-(3/8-16 X 2 11/32")
(Superseded to UP07169)

$

$

Not available

22

$

$

Not available

23

Homelite 64156A

SAW DUST SHIELD

$

$

Not available

24

Homelite 46788A

DECAL-Instruction/Warning

$

$

Currently unavailable

25

Homelite A03498A

FUEL TANK

$

$

Not available

26

Homelite A97700

FILTER-Fuel
(Superseded to UP06516)

$

$

Not available

27

Homelite 592531A

ELEMENT-Filter

$11.99

$

Usually ships in 3-7 days

0

28

Homelite 931125B

TUBING-Rubber (13")

$

$

Currently unavailable

29

Homelite A00982B

CAP-Fuel
(Superseded to UP04111)

$

$

Not available

30

Homelite 98805A

GASKET-Fuel

$

$

Not available

31

Homelite 67559

"O" RING

$

$

Not available

32

Homelite 58319A

RING-Retaining

$

$

Not available

33

Homelite 58190

BEARING-Ball

$

$

Not available

34

Homelite 59705

WASHER-Lock

$

$

Not available

35

Homelite 70306

SCREW-Torx (10-32)

$

$

Not available

36

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

37

Homelite 671684

CRANKSHAFT

$

$

Not available

38

Homelite A69056

BEARING-Needle

$

$

Currently unavailable

39

Homelite A69658A

ROD-Connecting

$

$

Currently unavailable

40

Homelite 69919

SCREW-Hex Hd. (8/32 X 1/2")

$

$

Not available

41

Homelite 69638A

BEARING

$

$

Not available

42

$

$

Not available

43

Homelite A49314

PISTON & PIN ASSY.

$

$

Not available

44

Homelite 64742

RING-Retaining

$

$

Not available

45

Homelite 55537

PISTON RING

$22.99

$

Usually ships in 3-7 days

0
