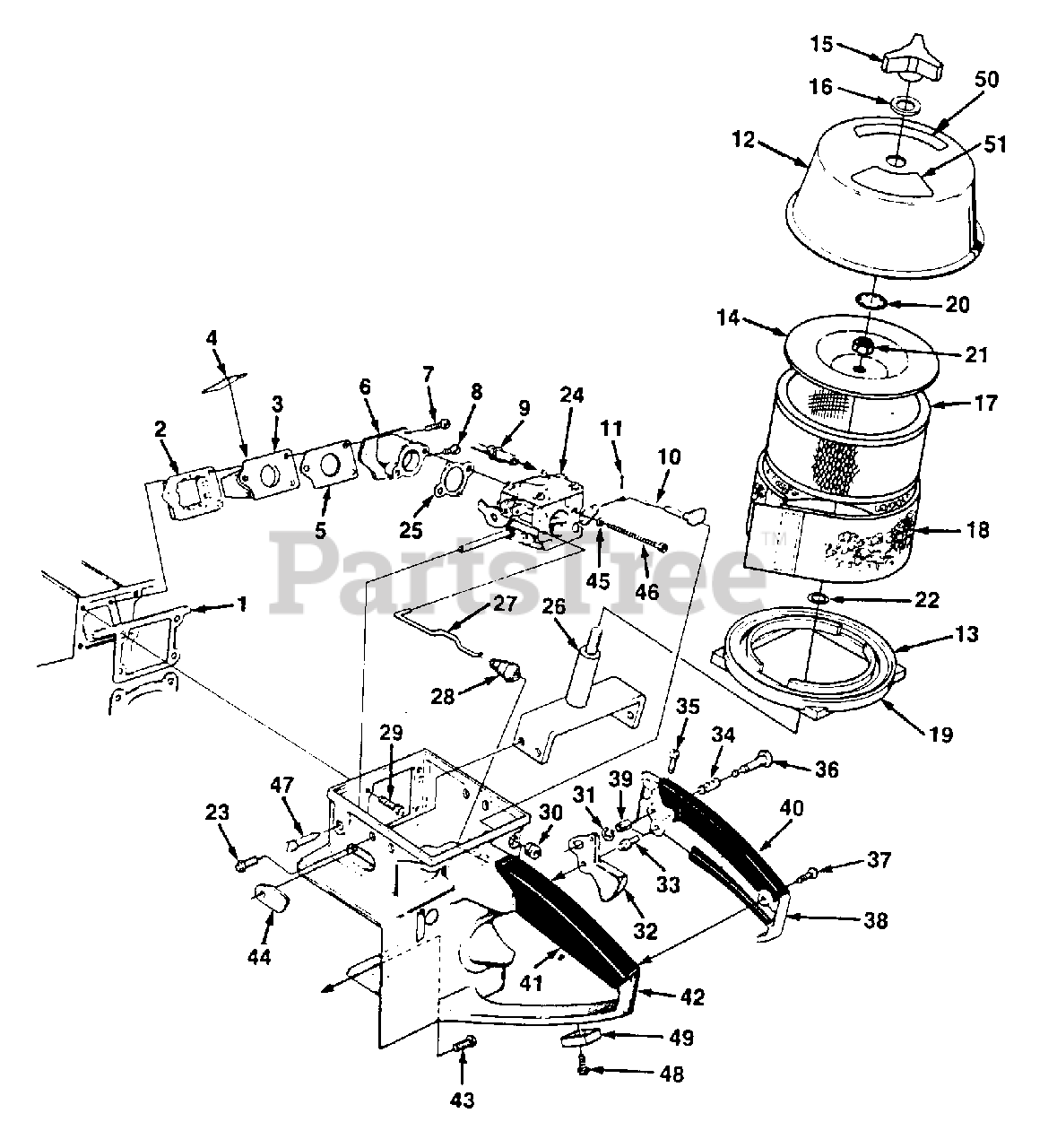

XL 98 C (UT-05037) - Homelite 14" Multi Purpose Saw Intake Parts Diagram

14" Multi Purpose Saw

Intake Parts Diagram

  • Title

1

Homelite 63779C

GASKET

$

$

Not available

2

Homelite 63370A

RETAINER-Reed

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 63371B

SEAT-Reed valve

$

$

Not available

4

Homelite 63166A

REED-Valve

$6.49

$

In Stock, only 2 left!

0

5

Homelite 65483

GASKET

$

$

Not available

6

Homelite A674601

SPACER-Carburetor

$

$

Currently unavailable

7

Homelite 82174

SCREW-Pan hd. 8-32 x 1 1/4
(Superseded to 82570)

$

$

Not available

8

Homelite 82173

SCREW-Pan hd. (8-32 x 1")
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 65718B

FUEL LINE
(Superseded to UP05995)

$

$

Not available

10

Homelite 672011

CHOKE ROD

$

$

Not available

11

Homelite 86324

COTTER PIN

Note: Includes Items 12 - 23.

$

$

Not available

Homelite A-49556

AIR FILTER KIT

$

$

Currently unavailable

12

Homelite A491421

AIR FILTER COVER

Note: Includes Item 13.

$

$

Currently unavailable

13

Homelite 50951

GASKET

$

$

Not available

14

Homelite 49212

COVER-Filter Element

$

$

Not available

15

Homelite 46076

KNOB-Cover
(Superseded to 06365)

$

$

Not available

16

Homelite 98698

WASHER

$

$

Not available

17

Homelite 54620B

FILTER ELEMENT-Air

$

$

Not available

18

Homelite 49213

PRE FILTER-Felt

$29.99

$

Usually ships in 3-7 days

0

19

Homelite A50952A

RING & GASKET ASSEMBLY

Note: Includes Item 13.

$

$

Currently unavailable

Homelite 50951

GASKET

Note: (Ref. #13)

$

$

Not available

20

Homelite 46072

RING-Retaining

$

$

Not available

21

Homelite 81162

NUT-Hex 5/16-18

$

$

Not available

22

Homelite 49435

WASHER-Seal

$

$

Not available

23

Homelite 80575

SCREW-Pan hd. 8-32 x 1/4

$

$

Not available

24

Homelite A42208B

CARBURETOR

Note: Includes Item 25.

$

$

Currently unavailable

25

Homelite 67540

GASKET

$

$

Not available

26

Homelite A-49215

BRACKET-Cover

$

$

Currently unavailable

27

Homelite 63266A

ROD-Throttle

$

$

Currently unavailable

28

Homelite 58348

BOOT-Throttle rod

$

$

Not available

29

Homelite 80676

SCREW-Hex hd. 12-24 x 5/8

$

$

Not available

30

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

31

Homelite 58409

RING

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 65745

TRIGGER

$

$

Not available

33

Homelite 65719

PIN

$

$

Not available

34

Homelite 58405

SPRING

$

$

Not available

35

Homelite 800232

SCREW-8-32 x 5/8

$

$

Not available

36

Homelite 95671

PIN-Throttle
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 80560

SCREW-Pan hd. 8-32 x 1/2

$

$

Not available

38

Homelite A-69045

COVER-Throttle handle

Note: Includes Item 39.

$

$

Not available

39

Homelite 59064

BUSHING

$

$

Not available

40

Homelite 68768

GRIP-Throttle handle

$

$

Not available

41

Homelite 68767

GRIP-Throttle handle

$

$

Not available

42

Homelite A-47515

HANDLE-Throttle

Note: (XL98C-12")

$

$

Currently unavailable

Homelite A-49690

HANDLE-Throttle

Note: (XL98C-14")

$

$

Currently unavailable

43

Homelite 80891

SCREW-Hex hd. 12-24 x 7/8

$

$

Not available

44

Homelite 51144

GROMMET

$

$

Not available

45

Homelite 83046

WASHER-Lock #10

$

$

Not available

46

Homelite 82179

SCREW-10-32 x 1 7/8

$

$

Not available

47

Homelite 63369

SCREW-Idle adjustment
(Superseded to 63369A)

$

$

Not available

48

Homelite 88049

SCREW-10-24 x 1/2

$

$

Not available

49

Homelite 49686

PAD-Wear

$

$

Currently unavailable

50

Homelite 49263

DECAL-Instruction

$7.49

$

Usually ships in 3-7 days

0

51

Homelite 49687

DECAL-Warning

$

$

Not available
