XL 98 A (UT-05015) - Homelite Multi Purpose Saw Starter And Ignition Parts Diagram

Multi Purpose Saw

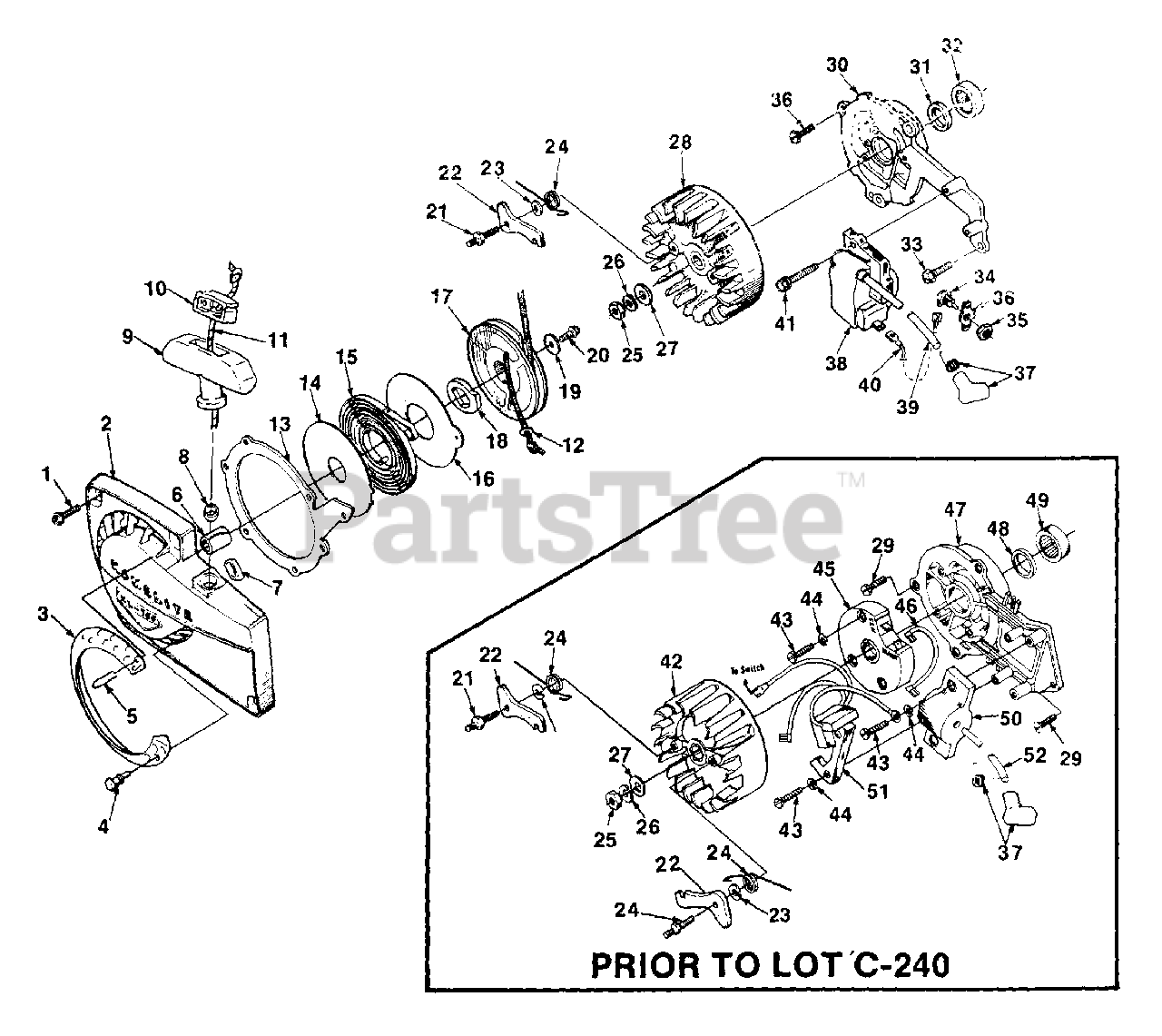

Starter And Ignition Parts Diagram

  • Title

1

Homelite 80676

SCREW-Hex hd. 12-24 x 5/8

$

$

Not available

2

Homelite A64504C

HOUSING-Starter
(Superseded to A02779)

Note: Includes items 3-8

$

$

Currently unavailable

3

Homelite A64421

KIT-Fan housing screen

Note: Includes items 4-8

$

$

Not available

4

Homelite 67191

STUD-Drive
(Superseded to 82498)

$

$

Not available

5

Homelite 64419

FASTENER

$

$

Currently unavailable

6

Homelite 64443

BUSHING

$

$

Not available

7

Homelite 65830

BUSHING

$

$

Not available

8

Homelite 67177

BUSHING

$

$

Not available

9

Homelite A69962B

GRIP-Starter

Note: Includes item 10

$19.99

$

Usually ships in 3-7 days

0

10

Homelite 70018A

INSERT

$

$

Not available

11

Homelite A93875

ROPE-Starter (48", #5)
(Superseded to 570841)

Note: Includes item 12

$

$

Not available

12

Homelite 93862

WASHER

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 67409

RING-Air flow

Note: (Prior to Lot #7045)

$

$

Currently unavailable

14

Homelite 63566

SHIELD

$

$

Not available

15

Homelite 63268A

SPRING

$

$

Not available

16

Homelite 63565A

SHIELD

$

$

Currently unavailable

17

Homelite A64446

PULLEY & CUP

Note: Includes item 18

$

$

Currently unavailable

18

Homelite 94827

LOCK-Spring
(Superseded to UP07445)

$

$

Not available

19

Homelite 58763

WASHER

$

$

Not available

20

Homelite 80648

SCREW-Hex hd. 10-32 x 1/2

$

$

Not available

21

Homelite 58757E

STUD-Starter pawl

$

$

Not available

22

Homelite 58756

STARTER PAWL
(Superseded to UP06426)

$16.99

$

Usually ships in 3-7 days

0

23

Homelite 70901

WASHER-Lock

$

$

Not available

24

Homelite 653752

SPRING
(Superseded to UP06351)

$

$

Not available

25

Homelite 81124

NUT-Hex 3/8-24
(Superseded to UP03884)

$

$

Not available

26

Homelite 83102

WASHER-Lock 3/8

$

$

Not available

27

Homelite 84010

WASHER-Flat 3/8
(Superseded to PS84010)

$

$

Not available

28

Homelite 96801

ROTOR-Magneto
(Superseded to 96801A)

Note: (After Lot #C-240)

$

$

Not available

29

Homelite 80048

SCREW-Hex 1/4-20 x 5/8
(Superseded to UP03380)

$

$

Not available

30

Homelite A96799A

PLATE-Back

Note: (After Lot #C-240). Includes items 31-33

$

$

Not available

31

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

32

Homelite 63195

BEARING

$

$

Not available

33

Homelite 802181

SCREW-Sems hex hd. 1/4-20 x 3/4
(Superseded to 80052)

Note: (After Lot #C240)

$

$

Not available

34

Homelite A576503A

SWITCH
(Superseded to A576503B)

Note: Includes items 35-37

$

$

Not available

35

Homelite 72084A1

NUT
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 12793A

PLATE-Indicating
(Superseded to UP07113)

$

$

Not available

37

Homelite A33055

TERMINAL-Spark plug

$

$

Not available

38

Homelite A96798A

MODULE-Ignition
(Superseded to A96798AS)

Note: (After Lot #C240). Includes items 39-46

$

$

Not available

39

Homelite 96743

LEAD-High tension

$

$

Not available

40

Homelite A94850

LEAD-Ground

Note: (After Lot #C240)

$

$

Not available

41

Homelite 88044

SCREW-Sems hex hd. 8-32 x 1

Note: (After Lot #C240)

$

$

Not available

42

Homelite 67165

ROTOR-Magneto

Note: (Prior to Lot #C240)

$

$

Not available

43

Homelite 82178

SCREW-Mach. hd. 8-32 x 3/4

Note: (Prior to Lot #C240)

$

$

Not available

44

Homelite 83022

WASHER
(Superseded to UP03410)

Note: (Prior to Lot #C240)

$

$

Not available

45

Homelite 67162

MODULE

Note: (Prior to Lot #C240)

$

$

Not available

46

Homelite 67167

LEAD-Transformer

Note: (Prior to Lot #C240)

$

$

Not available

47

Homelite A67618A

PLATE-Back

Note: (Prior to Lot #C240). Includes items 48-52

$

$

Currently unavailable

48

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

49

Homelite 63195

BEARING-Roller

$

$

Not available

50

Homelite 67164A

COIL-Transformer
(Superseded to A02480)

Note: (Prior to Lot #C240)

$

$

Currently unavailable

51

Homelite 67163

COIL & CORE

Note: (Prior to Lot #C240)

$

$

Not available

52

Homelite 67166

LEAD-High tension

Note: (Prior to Lot #C240)

$

$

Not available
