XL 98 A (UT-05015) - Homelite Multi Purpose Saw Engine Internals, Muffler, Fuel Tank Parts Diagram

Multi Purpose Saw

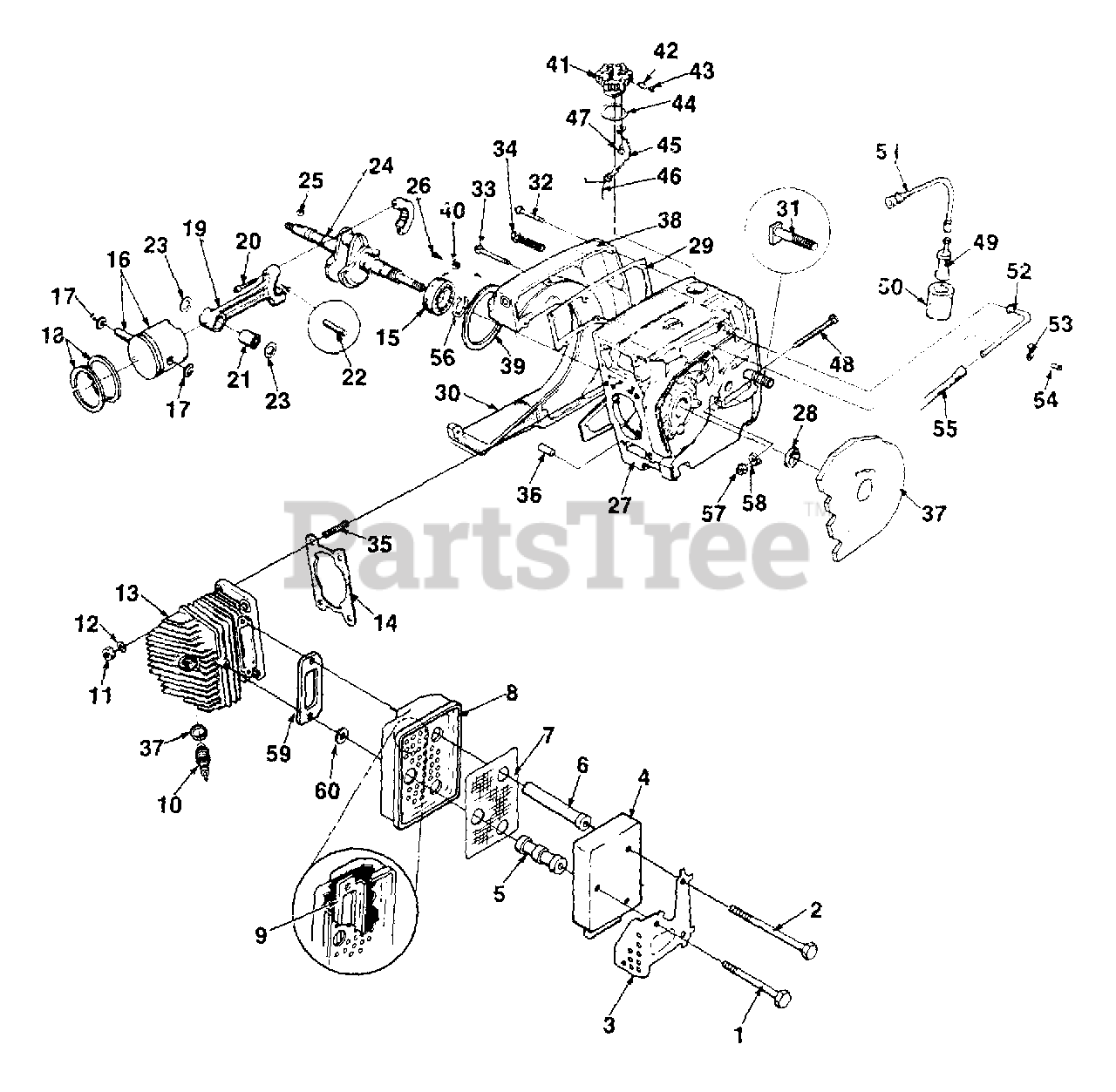

Engine Internals, Muffler, Fuel Tank Parts Diagram

  • Title

Homelite A69864C

MUFFLER KIT (Complete)

Note: Includes items 1-9

$

$

Currently unavailable

1

Homelite 95885

SCREW

$

$

Not available

2

Homelite 82280

SCREW-Hex hd. 1/4-20 x 3

$

$

Not available

3

Homelite 69842

SHIELD-Muffler

$

$

Not available

4

Homelite A698361

CAP-Muffler

$

$

Not available

5

Homelite 69844

SUPPORT-Short

$

$

Not available

6

Homelite 69843

SUPPORT-Long

$

$

Not available

7

Homelite A93900A

SCREEN-Spark arrestor

$

$

Currently unavailable

8

Homelite A69838A

BODY-Muffler

$

$

Currently unavailable

9

Homelite 69839

PLATE-Muffler

$

$

Not available

10

Homelite 93561S

SPARK PLUG
(Superseded to D93561)

Note: (After Lot #C240)

$

$

Not available

Homelite 63547S

SPARK PLUG

Note: (Prior to Lot #C240)

$9.99

$

Usually ships in 3-7 days

0

Homelite 69027S

SPARK PLUG

Note: (Opt.). (Colder plug)

$

$

Not available

11

Homelite 96212

NUT 1/4-28

$

$

Not available

12

Homelite 83009

WASHER-Lock 1/4

$8.49

$

Usually ships in 3-7 days

0

13

Homelite A48807A

CYLINDER

Note: Includes item 14

$

$

Currently unavailable

14

Homelite 637781

GASKET-Cylinder

$

$

Not available

15

Homelite 58190S

BEARING
(Superseded to 58190)

$

$

Not available

16

Homelite A67989

PISTON & PIN ASSEMBLY
(Superseded to A49314)

Note: Includes items 17 and 18

$

$

Not available

17

Homelite 64742

PISTON PIN RETAINING RING

$

$

Not available

18

Homelite 55537

PISTON RING

$22.99

$

Usually ships in 3-7 days

0

19

Homelite A69658A

ROD-Connecting

Note: Includes items 20-21

$

$

Currently unavailable

20

Homelite 69919

SCREW

$

$

Not available

21

Homelite 69638

BEARING
(Superseded to 69638A)

$

$

Not available

22

Homelite A69056

BEARING-Needle

Note: (Set of 28)

$

$

Currently unavailable

23

Homelite 68010

WASHER

$

$

Not available

24

Homelite 671684

CRANKSHAFT

$

$

Not available

25

Homelite 75078

KEY
(Superseded to UP07068)

$

$

Not available

26

Homelite 70306

SCREW-Torx 10-32

$

$

Not available

27

Homelite A53625

CRANKCASE

Note: Includes items 28-38

$

$

Currently unavailable

28

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

29

Homelite 65391

GASKET-Oil cover

$

$

Not available

30

Homelite 671532

COVER-Fuel tank

$

$

Currently unavailable

31

Homelite 67807

BOLT

$

$

Not available

32

Homelite 82358

SCREW-Fil hd. 8-32 x 5/8

$

$

Not available

33

Homelite 82147

SCREW-Fil hd. 8-32 x 1 3/4

$

$

Not available

34

Homelite 95725

SCREW-Fil hd. 8-32 x 2 3/16

$

$

Not available

35

Homelite 55871

STUD-Cylinder
(Superseded to 96127A)

$10.99

$

Usually ships in 3-7 days

0

36

Homelite 63621

PIN-Dowel

$

$

Currently unavailable

37

Homelite A64715

SHIELD-Sawdust
(Superseded to 64156A)

$

$

Not available

38

Homelite 69847

LABEL-Warning

$

$

Not available

39

Homelite 67559

"O" RING

$

$

Not available

40

Homelite 59705

WASHER-Lock

$

$

Not available

41

Homelite A69500A

CAP-Fuel
(Superseded to UP06559)

Note: Includes items 42-47

$

$

Not available

42

Homelite 69451

VALVE-Check

$

$

Not available

43

Homelite 69454

FILTER

$

$

Not available

44

Homelite 69501

GASKET-Fuel cap

$

$

Not available

45

Homelite 69502

CHAIN

$

$

Not available

46

Homelite 96535

RETAINER-Cap

$

$

Not available

47

Homelite 82256A

SCREW

$

$

Not available

48

Homelite 63367

SCREW

$

$

Not available

49

Homelite A69923

FILTER-Fuel
(Superseded to UP06560)

Note: Includes item 50

$

$

Not available

50

Homelite 64083

FILTER ELEMENT

$

$

Not available

51

Homelite 65593A

FUEL LINE
(Superseded to UP06819)

$

$

Not available

52

Homelite 67080

CONNECTOR

$

$

Not available

53

Homelite 655971

CLAMP

$

$

Currently unavailable

54

Homelite 80605

SCREW-Pan hd 6-32 x 5/16

$

$

Not available

55

Homelite 65718B

FUEL LINE
(Superseded to UP05995)

$

$

Not available

56

Homelite 58319A

RING-Retaining

$

$

Not available

57

Homelite 81204

NUT-Hex 1/4-20

$5.99

$

Usually ships in 3-7 days

0

58

Homelite 93039

ADJUSTING PIN

$37.99

$

In Stock, only 1 left!

0

59

Homelite 78098

GASKET-Muffler

$

$

Not available

60

Homelite 84020

WASHER

$

$

Not available
