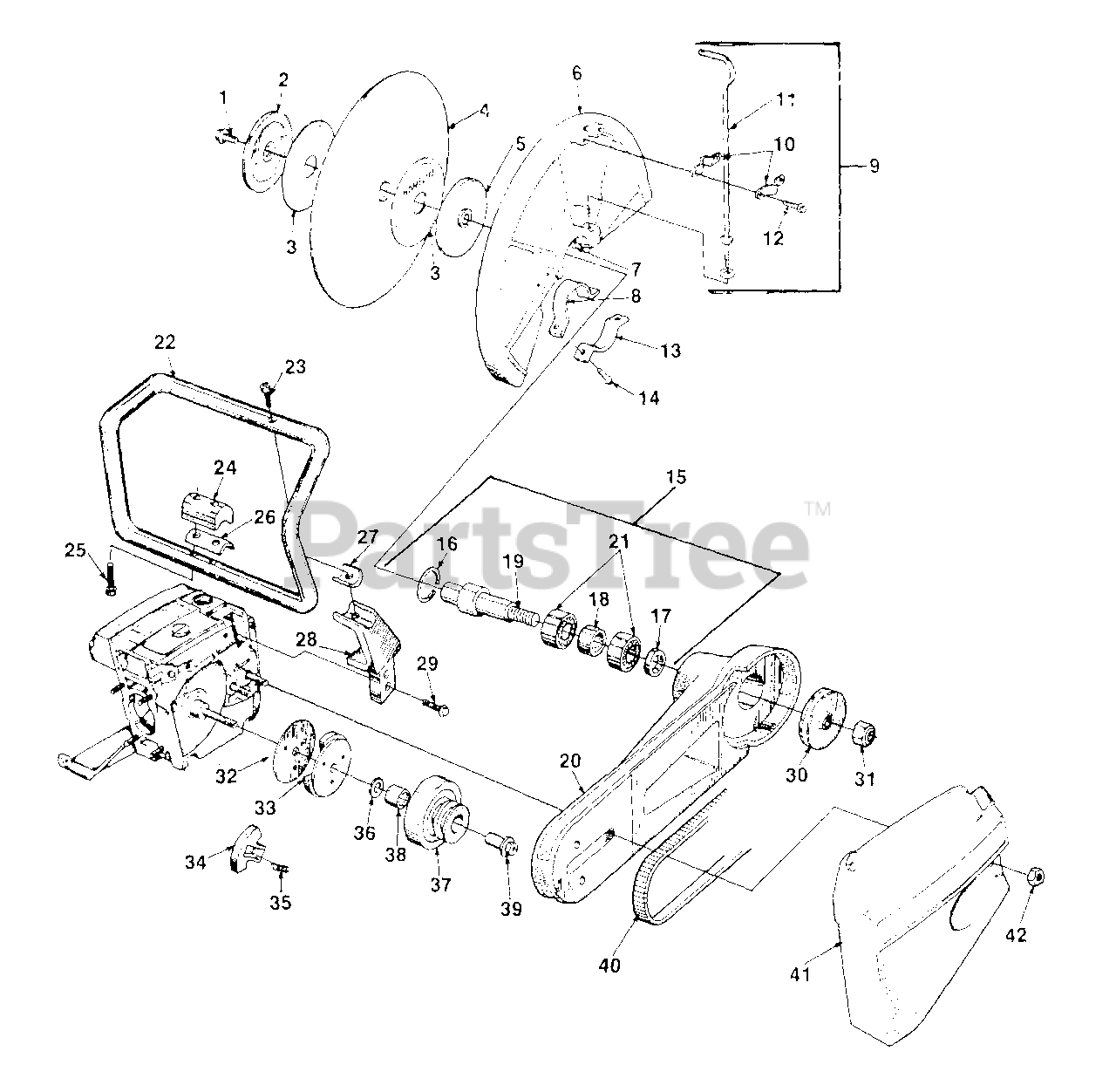

XL 98 A (UT-05015-A) - Homelite Multi Purpose Saw Blade Arm, Clutch & Handle Parts Diagram

Multi Purpose Saw

Blade Arm, Clutch & Handle Parts Diagram

  • Title
1

Homelite 59224

BOLT-Blade

$

$

Not available

2

Homelite 699702A

WASHER-Outer

$

$

Currently unavailable

3

Homelite 24174

SPACER-Blotter

$

$

Not available

4

Homelite 68421AS

WHEEL-Resinoid
(Superseded to 68421B)

Note: (Ductile). (Opt.)

$

$

Not available

Homelite 64597BS

WHEEL-Resinoid
(Superseded to 64597C)

Note: (Metal). (Opt.)

$

$

Not available

Homelite 64596BS

WHEEL-Resinoid
(Superseded to 64596C)

Note: (Masonry). (Std.)

$

$

Not available

Homelite 64595A

BLADE-Saw
(Superseded to 64595B)

Note: (carbide tip). (Opt.)

$

$

Currently unavailable

5

Homelite 699712

WASHER-Inner

$

$

Currently unavailable

6

Homelite A51251B

BLADE GUARD & SLEEVE

Note: Includes items 7-8

$

$

Currently unavailable

7

Homelite 43268

PIN-Spirol

$

$

Not available

8

Homelite 511982

SLEEVE-Blade guard

$

$

Not available

Homelite 48922

LABEL-Caution
(Superseded to 48922A)

Note: (Not shown)

$

$

Not available

9

Homelite A65564

HOOK BOLT & CLAMP ASSEMBLY

Note: Includes items 10 and 11

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Homelite A655521

BOLT-Hook

$

$

Currently unavailable

12

Homelite 806813

SCREW-1/4-20 x 1/2

$

$

Not available

13

Homelite 646511

CLAMP-Blade guard

$

$

Currently unavailable

14

Homelite 80573

SCREW-1/4-20 x 13/16

$

$

Not available

15

Homelite A43227

BLADE ARM KIT

Note: Includes items 16-21

$

$

Currently unavailable

16

Homelite 29527

RING-Retaining

$7.49

$

Usually ships in 3-7 days

0

17

Homelite 43209

SPACER-Pulley

$

$

Not available

18

Homelite 43210

SPACER-Inner

$

$

Currently unavailable

19

Homelite 43211

SHAFT-Blade

$

$

Not available

20

Homelite 432262

ARM-Blade

$

$

Currently unavailable

21

Homelite 63107

BEARING-Ball

$

$

Not available

22

Homelite A535734A

HANDLE BAR

$

$

Currently unavailable

23

Homelite 804281

SCREW-Nylock 1/4-20 x 1
(Superseded to UP06828)

$

$

Not available

24

$

$

Not available

25

Homelite 82242

SCREW-Nylock 1/4-20 x 1 7/8

$

$

Not available

26

Homelite 51162

MOUNT-Shock

$

$

Not available

27

Homelite 51163

MOUNT-Shock

$

$

Not available

28

Homelite 698292

BRACKET-Handle bar
(Superseded to 698292A)

$

$

Not available

29

Homelite 80867

SCREW-Hex hd. 12-24 x 3/4

$4.99

$

Usually ships in 3-7 days

0

30

Homelite 698271

PULLEY-Driven

$

$

Currently unavailable

31

Homelite 81231

NUT-Stop 7/16-14

$

$

Not available

32

Homelite 93628

COVER-Clutch

$

$

Not available

33

Homelite 657601B

PLATE-Clutch back

$

$

Not available

34

Homelite 69461

SHOE-Clutch

$

$

Not available

35

Homelite 67053

SPRING-Clutch

$

$

Not available

36

$

$

Not available

37

Homelite A97893

PULLEY-Bearing & Arm

Note: Includes item 38

$

$

Currently unavailable

38

Homelite 51151

BEARING

$

$

Not available

39

Homelite A97901

RACE-Inner bearing

$

$

Currently unavailable

40

Homelite 64498

BELT-Drive

$

$

Not available

41

Homelite 535792

COVER-Drivecase

$

$

Currently unavailable

42

Homelite 810892

NUT-3/8-16

$13.99

$

Usually ships in 3-7 days

0
