XL 98 A (UT-05015-A) - Homelite Multi Purpose Saw Air Cleaner, Carburetor, Throttle Handle Parts Diagram

Multi Purpose Saw

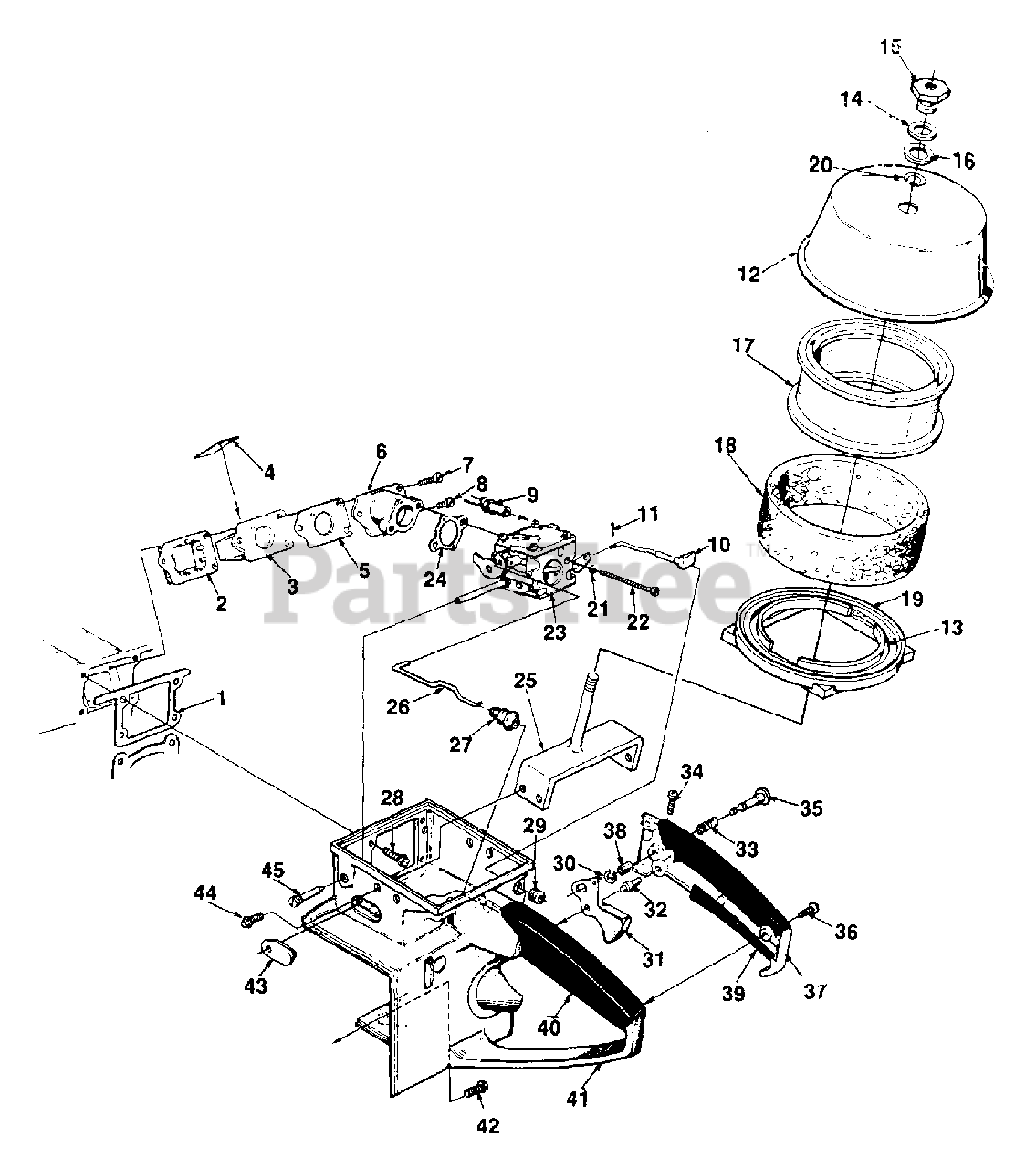

Air Cleaner, Carburetor, Throttle Handle Parts Diagram

  • Title
1

$

$

Not available

2

Homelite 63370A

RETAINER-Reed

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 63371B

SEAT-Reed valve

$

$

Not available

4

Homelite 63166A

REED-Valve

$6.49

$

In Stock, only 2 left!

0

5

$

$

Not available

6

Homelite A674601

SPACER-Carburetor

$

$

Currently unavailable

7

Homelite 82174

SCREW-Pan hd. 8-32 x 1 1/4
(Superseded to 82570)

$

$

Not available

8

Homelite 82173

SCREW-Pan hd. 8-32 x 1
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 65718B

FUEL LINE
(Superseded to UP05995)

$

$

Not available

10

Homelite 672011

CHOKE ROD

$

$

Not available

11

Homelite 86324

COTTER PIN

$

$

Not available

12

Homelite A50957A

AIR FILTER COVER

Note: Includes item 13

$

$

Currently unavailable

13

$

$

Not available

14

$

$

Not available

$

$

Currently unavailable

16

$

$

Not available

17

Homelite 54620B

FILTER ELEMENT-Air

$

$

Not available

18

Homelite 51173

FILTER ELEMENT-Air (Foam)
(Superseded to 49213)

$29.99

$

Usually ships in 3-7 days

0

19

Homelite A50952

RING & GASKET ASSEMBLY

Note: Includes item 13

$

$

Currently unavailable

20

Homelite 58319A

RING-Retaining

$

$

Not available

21

Homelite 83046

WASHER-Lock

$

$

Not available

22

Homelite 82179

SCREW-10-32 x 1 7/8

$

$

Not available

23

Homelite A42208A

CARBURETOR

Note: Includes item 24

$

$

Currently unavailable

24

$

$

Not available

25

Homelite A509551A

BRACKET-Cover

$

$

Currently unavailable

26

Homelite 63266A

ROD-Throttle

$

$

Currently unavailable

27

Homelite 58348

BOOT-Throttle rod

$

$

Not available

28

Homelite 80676

SCREW-Hex hd. 12-24 x 5/8

$

$

Not available

29

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

30

$4.49

$

Usually ships in 3-7 days

0

31

Homelite 65745

TRIGGER

$

$

Not available

$

$

Not available

33

$

$

Not available

34

Homelite 800232

SCREW-8-32 x 5/8

$

$

Not available

35

Homelite 95671

PIN-Throttle
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 80560

SCREW-Pan hd. 8-32 x 1/2

$

$

Not available

37

Homelite A69045

COVER-Throttle handle

Note: Includes item 38

$

$

Not available

38

Homelite 59064

BUSHING

$

$

Not available

39

Homelite 68768

GRIP-Throttle handle cover

$

$

Not available

40

Homelite 68767

GRIP-Throttle handle

$

$

Not available

41

Homelite A47515

HANDLE-Throttle

$

$

Currently unavailable

42

Homelite 80891

SCREW-Hex hd. 12-24 x 7/8

$

$

Not available

43

Homelite 51144

GROMMET

$

$

Not available

44

Homelite 80575

SCREW-Pan hd. 8-32 x 1/4

$

$

Not available

45

Homelite 63369

SCREW
(Superseded to 63369A)

$

$

Not available
