XL 1738EX (1695481) - Snapper 38" Snow Thrower, 16.5hp (2009) Handles & Controls Group Parts Diagram

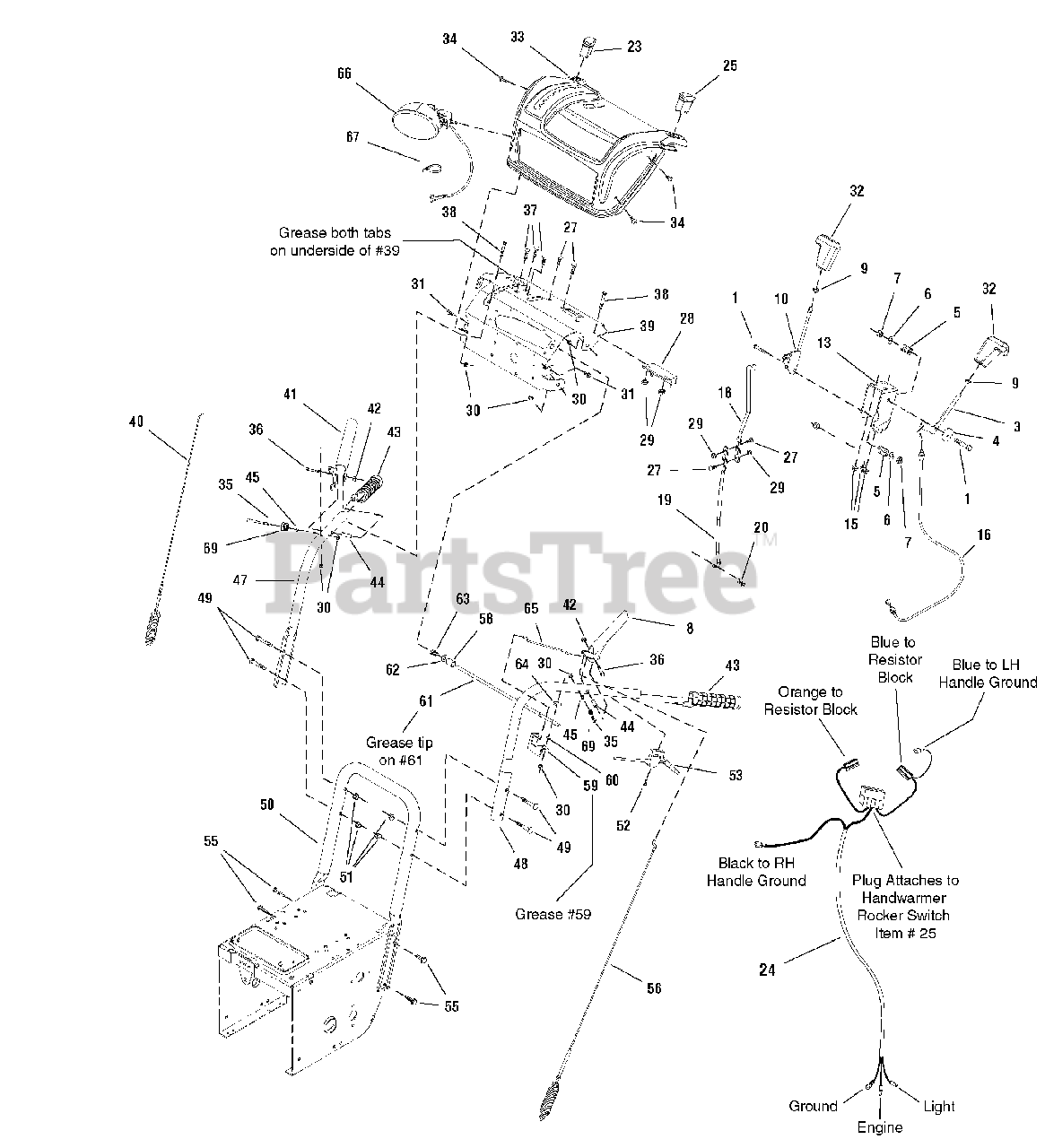

38" Snow Thrower, 16.5hp

Handles & Controls Group Parts Diagram

  • Title

1

Snapper 1923701

CAPSCREW, Hex Head 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 1732427

ROD, Chute
(Superseded to 1732427SM)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 1924356

WASHER, 3/8 x 1.5
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 724361

SPRING, .75, Compression
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 1919439

NUT, Hex Lock ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 1722667

GRIP, Clutch L.H.
(Superseded to 1722667SM)

$37.99

$

In Stock, only 1 left!

0

9

Snapper 1917421

NUT, Hex Jam, 3/8-16
(Superseded to 1917421SM)

$4.99

$

In Stock, Qty 11

0

10

Snapper 1735644

ROD & BRACKET ASSEMBLY, Speed
(Superseded to 1735644YP)

$86.99

$

Usually ships in 2-12 days

0

13

Snapper 1733045A

BRACKET, Control
(Superseded to 1733045ASM)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Snapper 1732971

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, only 4 left!

0

18

Snapper 1735647

ROD, Shift, Upper
(Superseded to 1735647YP)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 1666255

ROD, Shift, Lower
(Superseded to 1666255SM)

$51.99

$

In Stock, Qty 6

0

20

Snapper 1722460

HAIRPIN, 1.19
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

23

Snapper 1728969

SWITCH, Electronic Spout Rotate
(Superseded to 1728969SM)

$54.99

$

In Stock, only 2 left!

0

24

Snapper 1735652

HARNESS, Wiring Hand Warmers
(Superseded to 1735652YP)

$91.99

$

Usually ships in 2-12 days

0

25

Snapper 1732563

SWITCH, Rocker Hand Warmer
(Superseded to 1732563SM)

$47.99

$

Usually ships in 2-12 days

0

27

Snapper 1931317

CARRIAGE BOLT, 1/4-20 x 3/4 G5

$3.99

$

In Stock, only 3 left!

0

28

Snapper 1724037

RESISTOR BLOCK
(Superseded to 1724037SM)

$39.99

$

Usually ships in 2-12 days

0

29

Snapper 1960685

NUT, Hex KEPS, 1/4-20 Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

30

Snapper 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 1927429

SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

32

Snapper 723073

GRIP, Lever
(Superseded to 304437MA)

$11.99

$

Usually ships in 2-12 days

0

33

Snapper 1735642D

COVER, Panel
(Superseded to 1735642DSM)

$91.99

$

Usually ships in 2-12 days

0

34

Snapper 1960715

SCREW, Truss Head Torx Drive 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

35

Snapper 1923282

CAPSCREW, Hex-Head, 1/4-20 x 2-1/2
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

37

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

38

Snapper 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

39

Snapper 1732064A

SUPPORT, Dash Panel Cover
(Superseded to 1732064BMYP)

$136.99

$

Usually ships in 2-12 days

0

40

Snapper 1735643

CABLE & SPRING ASSEMBLY, Auger Drive R.H.
(Superseded to 1735643YP)

$26.99

$

Usually ships in 2-12 days

0

42

Snapper 1923358

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

41

Snapper 1736510

GRIP, Clutch R.H.
(Superseded to 1736510YP)

$29.99

$

Usually ships in 2-12 days

0

43

Snapper 1723965

HAND GRIP, Heated
(Superseded to 1723965SM)

$86.99

$

Usually ships in 2-12 days

0

44

Snapper 1715655

SPACER, Handle
(Superseded to 1715655SM)

$7.99

$

Usually ships in 2-12 days

0

45

Snapper 1678392

SPACER, Handle Stop
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

47

Snapper 1734587A

HANDLE, Upper R.H.
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

48

Snapper 1734586A

HANDLE, Upper L.H.
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

49

Snapper 1960723

CARRIAGE BOLT, 5/16-18 x 2-1/4 G5
(Superseded to 1960723SM)

$3.99

$

In Stock, Qty 18

0

50

Snapper 1735641A

HANDLE, Lower
(Superseded to 1735641AYP)

$79.99

$

Usually ships in 2-12 days

0

51

Snapper 1960686

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 1725702

SCREW, Pan Head Torx
(Superseded to 1725702SM)

$5.49

$

Usually ships in 2-12 days

0

53

Snapper 1718791

ASSEMBLY, Trigger and Cable
(Superseded to 1718791SM)

$70.99

$

In Stock, only 4 left!

0

55

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

56

Snapper 1735646

CABLE, Front Drive
(Superseded to 1735646YP)

$21.99

$

Usually ships in 2-12 days

0

58

Snapper 1679166

SPACER
(Superseded to 1679166SM)

$7.49

$

In Stock, only 2 left!

0

59

Snapper 1733505A

BRACKET, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

60

Snapper 1733095

SPACER, Powerdered Metal
(Superseded to 1733095SM)

$4.49

$

Usually ships in 2-12 days

0

61

Snapper 1733509

ROD & SPRING ASSEMBLY, with Pin
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

62

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

63

Snapper 2108360

SPRING, Compression
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

64

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

65

Snapper 1722630

ROD, Hold Down
(Superseded to 1722630SM)

$7.49

$

Usually ships in 2-12 days

0

66

Snapper 1732322

HEADLIGHT ASSEMBLY, Oval Clear
(Superseded to 1737966YP)

$97.99

$

Usually ships in 2-12 days

0

--

BULB, 881-12V 27 Watt Halogen *

$

$

Not available

67

Snapper 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

69

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0
