XL 1738EX (1695481) - Snapper 38" Snow Thrower, 16.5hp (2009) Auger Housing & Chute Group Parts Diagram

38" Snow Thrower, 16.5hp

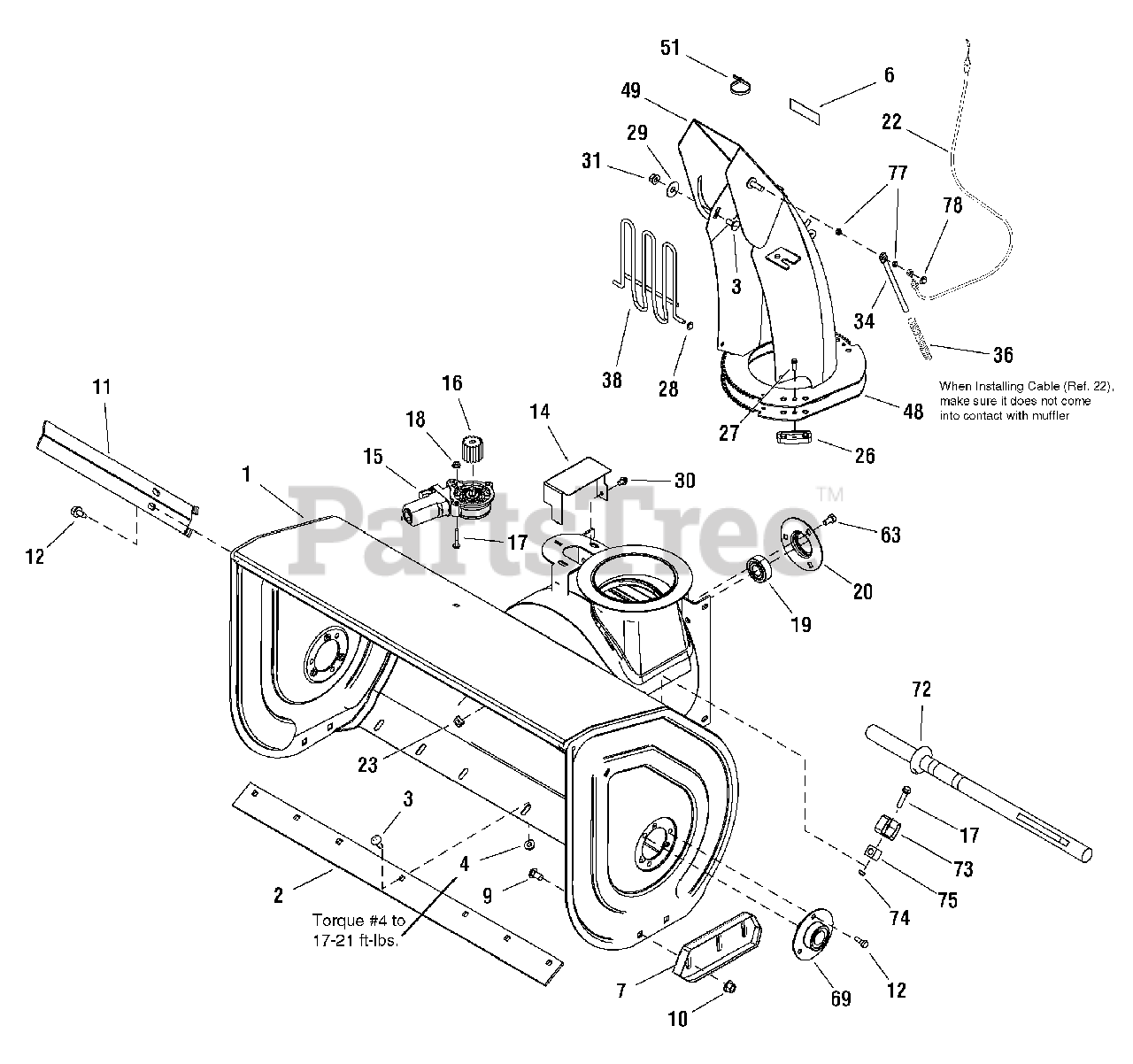

Auger Housing & Chute Group Parts Diagram

  • Title

1

Snapper 1734553D

HOUSING ASSEMBLY, 38"

$

$

Currently unavailable

2

Snapper 1723921A

BLADE, Scraper 38"
(Superseded to 1723921BMYP)

$

$

Not available

3

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

4

Snapper 1935048

NUT, Hex Lock Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 1733599

DECAL, Red Strip
(Superseded to 1733599SM)

$

$

Not available

7

Snapper 1725747A

SKID SHOE
(Superseded to 1725747BMYP)

$92.99

$

In Stock, only 4 left!

0

9

Snapper 1960702

BOLT, Carriage, 3/8-16 X 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

10

Snapper 1960687

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 1733102A

CUTTER, Drift
(Superseded to 1733102ASM)

$31.99

$

In Stock, only 4 left!

0

12

Snapper 1664847

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 1733934A

COVER, Gear 38"
(Superseded to 1733934ASM)

$

$

Not available

15

Snapper 1728965

MOTOR, Spout Rotator 38"
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 8

0

16

Snapper 1728967

PINION, 1.417OD .296 Slot, 1-1/4 LG, 16T Powdered Metal
(Superseded to 1728967SM)

$17.99

$

In Stock, only 4 left!

0

17

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 1960745

NUT, Hex Whiz Lock Flange, 10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 2108202

BEARING, 3/4 ID x 1.78 OD x .61 LG Greased
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

20

Snapper 1665982

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

22

Snapper 1732971

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 6

0

23

Snapper 1930659

RETAINER, Nut, 5/16-18 .057/.092
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 1666613

HOLD DOWN, Chute Black Nylon
(Superseded to 1666613SM)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 1960001

SCREW, Hex Washer Head Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 1960126

NUT, Push Pal, 1/4 DIA Stud Capped
(Superseded to 704066)

Note: (C/E Export Only)

$4.99

$

In Stock, Qty 14

0

29

Snapper 2860210

WASHER, Nylon, .388 x 1.12 x .03
(Superseded to 2860210SM)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 1927428

SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

31

Snapper 1960686

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 1734708A

ROD, 5/16 DIA 5.88 LG
(Superseded to 1734708ASM)

$13.99

$

Usually ships in 2-12 days

0

36

Snapper 1734647

SPRING, Compression
(Superseded to 1734647SM)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 1704446

GUARD & SUPPORT ASSEMBLY, Chute
(Superseded to 1704446SM)

Note: (C/E Export Only)

$22.99

$

Usually ships in 2-12 days

0

48

Snapper 1717477A

GEAR, Chute, 10 OD x 6.65 ID x .105 TH
(Superseded to 1717477ASM)

$50.99

$

Usually ships in 2-12 days

0

49

Snapper 1734401D

CHUTE ASSEMBLY, 38"

$

$

Currently unavailable

49

Snapper 1734400D

CHUTE ASSEMBLY, 38"

Note: (C/E Export Only)

$

$

Not available

51

Snapper 2825094

TIE, Self Locking, .184 WD 7.31 LG
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

63

Snapper 1960738

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

69

Snapper 1734645

BEARING, Ball, 1.002 ID 2.049 OD 1.09 LG
(Superseded to 703411)

$51.99

$

In Stock, only 1 left!

0

72

Snapper 1736094

STICK, Cleanout w/Brush, Snow
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

73

Snapper 722242

CLIP, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

74

Snapper 1933896

NUT, Hex Lock, 10-24 with Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

75

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

77

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

78

Snapper 1932718

NUT, Push
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0
