XL 1738EX (1695359) - Snapper 38" Snow Thrower, 16.5hp (2008) Auger Drive Group Parts Diagram

38" Snow Thrower, 16.5hp

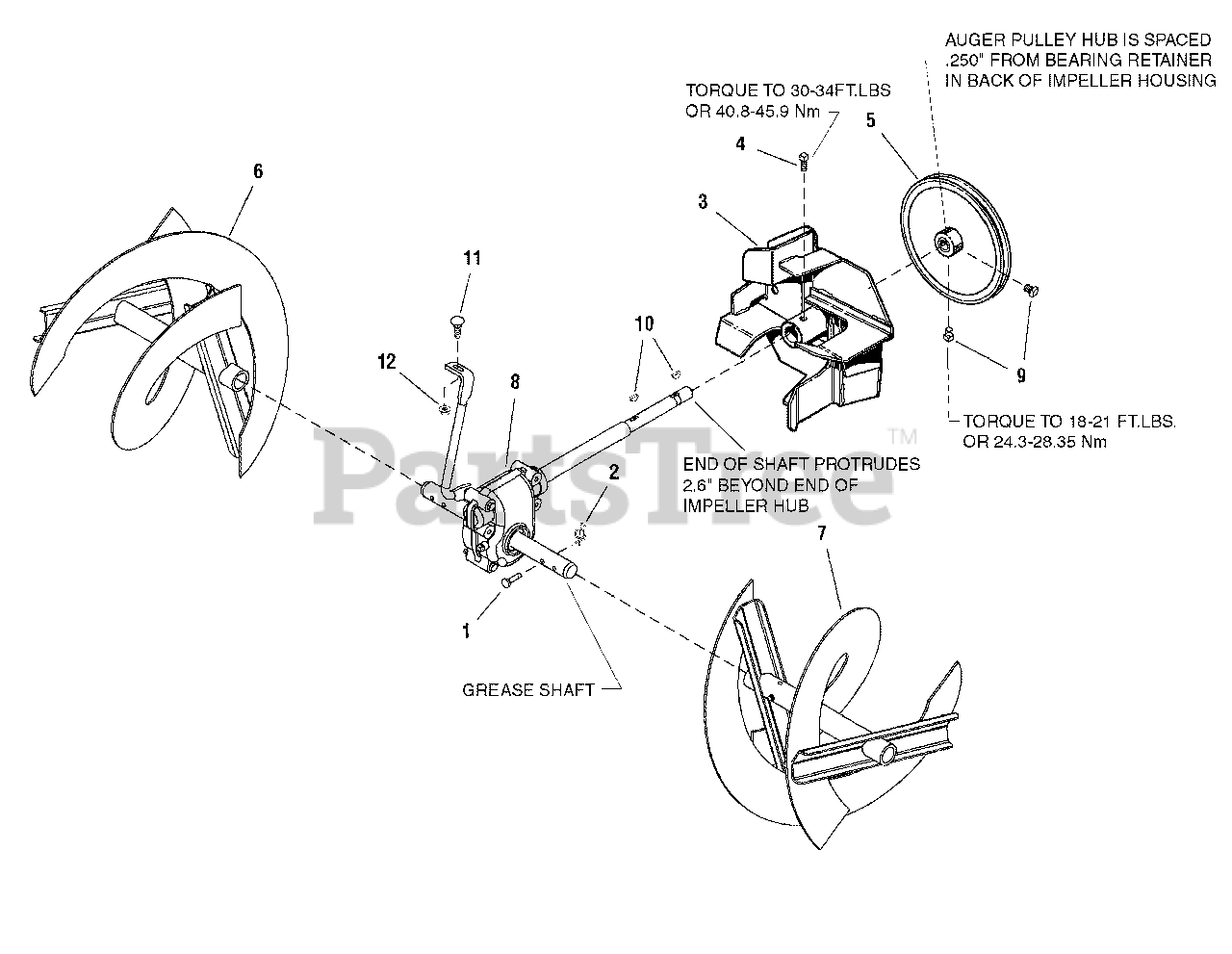

Auger Drive Group Parts Diagram

  • Title

1

Snapper 1668344

PIN, SHEAR
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7023590

COTTER PIN, 1/4" Self Locking
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 1612187A

IMPELLER ASSEMBLY, Large Frame Snow
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 1 left!

0

4

Snapper 1960474

SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8
(Superseded to 1960474SM)

$5.99

$

In Stock, Qty 5

0

5

Snapper 1732468

PULLEY, w/Hub
(Superseded to 1732468SM)

$146.99

$

Usually ships in 2-12 days

0

6

Snapper 1734680A

AUGER ASSEMBLY, 38" R.H.
(Superseded to 1734680BMYP)

$219.99

$

Usually ships in 2-12 days

0

7

Snapper 1734679A

AUGER ASSEMBLY, 38" L.H.
(Superseded to 1734679BMYP)

$207.99

$

Usually ships in 2-12 days

0

8

Snapper 1732303

GEAR BOX ASSEMBLY
(Superseded to 1732303SM)

$512.99

$

Usually ships in 2-12 days

0

9

Snapper 1928721

SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 2818312

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

11

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

12

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
