XL 1738E (1696007) - Snapper 38" Snow Thrower, 16.5hp (2011) Engine & Frame Group Parts Diagram

38" Snow Thrower, 16.5hp

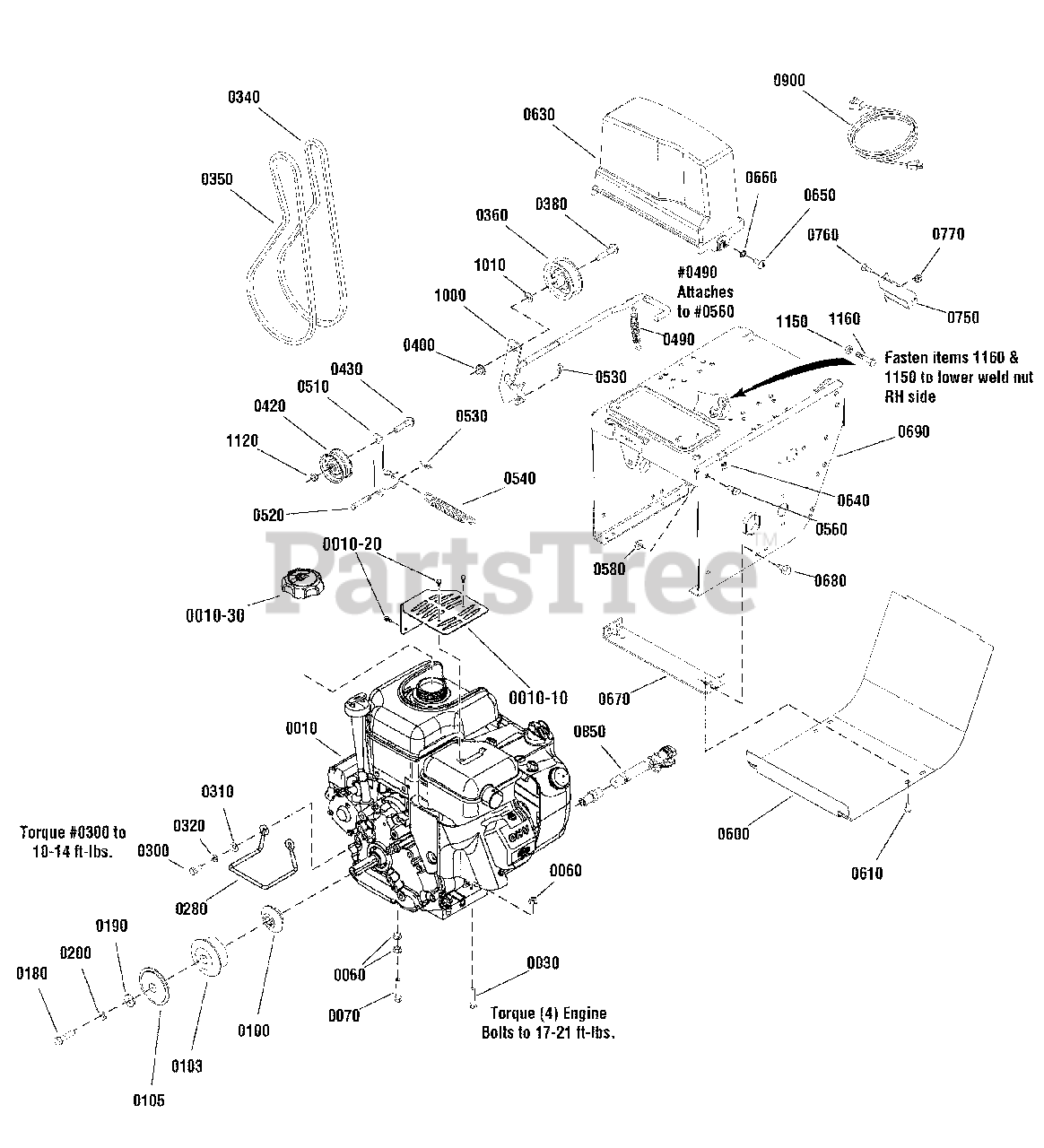

Engine & Frame Group Parts Diagram

  • Title

0010

Snapper 21M314-0127-F1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Engine Model: 21M314-0127-F1)

$

$

Not available

0010-10

Snapper 797095

* GUARD, Muffler, Plate

$45.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 699234

* SCREW, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0010-30

Snapper 795027

* CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0030

Snapper 1921221

CAPSCREW, Hex-Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

0060

Snapper 2831277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0070

Snapper 2822127

CAPSCREW, Hex-Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0100

Snapper 1726865

PULLEY, Engine, Inside
(Superseded to 1726865SM)

$42.99

$

Usually ships in 2-12 days

0

0103

Snapper 1726866

PULLEY, Engine Middle
(Superseded to 1726866SM)

$52.99

$

Usually ships in 2-12 days

0

0105

Snapper 1726867

PULLEY, Engine Outside
(Superseded to 1726867SM)

$39.99

$

Usually ships in 2-12 days

0

0180

Snapper 1922128

CAPSCREW, Hex Head, 3/8-24 x 1-1/2, G8
(Superseded to 1922128SM)

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0200

Snapper 1916965

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0280

Snapper 1727785

STOP, Belt
(Superseded to 1727785SM)

$19.99

$

Usually ships in 2-12 days

0

0300

Snapper 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0310

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 1666655

V-BELT, HA, 41.3, Auger
(Superseded to 1666655SM)

$29.99

$

In Stock, Qty 7

0

0350

Snapper 1672732

V-BELT, 3L, 31.00, Drive
(Superseded to 1672732SM)

$20.99

$

In Stock, Qty 12

0

0360

Snapper 1726348

PULLEY, Idler, 2-3/4
(Superseded to 1726348SM)

$24.99

$

In Stock, only 4 left!

0

0380

Snapper 2860709

CAPSCREW, Hex Flange, Whiz Lock, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0400

Snapper 1928352

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0420

Snapper 1668477

PULLEY, Idler, 2-1/4
(Superseded to 1668477SM)

$23.99

$

In Stock, Qty 20+

0

0430

Snapper 1960647

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 1960647SM)

$7.49

$

Usually ships in 2-12 days

0

0490

Snapper 2159106

SPRING, Extension, 4-1/4
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

0510

Snapper 1703046BZ

ARM, Idler
(Superseded to 1703046BZYP)

$12.99

$

Usually ships in 2-12 days

0

0520

Snapper 1665994

PIN, Flat Head Drilled
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

0530

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0540

Snapper 1727149

SPRING, Extension, 5-3/4
(Superseded to 703146)

$

$

Not available

0560

Snapper 1930591

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 6

0

0580

Snapper 1927557

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0600

Snapper 1726870D

COVER, Bottom
(Superseded to 1726870DSM)

$80.99

$

Usually ships in 2-12 days

0

0610

Snapper 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0630

Snapper 1725287

COVER, Belt
(Superseded to 706414)

$

$

Not available

0640

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

0650

Snapper 1918249

SCREW, Truss Head Slotted, 5/16-18 x 3/4
(Superseded to 1918249SM)

$4.99

$

Usually ships in 2-12 days

0

0660

Snapper 2820426

LOCKWASHER, External Tooth, 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

0670

Snapper 1727004BZ

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

0680

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0690

Snapper 1726568D

FRAME

$

$

Not available

0750

Snapper 1720404BZ

SUPPORT, Clutch Cable
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

0760

Snapper 1931317

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

0770

Snapper 1960685

NUT, Hex KEPS, Conical Washer, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0850

Snapper 798980

* OIL DRAIN ASSEMBLY

$

$

Not available

0900

Snapper 724865

CORD, Electrical
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

1000

Snapper 1729646BZ

CLUTCH ROD / BRAKE ARM
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

1010

Snapper 7091528

WASHER, Flat, 3/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

1120

Snapper 1928731

NUT, Hex Toplock Jam, 3/8-16
(Superseded to 1928731SM)

$4.99

$

In Stock, only 1 left!

0

1150

Snapper 1920161

NUT, Hex Jam, 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

1160

Snapper 1921333

CAPSCREW, Hex-Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0
