XL 1738E (1695476) - Snapper 38" Snow Thrower, 16.5hp (2009) Engine & Frame Group Parts Diagram

38" Snow Thrower, 16.5hp

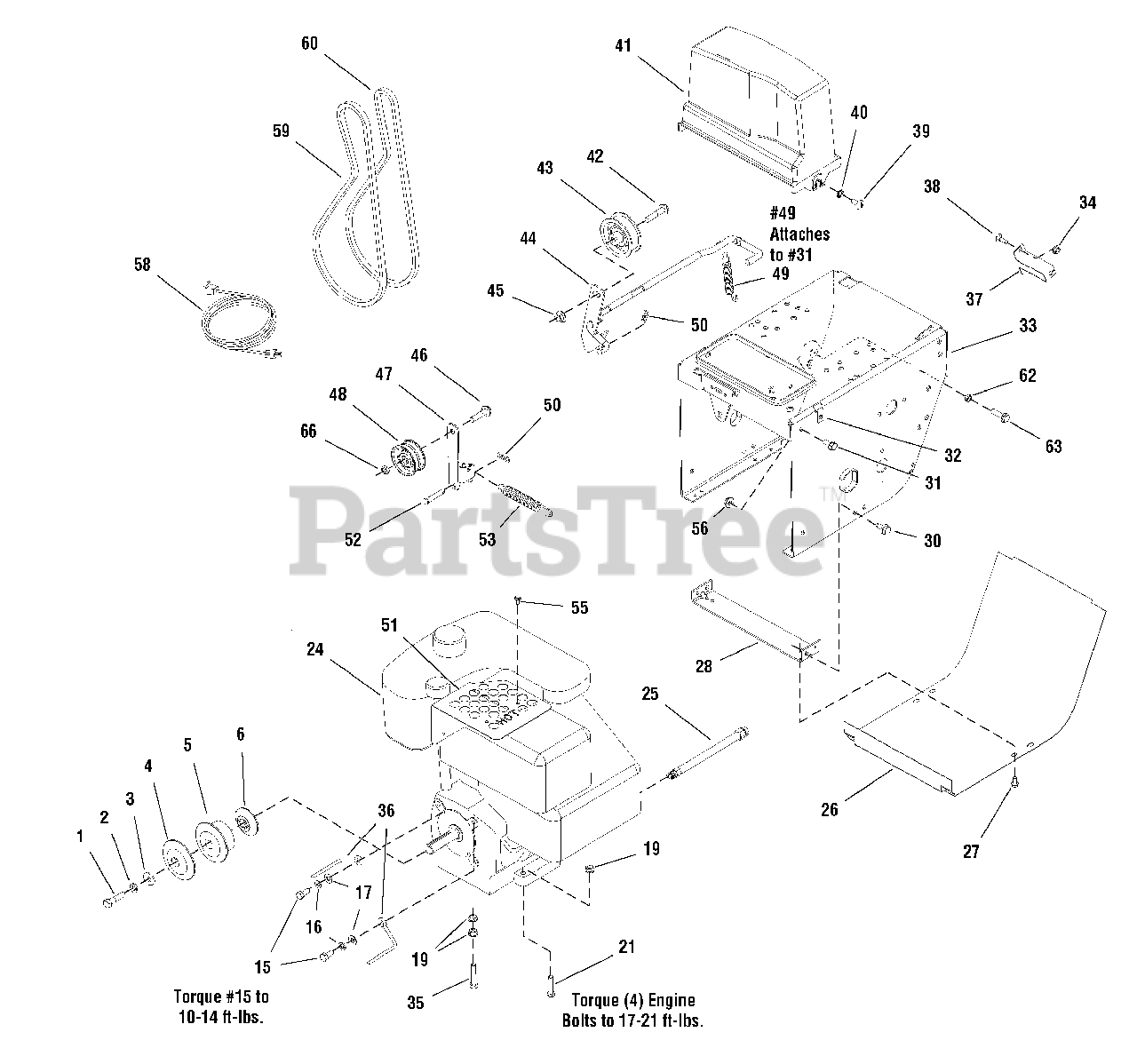

Engine & Frame Group Parts Diagram

  • Title

1

Snapper 1922128

CAPSCREW, Hex Head 3/8-24 x 1-1/2, G8
(Superseded to 1922128SM)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 1916965

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

3

Snapper 1922755

WASHER, 3/8, .41 ID x 1 OD x .13 THK
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

4

Snapper 1726867

PULLEY, Engine Outside
(Superseded to 1726867SM)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 1726866

PULLEY, Engine Middle
(Superseded to 1726866SM)

$52.99

$

Usually ships in 2-12 days

0

6

Snapper 1726865

PULLEY, Engine Inside
(Superseded to 1726865SM)

$42.99

$

Usually ships in 2-12 days

0

15

Snapper 1921515

CAPSCREW, Hex Head 5/16-24 x 3/4, G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 1919326

WASHER, 5/16, 0.34 ID x 3/4 OD x .06 THK
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 1931277

NUT, Hex Whiz Lock Flange 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

21

Snapper 1921221

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

24

* ENGINE, 13.0HP B&S Mod. #21M414-0119-E1

Note: (Used on Domestic Models Only)

$

$

Not available

24

* ENGINE, 13.0HP B&S Mod. #21M414-0168-E1

Note: (C/E Export Only)

$

$

Not available

25

Snapper 1726942

HOSE, Oil Drain
(Superseded to 1726942SM)

$28.99

$

Usually ships in 2-12 days

0

26

Snapper 1726870D

COVER, Bottom Frame
(Superseded to 1726870DSM)

$80.99

$

Usually ships in 2-12 days

0

27

Snapper 1925003

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

28

Snapper 1727004A

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

30

Snapper 1664847

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 1930591

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

32

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

33

Snapper 1726568D

FRAME ASSEMBLY

$

$

Not available

34

Snapper 1960685

NUT, Hex Keps, 1/4-20 Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

35

Snapper 2822127

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 1727785

STOP, Belt
(Superseded to 1727785SM)

$19.99

$

Usually ships in 2-12 days

0

37

Snapper 1720404A

SUPPORT, Clutch Cable L.F.
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

38

Snapper 1931317

CARRIAGE BOLT, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

39

Snapper 1918249

SCREW, Truss Head Slotted, 5/16-18 x 3/4
(Superseded to 1918249SM)

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 2820426

LOCKWASHER, External Tooth 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

41

Snapper 1725287

COVER, Belt
(Superseded to 706414)

$

$

Not available

42

Snapper 2860709

SCREW, Hex Whiz Lock Flange, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 1726348

PULLEY, Idler, 2-3/4
(Superseded to 1726348SM)

$24.99

$

In Stock, only 4 left!

0

44

Snapper 1729646A

ROD & ARM ASSEMBLY, Clutch/Brake
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

45

Snapper 1928352

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

46

Snapper 1960647

SCREW, Hex Head, 3/8-16 x 1-1/2 x .141
(Superseded to 1960647SM)

$7.49

$

Usually ships in 2-12 days

0

47

Snapper 1703046A

ARM, Idler, 5-3/4
(Superseded to 1703046BZYP)

$12.99

$

Usually ships in 2-12 days

0

48

Snapper 1668477

PULLEY, Idler
(Superseded to 1668477SM)

$23.99

$

In Stock, Qty 20+

0

49

Snapper 2159106

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

50

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

51

Snapper 1734698

GUARD, Muffler
(Superseded to 1734698SM)

Note: (Used on Domestic Models Only)

$15.99

$

Usually ships in 2-12 days

0

52

Snapper 1665994

PIN, Flat Head Drilled
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

53

Snapper 1727149

SPRING, Extension L.F.
(Superseded to 703146)

$

$

Not available

55

Snapper 1929477

SCREW, Hex Taptite, 10-24 x 1/2
(Superseded to 1929477SM)

Note: (Used on Domestic Models Only)

$4.49

$

Usually ships in 2-12 days

0

56

Snapper 1927557

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

58

Snapper 1724064

CORD, Electric Extension
(Superseded to 1724064SM)

Note: (Used on Domestic Models Only)

$40.99

$

Usually ships in 2-12 days

0

59

Snapper 1672732

V-BELT, 3L 31.00 (Drive)
(Superseded to 1672732SM)

$20.99

$

In Stock, Qty 13

0

60

Snapper 1666655

V-BELT, HA 41.3 (Auger)
(Superseded to 1666655SM)

$29.99

$

In Stock, Qty 7

0

62

Snapper 1920161

NUT, Hex, 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

63

Snapper 1921333

CAPSCREW, Hex-head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

66

Snapper 1928731

NUT, Hex Toplock Jam, 3/8-16
(Superseded to 1928731SM)

$4.99

$

In Stock, only 1 left!

0
