XL 1738E (1695358) - Snapper 38" Snow Thrower, 16.5hp (2008) Traction Drive Group Parts Diagram

38" Snow Thrower, 16.5hp

Traction Drive Group Parts Diagram

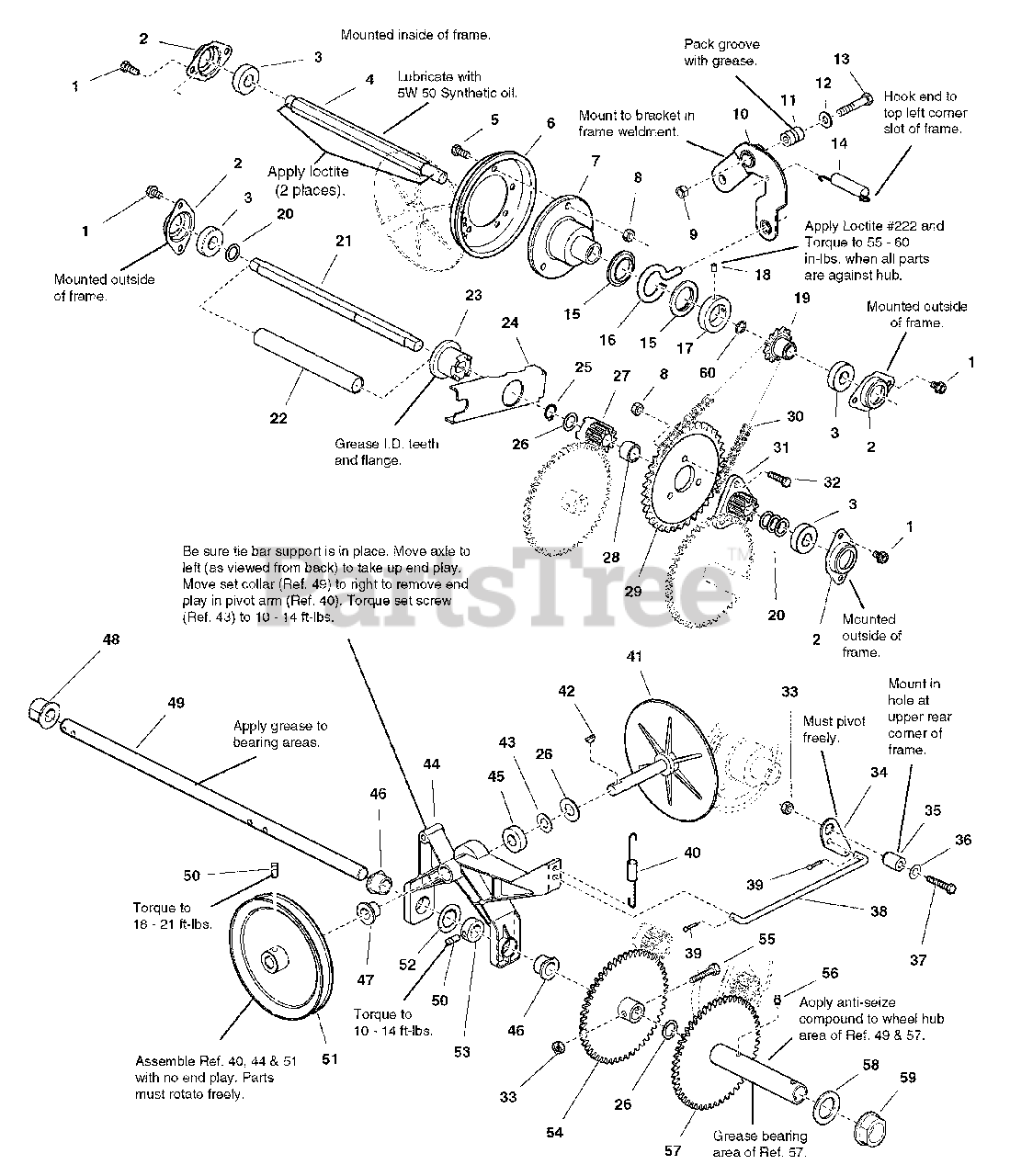

  • Title

1

Snapper 1930601

SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

2

Snapper 1667341

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 13

0

3

Snapper 1705897

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

4

Snapper 1726856

SHAFT, Hex
(Superseded to 1736100SM)

$28.99

$

Usually ships in 2-12 days

0

5

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

6

Snapper 1725428

DISC, Friction with Insert
(Superseded to 1725428SM)

$46.99

$

In Stock, Qty 14

0

7

Snapper 1665995

HUB, Friction Disc
(Superseded to 1665995SM)

$97.99

$

In Stock, only 1 left!

0

8

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

9

Snapper 1960687

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 1669256

ARM ASSEMBLY, Shift with Bushing
(Superseded to 1755738YP)

$40.99

$

In Stock, only 2 left!

0

11

Snapper 1666114

BUSHING, 19/50 ID x 3/4 OD x 1-3/100 LG
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 1668255

SPRING, Extension
(Superseded to 703157)

$4.49

$

In Stock, only 4 left!

0

15

Snapper 1678956

COLLAR, Thrust
(Superseded to 1678956SM)

$5.49

$

In Stock, only 1 left!

0

16

Snapper 1666207

PIN, Loop
(Superseded to 1666207SM)

$12.99

$

In Stock, only 2 left!

0

17

Snapper 1667335

COLLAR, Set
(Superseded to 1667335SM)

$22.99

$

In Stock, only 3 left!

0

18

Snapper 1724333

SCREW, Set Square Head Cup Point, 1/4-20 x 1/2
(Superseded to 703139)

$3.49

$

In Stock, only 2 left!

0

19

Snapper 1726931

SPROCKET, 10 T
(Superseded to 1726931SM)

$15.99

$

In Stock, only 1 left!

0

20

Snapper 2860164

WASHER, 5/8
(Superseded to 2860164SM)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 1718752

JACKSHAFT, Double D
(Superseded to 1718752SM)

$70.99

$

Usually ships in 2-12 days

0

22

Snapper 1720298

SPRING, Complete
(Superseded to 1720298SM)

$7.99

$

Usually ships in 2-12 days

0

23

Snapper 1718689

CLUTCH, Sliding, 1/5 LG, Powdered Metal
(Superseded to 1718689SM)

$18.99

$

In Stock, only 1 left!

0

24

Snapper 1720078A

ARM, Clutch
(Superseded to 1720078BMYP)

$23.99

$

Usually ships in 2-12 days

0

25

Snapper 2827732

RING, Retaining Extension
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

26

Snapper 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 1718688

GEAR, Stationary Clutch
(Superseded to 1718688SM)

$15.99

$

In Stock, only 1 left!

0

28

Snapper 1679556

SPACER, Heat Treated, 31/100 LG
(Superseded to 703154)

$23.99

$

In Stock, only 2 left!

0

29

Snapper 1667330

SPROCKET
(Superseded to 1667330SM)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 1666980

CHAIN, Roller
(Superseded to 1666980SM)

$34.99

$

In Stock, only 1 left!

0

31

Snapper 1718687

GEAR, Double D
(Superseded to 1718687SM)

$26.99

$

Usually ships in 2-12 days

0

32

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 1960686

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 1700473

BELLCRANK
(Superseded to 1700473SM)

$6.49

$

Usually ships in 2-12 days

0

35

Snapper 1666106

BUSHING, 11/32 ID x 3/4 OD x 1-3/50 LG
(Superseded to 1666106SM)

$10.99

$

In Stock, only 1 left!

0

36

Snapper 1919326

WASHER, 11/32 x 3/4 x 1/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 1922127

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 1726467

ROD, Pivot, 9-15/100 LG
(Superseded to 1726467SM)

$

$

Not available

39

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

40

Snapper 1725666

SPRING, Extension
(Superseded to 703148)

$5.99

$

Usually ships in 2-12 days

0

41

Snapper 1719879

DRIVE DISC with SPINDLE
(Superseded to 1719879SM)

$90.99

$

In Stock, only 4 left!

0

42

Snapper 2818312

KEY, Woodruff, 47/250 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

43

Snapper 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

44

Snapper 1670849

ARM, Pivot with Bushings & Bearings
(Superseded to 1755734YP)

Note: (Includes Ref. Nos 45, 46, 47 & 48)

$231.99

$

Usually ships in 2-12 days

0

45

Snapper 1665521

BEARING, Ball
(Superseded to 1665521SM)

$16.99

$

Usually ships in 2-12 days

0

46

Snapper 1666425

BUSHING, 3/4 ID x 1 OD x 3/4 LG, Powdered Metal
(Superseded to 1666425SM)

$20.99

$

In Stock, Qty 20+

0

47

Snapper 1666855

BUSHING, 5/8 ID x 13/16 OD x 3/4 LG, Powdered Metal
(Superseded to 1666855SM)

$11.99

$

In Stock, Qty 7

0

48

Snapper 1666001

BUSHING, 377/100 ID x 1-13/100 OD x 1 LG, Powdered Metal
(Superseded to 1666001SM)

$6.99

$

In Stock, Qty 9

0

49

Snapper 1720299

AXLE, Round
(Superseded to 1720299SM)

$

$

Not available

50

Snapper 1928721

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

51

Snapper 1672595A

PULLEY & HUB ASSEMBLY
(Superseded to 703147)

$50.99

$

Usually ships in 2-12 days

0

52

Snapper 1919394

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

53

Snapper 1729254

COLLAR, Set
(Superseded to 703150)

$

$

Not available

54

Snapper 1720300

GEAR & HUB ASSEMBLY, R.H.
(Superseded to 1720300SM)

$286.99

$

Usually ships in 2-12 days

0

55

Snapper 1930570

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G8
(Superseded to 1930570SM)

$4.49

$

Usually ships in 2-12 days

0

56

Snapper 2812808

FITTING, Lube, 1/4-28, Tappered with Check Ball
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

57

Snapper 1730228

GEAR & HUB ASSEMBLY, with Bushings
(Superseded to 1755727YP)

$164.99

$

Usually ships in 2-12 days

0

58

Snapper 2860169

WASHER, 1-47/250
(Superseded to 2860169SM)

$6.99

$

Usually ships in 2-12 days

0

59

Snapper 1720305

BUSHING, 1-27/200 ID x 1-157/250 OD x 3/4 LG
(Superseded to 1720305SM)

$16.99

$

In Stock, Qty 7

0

60

Snapper 2172206

RING, Retaining External, #87
(Superseded to 2172206SM)

$4.99

$

In Stock, Qty 20+

0
