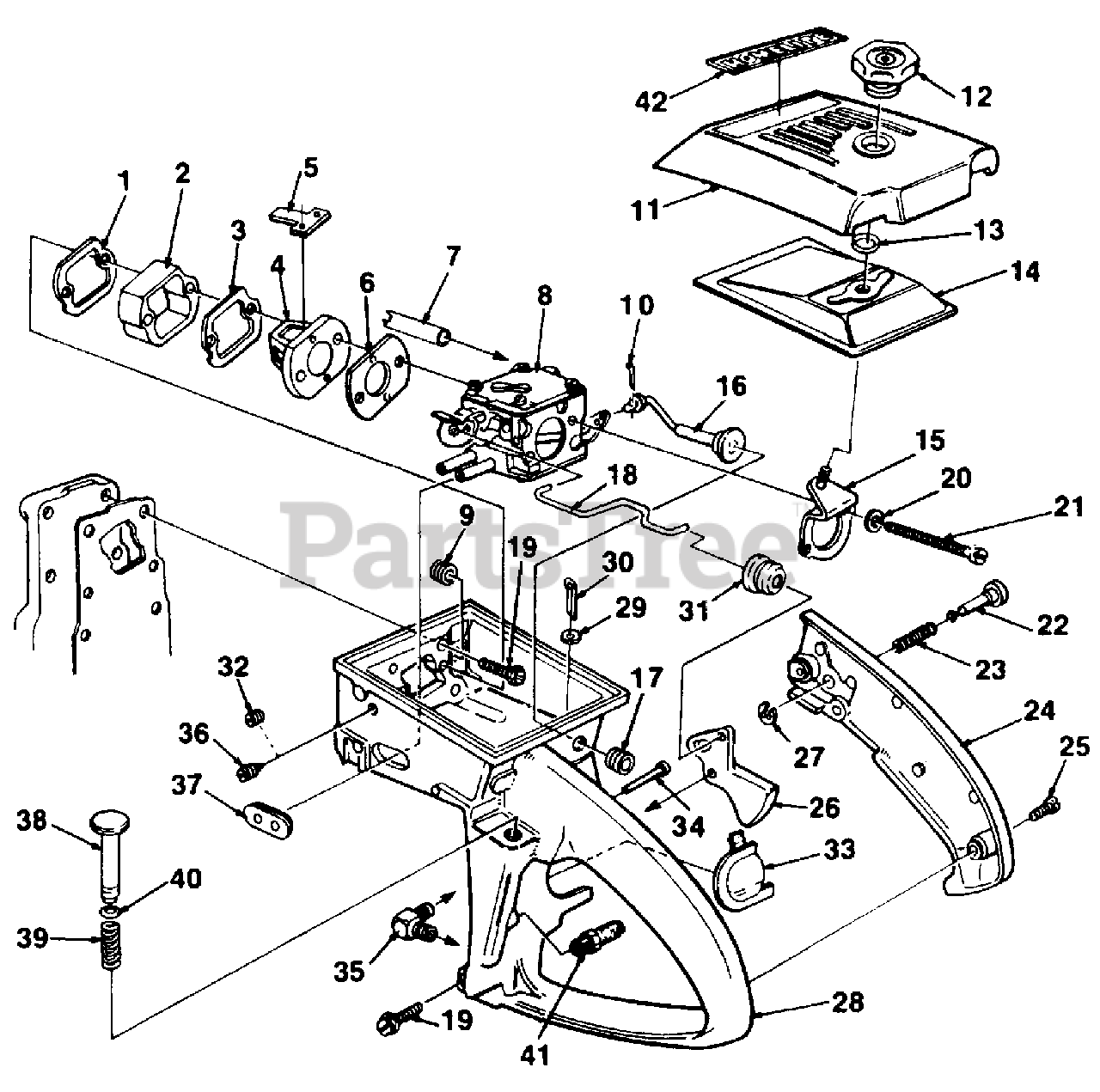

XL 12 (UT-10080-D) - Homelite Chainsaw Carburetor Chamber Parts Diagram

Chainsaw

Carburetor Chamber Parts Diagram

  • Title
1

Homelite 59274

GASKET- Spacer

$

$

Not available

2

$

$

Not available

3

Homelite 63260A

RETAINER- Reed valve
(Superseded to UP06981)

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 63253

SEAT- Reed valve

$

$

Not available

5

Homelite 59678B

VALVE- Reed
(Superseded to UP05942)

$

$

Not available

6

Homelite 59722

GASKET- Carburetor

$

$

Not available

7

Homelite 7031037

LINE- Fuel 9 1/4"

$

$

Currently unavailable

8

Homelite A68371B

CARBURETOR- Walbro (SDC-62)

$

$

Currently unavailable

Homelite A68363BS

CARBURETOR- Tillotson (HS-179-B)

$

$

Not available

Homelite A94953

CARBURETOR- Zama (#20-20)

$

$

Currently unavailable

9

Homelite 68279

GROMMET

$

$

Not available

10

Homelite 86324

PIN- Cotter

$

$

Not available

11

Homelite 5877312

COVER-Air filter
(Superseded to 587733A)

$

$

Not available

12

Homelite A65272

NUT- Air filter cover
(Superseded to UP05611)

$31.99

$

Usually ships in 3-7 days

0

13

Homelite 58319A

RING- Retaining

$

$

Not available

14

Homelite 63589A

ELEMENT- Air filter
(Superseded to UP06807)

$

$

Not available

15

Homelite A59822B

BRACKET- Mounting

$

$

Not available

16

Homelite 681301

ROD- Choke

$

$

Not available

17

Homelite 58362

GROMMET

$

$

Not available

18

Homelite 59763

ROD- Throttle

$

$

Not available

19

Homelite 80891

SCREW- Hex 12-24 x 7/8

$

$

Not available

20

Homelite 83046

WASHER- Lock #10

$

$

Not available

21

Homelite 80921

SCREW- Hex 10-32 x 2 11/16

$

$

Not available

22

Homelite 95671

PIN- Throttle latch
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 58405

SPRING- Throttle latch

$

$

Not available

24

Homelite A592131A

COVER- Throttle handle
(Superseded to A06727)

$66.99

$

Usually ships in 3-7 days

0

Homelite 67752

Bushing- Pin (Not shown)

$

$

Not available

25

Homelite 80560

SCREW- Pan 8-32 x 1/2

$

$

Not available

26

Homelite 58859

TRIGGER- Throttle
(Superseded to 58859A)

$

$

Not available

27

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

28

Homelite A93926

THROTTLE HANDLE

$217.99

$

Usually ships in 3-7 days

0

29

Homelite 63290

WASHER- Felt

$

$

Not available

30

Homelite 86301

PIN- Cotter

$

$

Not available

31

Homelite 67634

BOOT- Throttle rod

$

$

Not available

32

$

$

Not available

33

Homelite 93209

SHIELD- Spark plug
(Superseded to PS93209)

$14.99

$

Usually ships in 3-7 days

0

$

$

Not available

35

Homelite A59011

VALVE- Check

$

$

Currently unavailable

36

Homelite 63302B

SCREW- Idle

$

$

Not available

37

Homelite 59770

GROMMET- Hi-Lo
(Superseded to A07047)

$

$

Not available

38

Homelite A93783

PLUNGER- Spring
(Superseded to UP06578)

$

$

Currently unavailable

39

Homelite 59293

SPRING- Compression

$

$

Not available

40

Homelite 74388

"O" RING
(Superseded to UP06601)

$4.99

$

Usually ships in 3-7 days

0

42

Homelite 96479

LABEL- Homelite

$

$

Currently unavailable
