XEY 1142AR - Poulan Pro Lawn Tractor TRANSAXLE FOOTE DANA - MODEL NUMBER 4360-19 Parts Diagram

Lawn Tractor

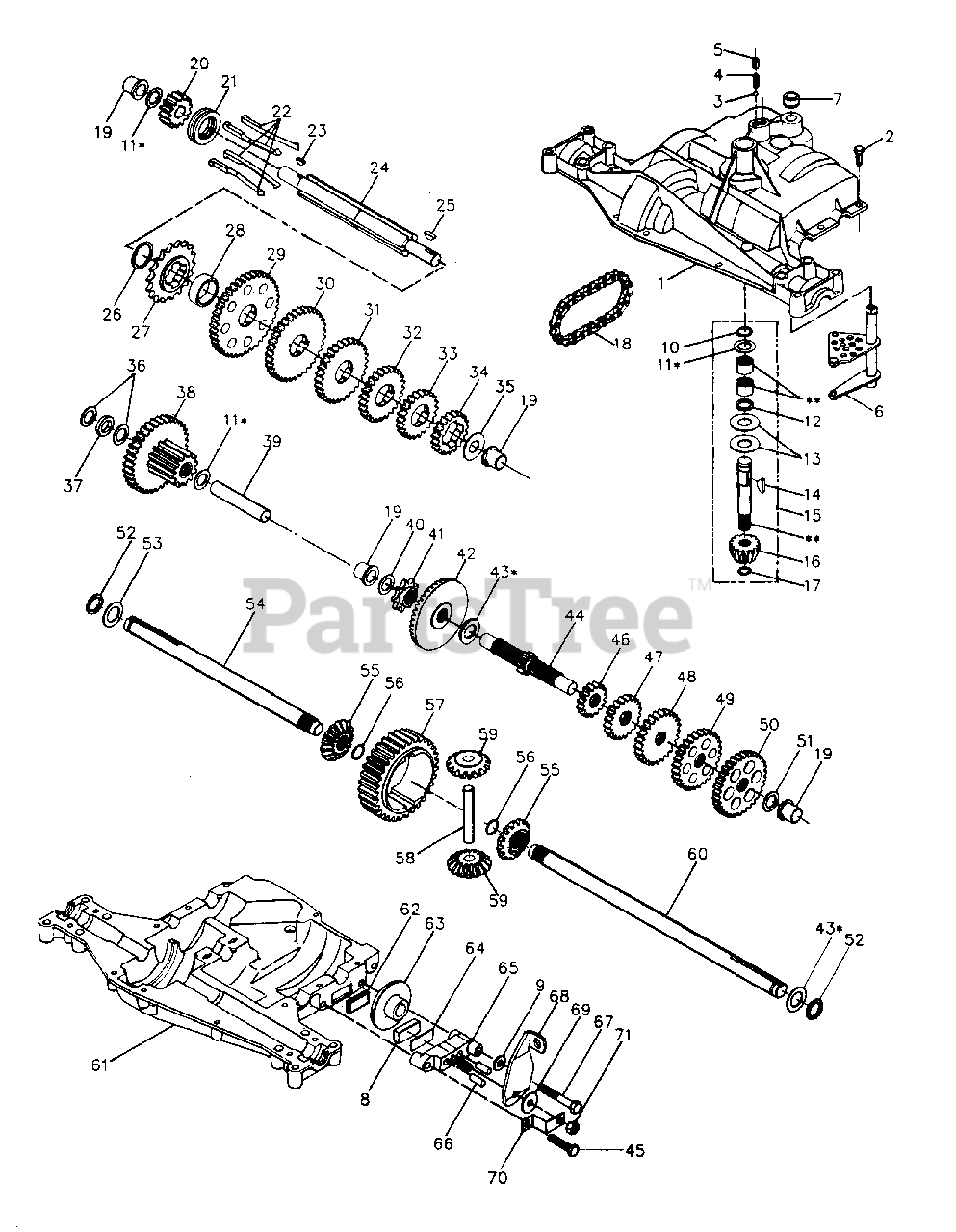

TRANSAXLE FOOTE DANA - MODEL NUMBER 4360-19 Parts Diagram

  • Title

1

Poulan 03865A

Upper Housing (AYP part number)

$

$

Not available

2

Poulan 001919

Tapping Screw (Dana part number)

$

$

Not available

3

Poulan 001151

Detent Ball (Dana part number)

$

$

Not available

4

Poulan 003626

Detent Spring (Dana part number)

$

$

Not available

5

Poulan 003623

Screw Set (Dana part number)

$

$

Not available

6

Poulan 004458

Shifter Assembly (Dana part number)

$

$

Not available

7

Poulan 530003789

V-Ring

$

$

Not available

8

Poulan 003907

Friction Puck (Dana part number)

$

$

Not available

9

Poulan 530003906

Plain Washer

$

$

Not available

10

Poulan 001099

Retaining Ring (Dana part number)

$

$

Not available

11

Poulan 001959

Plain Washer .632 x 1.00 x .010 (Dana part number)

$

$

Not available

11

Poulan 001441

Plain Washer .632 x 1.00 x .020 (Dana part number)

$

$

Not available

11

Poulan 001423

Plain Washer .632 x 1.00 x .026 (Dana part number)

$

$

Not available

11

Poulan 001082

Plain Washer .632 x 1.00 x .031 (Dana part number)

$

$

Not available

11

Poulan 001424

Plain Washer .632 x 1.00 x .036 (Dana part number)

$

$

Not available

11

Poulan 001068

Plain Washer .632 x 1.00 x .041 (Dana part number)

$

$

Not available

11

Poulan 001425

Plain Washer .632 x 1.00 x .046 (Dana part number)

$

$

Not available

11

Poulan 001358

Plain Washer .632 x 1.00 x .050 (Dana part number)

$

$

Not available

11

Poulan 001145

Plain Washer .632 x 1.00 x .060 (Dana part number)

$

$

Not available

11

Poulan 001319

Plain Washer .632 x 1.00 x .082 (Dana part number)

$

$

Not available

11

Poulan 003312

O-Ring (Dana part number)

$

$

Not available

13

Poulan 531003876

Plain Washer .632 x 1.38 x .046

$

$

Not available

14

Poulan 530001374

Woodruff #9 Key

$

$

Not available

15

Poulan 004171

Input Shaft Assembly Kit (Dana part number)

$

$

Not available

16

Poulan 003725

14T Bevel Pinion (Dana part number)

$

$

Not available

17

Poulan 003624

Retaining Ring (Dana part number)

$

$

Not available

18

Poulan 003625

24 Pitches Chain (Dana part number)

$

$

Not available

19

Poulan 001542

Flange Bearing (Dana part number)

$

$

Not available

20

Poulan 003709

14T Spur Gear (Dana part number)

$

$

Not available

21

Poulan 003631

Clutch Collar (Dana part number)

$

$

Not available

22

Poulan 003828

Clutch Key (Dana part number)

$

$

Not available

23

Poulan 530001369

Woodruff #3 Key

$

$

Not available

24

Poulan 003976

Intermediate Shaft (Dana part number)

$

$

Not available

25

Poulan 001375

Woodruff #61 Key (Dana part number)

$

$

Not available

26

Poulan 003627

Retaining Ring (Dana part number)

$

$

Not available

27

Poulan 003830

18T Sprocket (Dana part number)

$

$

Not available

28

Poulan 003841

Spacer (Dana part number)

$

$

Not available

29

Poulan 003787

40T Spur Gear (Dana part number)

$

$

Not available

30

Poulan 530003785

35T Spur Gear

$

$

Not available

31

Poulan 003867

30T Spur Gear (Dana part number)

$

$

Not available

32

Poulan 530003783

25T Spur Gear

$

$

Not available

33

Poulan 003869

22T Spur Gear (Dana part number)

$

$

Not available

34

Poulan 003741

19T Spur Gear (Dana part number)

$

$

Not available

35

Poulan 003628

Plain Washer (Dana part number)

$

$

Not available

36

Poulan 001423

Plain Washer .632 x 1.00 x .026

Note: (Dana part number)

$

$

Not available

37

Poulan 003422

Spacer (Dana part number)

$

$

Not available

38

Poulan 004193

Comb. Gear Assembly (Dana part number)

$

$

Not available

39

Poulan 003967

Idler Shaft (Dana part number)

$

$

Not available

40

Poulan 530001708

Plain Washer

$

$

Not available

41

Poulan 003645

9T Sprocket (Dana part number)

$

$

Not available

42

Poulan 003589

42T Bevel Gear (Dana part number)

$

$

Not available

43

Poulan 003749

Plain Washer .758 x 1.12 x .010 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003652

Plain Washer .758 x 1.12 x .015 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003693

Plain Washer .758 x 1.12 x .020 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003653

Plain Washer .758 x 1.12 x .025 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003408

Plain Washer .758 x 1.12 x .020 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003732

Plain Washer .758 x 1.12 x .025 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003184

Plain Washer .758 x 1.12 x .031 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003733

Plain Washer .758 x 1.12 x .035 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003198

Plain Washer .758 x 1.12 x .040(Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003734

Plain Washer .758 x 1.12 x .045 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003735

Plain Washer .758 x 1.12 x .050 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

44

Poulan 003973

Drive Shaft (Dana part number)

$

$

Not available

45

Poulan 003724

Tapping Screw (Dana part number)

$

$

Not available

46

Poulan 003707

15T Spur Gear (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

47

Poulan 003866

20T Spur Gear (Dana part number)

$

$

Not available

48

Poulan 003719

25T Spur Gear (Dana part number)

$

$

Not available

49

Poulan 003868

28T Spur Gear (Dana part number)

$

$

Not available

50

Poulan 003683

31T Spur Gear (Dana part number)

$

$

Not available

51

Poulan 001145

Plain Washer (Dana part number)

$

$

Not available

52

Poulan 003191

Felt Seal (Dana part number)

$

$

Not available

53

Poulan 003180

Plain Washer (Dana part number)

$

$

Not available

54

Poulan 003880

L.H. Axle (Dana part number)

$

$

Not available

55

Poulan 003871

15T Miter Gear (Dana part number)

$

$

Not available

56

Poulan 003656

Retaining Ring (Dana part number)

$

$

Not available

57

Poulan 003839

32T Spur Gear (Dana part number)

$

$

Not available

58

Poulan 003919

Cross Shaft (Dana part number)

$

$

Not available

59

Poulan 003726

15T Miter Gear (Dana part number)

$

$

Not available

60

Poulan 003881

R.H. Axle (Dana part number)

$

$

Not available

61

Poulan 03864B

Lower Housing (AYP part number)

$

$

Not available

62

Poulan 003920

Friction Puck (Dana part number)

$

$

Not available

63

Poulan 003276

Brake Disc(Dana part number)

$

$

Not available

64

Poulan 003758

Spacer (Dana part number)

$

$

Not available

65

Poulan 003916

Brake Jaw (Dana part number)

$

$

Not available

66

Poulan 003843

Dowel Pin (Dana part number)

$

$

Not available

67

Poulan 003915

Tapping Screw (Dana part number)

$

$

Not available

68

Poulan 530003768

Actuating Lever

$

$

Not available

69

Poulan 530003760

Plain Washer

$

$

Not available

70

Poulan 003917

Anti-Rotation Bracket (Dana part number)

$

$

Not available

71

Poulan 003847

Locknut (Dana part number)

$

$

Not available

72

Poulan 004300

Grease (Dana part number)

$

$

Not available
