XEY 1142AR - Poulan Pro Lawn Tractor MOWER 38" Parts Diagram

Lawn Tractor

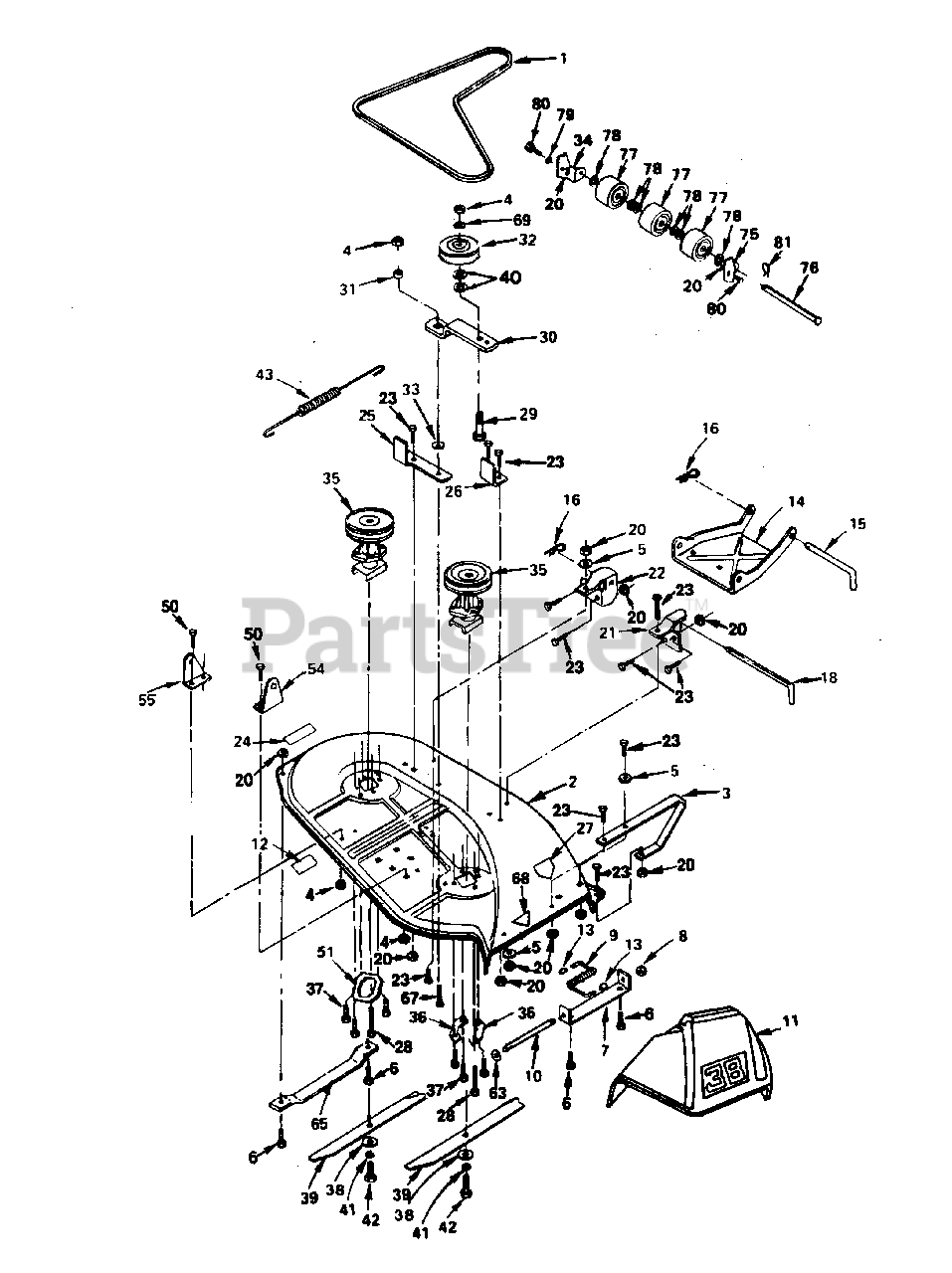

MOWER 38" Parts Diagram

  • Title

1

Poulan 532106085

V-Belt (AYP part number)

$43.99

$

Usually ships in 3-10 days

0

2

Poulan 532121458

Housing (AYP part number)
(Superseded to 532144726)

$

$

Not available

3

Poulan 532008417

R.H. Runner (AYP part number)
(Superseded to 532128772)

$

$

Not available

4

Poulan 873680600

Locknut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

5

Poulan 819111216

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

6

Poulan 872140505

Carriage Bolt (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532105896

Deflector Bolt (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

8

Poulan 532110452

Push Nut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 532106734

Deflector Spring (AYP part number)
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

10

Poulan 532106735

Hinge Rod (AYP part number)

$10.99

$

In Stock, only 1 left!

0

11

Poulan 532106736

Shield Deflector (AYP part number)

$

$

Not available

12

Poulan 532108682

V-Belt Schematic Decal (AYP part number)

$

$

Not available

13

Poulan 532105304

Sleeve Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 532105662

Parallel Link (AYP part number)

$

$

Not available

15

Poulan 532105744

Front Hinge Pin (AYP part number)

$

$

Not available

16

Poulan 532004921

Retainer Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532109835

Rear Hinge Pin (AYP part number)

$

$

Not available

20

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

21

Poulan 532109598

R.H. Lift Bracket (AYP part number)

$

$

Not available

22

Poulan 532109597

L.H. Lift Bracket (AYP part number)

$

$

Not available

23

Poulan 872140506

Carriage Bolt 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 532003713

Caution Instruction Decal (AYP part number)

$

$

Not available

25

Poulan 532109503

Arm Support (AYP part number)

$

$

Not available

26

Poulan 532109504

Front Deck Stop (AYP part number)

$

$

Not available

28

Poulan 817490620

Washer Hd. Hex Screw (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

29

Poulan 874760636

Bolt 3/8-16 x 2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 532123552

Idler Arm (AYP part number)

$

$

Not available

31

Poulan 532106902

Spacer (AYP part number)

$2.99

$

In Stock, only 2 left!

0

32

Poulan 532121316

Idler Pulley (AYP part number)

$51.99

$

In Stock, only 4 left!

0

33

Poulan 532106513

Wear Washer (AYP part number)

$6.99

$

In Stock, only 4 left!

0

34

Poulan 532109646

L.H. Nose Roller Bracket (AYP part number)

$

$

Not available

35

Poulan 532121687

Mandrel Assembly (AYP part number)

$

$

Not available

36

Poulan 532100668

Mandrel Support Plate (AYP part number)

$

$

Not available

37

Poulan 817490614

Washer Hd. Hex Screw (AYP part number)

$

$

Not available

38

Poulan 819132012

Washer (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

39

Poulan 532121263

Blade 38"
(Superseded to 532143978)

$28.99

$

Usually ships in 3-10 days

0

40

Poulan 819131210

Washer (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

41

Poulan 810030600

Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

42

Poulan 874610624

Hex Bolt 3/8-24 x 1-1/2 Gr.5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

43

Poulan 532102727

Extension Spring (AYP part number)

$

$

Not available

50

Poulan 872140606

Carriage Bolt 3/8-16 x 3/4 (AYP part number)

$

$

Not available

51

Poulan 532110445

Support Plate (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

54

Poulan 532105857

R.H. Rear Bracket Suspension (AYP part number)

$

$

Not available

55

Poulan 532108673

L.H. Rear Bracket Suspension (AYP part number)

$

$

Not available

63

Poulan 819111016

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

65

Poulan 532125074

L.H. Runner (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

67

Poulan 872140610

Carriage Bolt (AYP part number)
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

68

Poulan 532121343

Warning Decal (AYP part number)

$

$

Not available

69

Poulan 819131316

Washer (AYP part number)

$4.99

$

In Stock, Qty 5

0

75

Poulan 532109647

R.H. Nose Roller Bracket

$

$

Not available

76

Poulan 532109776

Pivot Pin (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

77

Poulan 532109729

Nose Roller (AYP part number)
(Superseded to 109729X)

$

$

Not available

78

Poulan 819151610

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

79

Poulan 819151616

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

80

Poulan 874760512

Hex Bolt (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

81

Poulan 876020412

Cotter Pin (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0
