XEY 1142AR - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

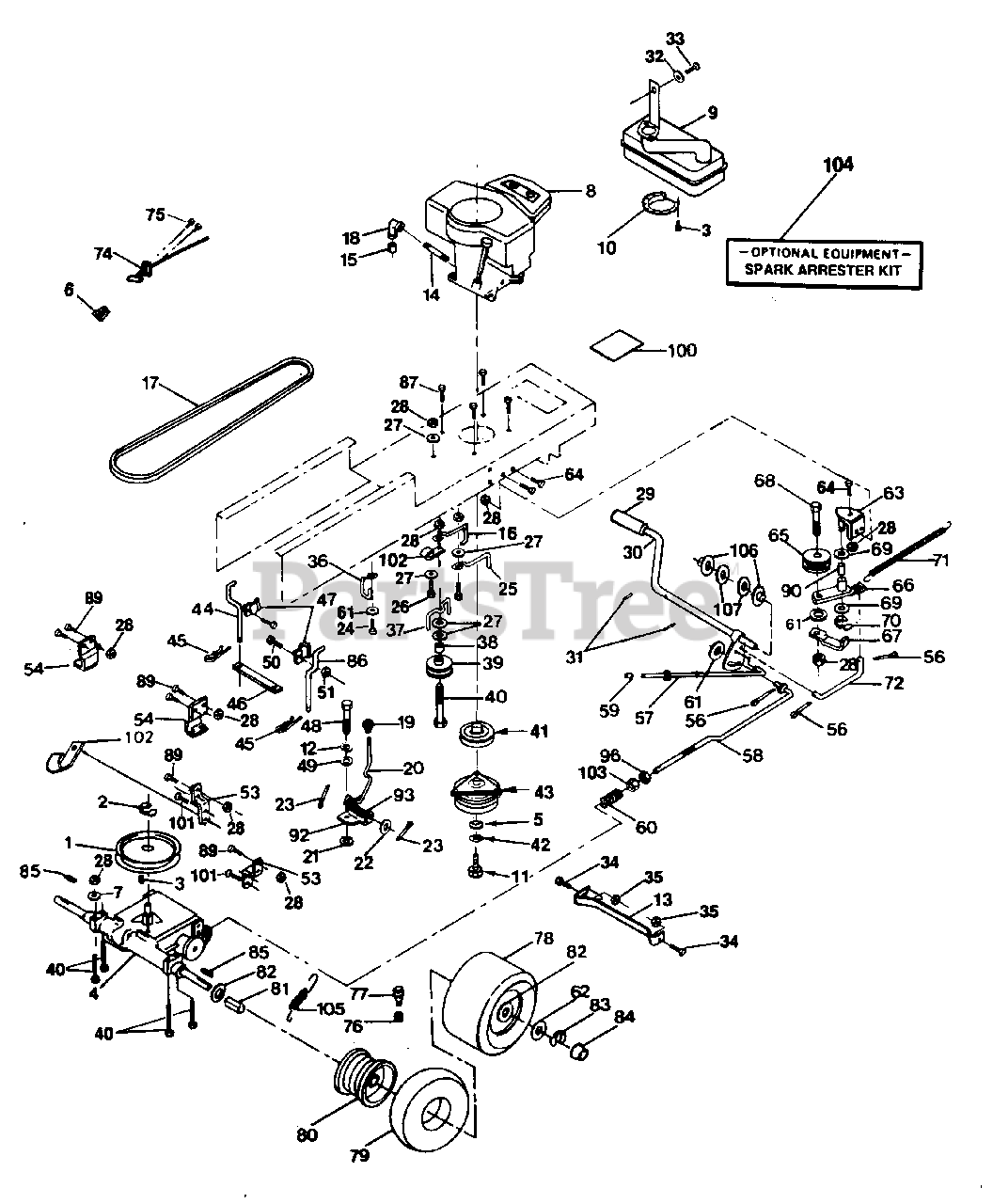

DRIVE Parts Diagram

  • Title

1

Poulan 532123666

Transaxle (Driven) Pulley (AYP part number)

$45.99

$

In Stock, only 1 left!

0

2

Poulan 812000028

Retainer Ring (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

3

Poulan 817030808

Spider Lock Screw (AYP part number)
(Superseded to 817030814)

$

$

Not available

4

Poulan 532124162

Foote Dana 6-speed Transaxle, Model No. 4360-19 (AYP part number)

$

$

Not available

5

Poulan 532108252

Washer (AYP part number)

$

$

Not available

6

Poulan 532061159

Throttle Control Knob (AYP part number)

$

$

Not available

7

Poulan 819111214

Washer (AYP part number)

$

$

Not available

8

Poulan 532124080

14HP Kohler Command Engine

$

$

Not available

9

Poulan 532124196

Muffler (AYP part number)

$

$

Not available

10

Poulan 532101326

Muffler Deflector (AYP part number)
(Superseded to 101326L)

$

$

Not available

11

Poulan 532125005

Hex Bolt (AYP part number)
(Superseded to 747810100)

$

$

Not available

12

Poulan 810040400

Lock Washer 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

13

Poulan 532109169

Clutch Retainer (AYP part number)
(Superseded to 532109172)

$

$

Not available

14

Poulan 813280320

Pipe Nipple (AYP part number)

$

$

Not available

15

Poulan 813300300

Pipe Coupling (AYP part number)

$

$

Not available

17

Poulan 532120302

Drive V-Belt (AYP part number)

$

$

Not available

18

Poulan 813200300

Elbow (AYP part number)
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

19

Poulan 532121274

Knob (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

20

Poulan 532124461

Shifter Rod (AYP part number)

$

$

Not available

21

Poulan 532105701

Shift Plate Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 819151216

Washer (AYP part number)
(Superseded to 19151216)

$

$

Not available

23

Poulan 876020416

Cotter Pin 1/8 x 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 817490612

Thread Roll Washer Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

25

Poulan 532105730

Engine Belt Keeper (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 874760616

Hex Bolt 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 819131312

Washer (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

28

Poulan 873680600

Locknut
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

29

Poulan 532124872

Pedal Cover (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 532122424

Foot Pedal Shaft (AYP part number)

$

$

Not available

31

Poulan 532001572

Roll Pin (AYP part number)
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

32

Poulan 810040500

Lock Washer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 874760508

Hex Bolt (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 532104777

Belt Retainer (AYP part number)
(Superseded to 532136715)

$

$

Not available

37

Poulan 532109070

Belt Keeper (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532004470

Spacer (AYP part number)
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 532123674

Flat Idler (AYP part number)

$31.99

$

In Stock, only 1 left!

0

40

Poulan 874760644

Hex Bolt 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532109841

Engine Pulley (AYP part number)
(Superseded to 532136905)

$42.99

$

Usually ships in 3-10 days

0

42

Poulan 810040700

Lock Washer 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 532108218

Electric Clutch (AYP part number)
(Superseded to 532142600)

$

$

Not available

44

Poulan 532123662

L.H. Belt Keeper (AYP part number)

$

$

Not available

45

Poulan 532004921

Spring Retainer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

46

Poulan 532123770

Locator Strap (AYP part number)

$

$

Not available

47

Poulan 532106190

Clamp (AYP part number)

$

$

Not available

48

Poulan 871040412

Hex Bolt 1/4-28 x 3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 819091210

Washer (AYP part number)
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

50

Poulan 874760512

Hex Bolt 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

51

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Poulan 532121520

Torque Strap (AYP part number)

$7.99

$

In Stock, only 3 left!

0

54

Poulan 532109167

Transaxle Bracket (AYP part number)

$

$

Not available

56

Poulan 876020412

Cotter Pin (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

57

Poulan 532105844

Park Brake Rod (AYP part number)

$

$

Not available

58

Poulan 532110437

Brake Rod (AYP part number)
(Superseded to 532131867)

$

$

Not available

59

Poulan 532071673

Cap (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

60

Poulan 532106888

Brake Rod Spring (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

61

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

62

Poulan 532121748

Washer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

63

Poulan 532123102

Clutch Bracket (AYP part number)

$11.99

$

Usually ships in 3-10 days

0

64

Poulan 872140606

Carriage Bolt (AYP part number)

$

$

Not available

65

Poulan 532123766

Idler Pulley (AYP part number)
(Superseded to 532127783)

$37.99

$

In Stock, only 1 left!

0

66

Poulan 532123789

Idler Arm (AYP part number)

$

$

Not available

67

Poulan 532123205

Belt Retainer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 874760624

Hex Bolt 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

69

Poulan 532110812

Hardened Washer (AYP part number)
(Superseded to 110812X)

$

$

Not available

70

Poulan 812000039

Klip Ring (AYP part number)

$6.49

$

In Stock, Qty 7

0

71

Poulan 532105709

Clutch Return Spring (AYP part number)

$11.99

$

In Stock, only 2 left!

0

72

Poulan 532105710

Clutch Link (AYP part number)
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

74

Poulan 532121275

Throttle Control (AYP part number)

$

$

Not available

75

Poulan 817720410

Thread Cutting Hex Screw (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

76

Poulan 532059192

Valve Cap (AYP part number)

$7.49

$

In Stock, Qty 9

0

77

Poulan 532065139

Valve Stem (AYP part number)

$9.99

$

In Stock, only 3 left!

0

78

Poulan 532106268

Rear Tire (AYP part number)
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

79

Poulan 532007152

Tube (Not furnished with Tractor) (AYP part number)

$74.99

$

Usually ships in 3-10 days

0

80

Poulan 532124789

Rim (AYP part number)
(Superseded to 532125122)

$145.99

$

Usually ships in 3-10 days

0

81

Poulan 532109502

Split Spacer (AYP part number)

$

$

Not available

82

Poulan 532121749

Washer (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

83

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

84

Poulan 532104757

Rear Hub Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

85

Poulan 532123583

Square Key (AYP part number)

$4.99

$

In Stock, Qty 7

0

86

Poulan 532123663

R.H. Belt Keeper (AYP part number)

$

$

Not available

87

Poulan 532125006

Screw

$

$

Not available

89

Poulan 874760612

Hex Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

90

Poulan 532105706

Bearing (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

92

Poulan 532106919

Shifter Plate Assembly (AYP part number)

$

$

Not available

93

Poulan 532105700

Torsion Spring (AYP part number)

$

$

Not available

96

Poulan 873350600

Hex Jam Nut 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

98

Poulan 819132012

Washer (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

100

Poulan 532121120

Decal (AYP part number)

$

$

Not available

101

Poulan 817490512

Thread Roll Washer Hex Screw
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

102

Poulan 532124996

Fuel Line Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

103

Poulan 873800600

Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

104

Poulan 532100091

Spark Arrestor Kit (AYP part number)

$

$

Not available

105

Poulan 532110422

Return Brake Spring (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

106

Poulan 532120183

Nylon Bearing (AYP part number)

$6.99

$

In Stock, only 4 left!

0

107

Poulan 819211616

Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
