XEY 1142AR - Poulan Pro Lawn Tractor CHASSIS AND ENCLOSURE Parts Diagram

Lawn Tractor

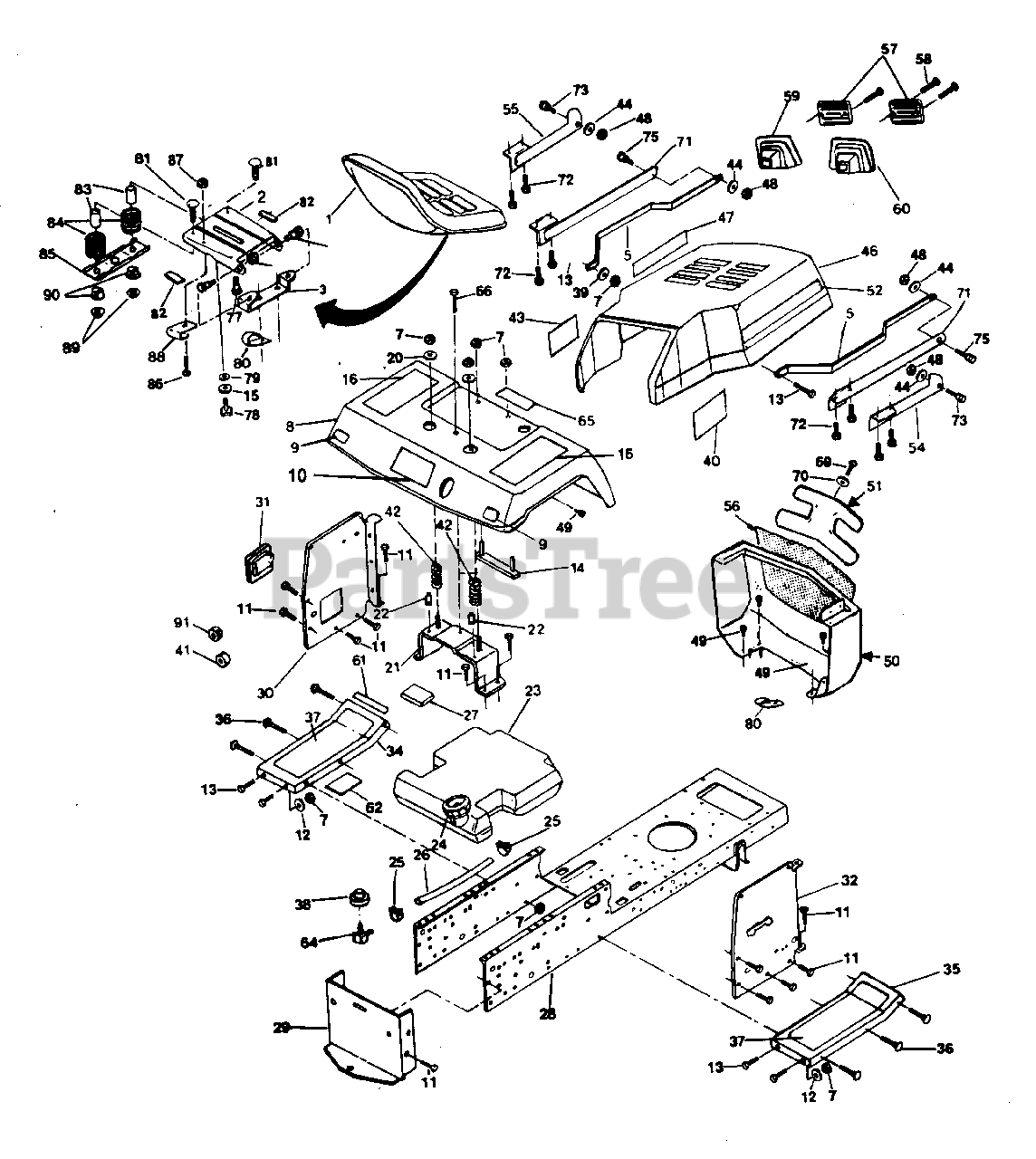

CHASSIS AND ENCLOSURE Parts Diagram

  • Title

1

Poulan 532121442

Seat (AYP part number)
(Superseded to 532127514)

$

$

Not available

2

Poulan 532121247

Seat Pan (AYP part number)
(Superseded to 532131451)

$

$

Not available

3

Poulan 532105513

Seat Pivot Bracket (AYP part number)
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532105529

Shoulder Bolt (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

5

Poulan 532122196

Grill Brace (AYP part number)

$

$

Not available

6

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 873680600

Locknut
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

8

Poulan 532124977

Fender (AYP part number)

$

$

Not available

9

Poulan 532106202

Rear Reflector (AYP part number)

$

$

Not available

10

Poulan 532125710

Poulan Decal (AYP part number)

$

$

Not available

11

Poulan 817490612

Thread Roll Washer Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

12

Poulan 819131312

Washer (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

13

Poulan 874760612

Hex Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

14

Poulan 532105511

Fender Strap (AYP part number)
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

15

Poulan 819171912

Washer (AYP part number)

$7.49

$

In Stock, only 1 left!

0

16

Poulan 532124226

6-speed Decal (AYP part number)

$

$

Not available

20

Poulan 819131614

Washer (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 532105509

Fender Bracket (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

22

Poulan 532105531

Push Nut (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

23

Poulan 532106020

Fuel Tank (AYP part number)

$

$

Not available

24

Poulan 532123549

Fuel Cap (AYP part number)
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

25

Poulan 532123487

Hose Clamp (AYP part number)

$7.49

$

In Stock, only 4 left!

0

26

Poulan 532005277

Fuel Line (AYP part number)
(Superseded to 532008542)

$

$

Not available

27

Poulan 532106082

Spacer Pad (AYP part number)

$

$

Not available

28

Poulan 532121277

Chassis Assembly (AYP part number)

$

$

Not available

29

Poulan 532121306

Drawbar (AYP part number)
(Superseded to 532137275)

$

$

Not available

30

Poulan 532124118

L.H. Dash Panel (AYP part number)
(Superseded to 124118X)

$

$

Not available

31

Poulan 532121794

Access Cover (AYP part number)
(Superseded to 121794X)

$

$

Not available

32

Poulan 532110828

R.H. Dash Panel (AYP part number)

$

$

Not available

34

Poulan 532125041

L.H. Footrest (AYP part number)
(Superseded to 532102326)

$

$

Not available

35

Poulan 532125037

R.H.Footrest (AYP part number)

$

$

Not available

36

Poulan 872140606

Carriage Bolt (AYP part number)

$

$

Not available

37

Poulan 532108256

Footrest Pad (AYP part number)

$

$

Not available

38

Poulan 532003645

Bushing (Dana part number) (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 819131416

Washer 13/32 x 7/8 x 16 Ga. (AYP part number)
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

40

Poulan 532124274

R.H. 14HP Decal

$

$

Not available

41

Poulan 532009151

Grommet (AYP part number)

$

$

Not available

42

Poulan 532124181

Compression Seat Spring (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

43

Poulan 532124273

L.H. 14HP Decal (AYP part number)

$

$

Not available

44

Poulan 819090816

Washer (AYP part number)

$

$

Not available

46

Poulan 532124909

Hood (AYP part number)

$

$

Not available

47

Poulan 532125714

L.H.Hood Decal (AYP part number)

$

$

Not available

48

Poulan 873680400

Crownlock Nut (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

49

Poulan 817490608

Thread Roll Washer Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 532124920

Grill

$

$

Not available

51

Poulan 532124227

Grill Insert

$103.99

$

Usually ships in 3-10 days

0

52

Poulan 532125715

R.H. Hood Decal (AYP part number)

$

$

Not available

54

Poulan 532125095

R.H. Hinge Strap Assembly (AYP part number)

$

$

Not available

55

Poulan 532124918

L.H. Hinge Strap Assembly (AYP part number)

$

$

Not available

56

Poulan 532101234

Grill Screen (AYP part number)

$

$

Not available

57

Poulan 532109671

Lens (AYP part number)

$

$

Not available

58

Poulan 817990808

Pan Head Cross Screw (AYP part number)

$

$

Not available

59

Poulan 532124910

L.H. Bezel (AYP part number)

$

$

Not available

60

Poulan 532125069

R.H. Bezel (AYP part number)

$

$

Not available

61

Poulan 532004900

Clutch/Brake Decal (AYP part number)

$

$

Not available

62

Poulan 532109199

Drive Belt Decal (AYP part number)

$

$

Not available

64

Poulan 532008710

Fuel Tank Stem (AYP part number)

$

$

Not available

65

Poulan 532106974

Caution Decal (AYP part number)

$

$

Not available

66

Poulan 817490616

Thread Roll Washer Hex Screw (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 817511208

Slotted Hex Screw (AYP part number)

$

$

Not available

70

Poulan 532008019

Washer (AYP part number)

$

$

Not available

71

Poulan 532124921

Rear Hinge Strap Assembly (AYP part number)

$

$

Not available

72

Poulan 817411310

Washer Head Hex Screw (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

73

Poulan 532124815

Shoulder Bolt (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

75

Poulan 532124549

Shoulder Bolt (AYP part number)

$

$

Not available

77

Poulan 532121144

Shoulder Bolt (AYP part number)
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

78

Poulan 532120068

Seat Knob 1/2 (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

79

Poulan 810040800

Lock Washer 1/2 (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

80

Poulan 532124996

Fuel Line Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

81

Poulan 872170410

Carriage Bolt (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

82

Poulan 532121251

Foam Strips (AYP part number)

$

$

Not available

83

Poulan 532121249

Spacer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

84

Poulan 532121250

Compression Spring (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

85

Poulan 532121246

Bracket Switch (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

86

Poulan 874641008

Pan Hd. Slotted Screw (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

87

Poulan 873951000

Keps Nut (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

88

Poulan 532004171

Insulated Clip (AYP part number)
(Superseded to 532124967)

$

$

Not available

89

Poulan 532123976

Flanged Locknut (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

90

Poulan 532121248

Snap Bushing (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

91

Poulan 532110436

Split Grommet (AYP part number)
(Superseded to 532009151)

$

$

Not available
