XEL 1122AR - Poulan Pro Lawn Tractor TRANSAXLE AND REAR WHEEL Parts Diagram

Lawn Tractor

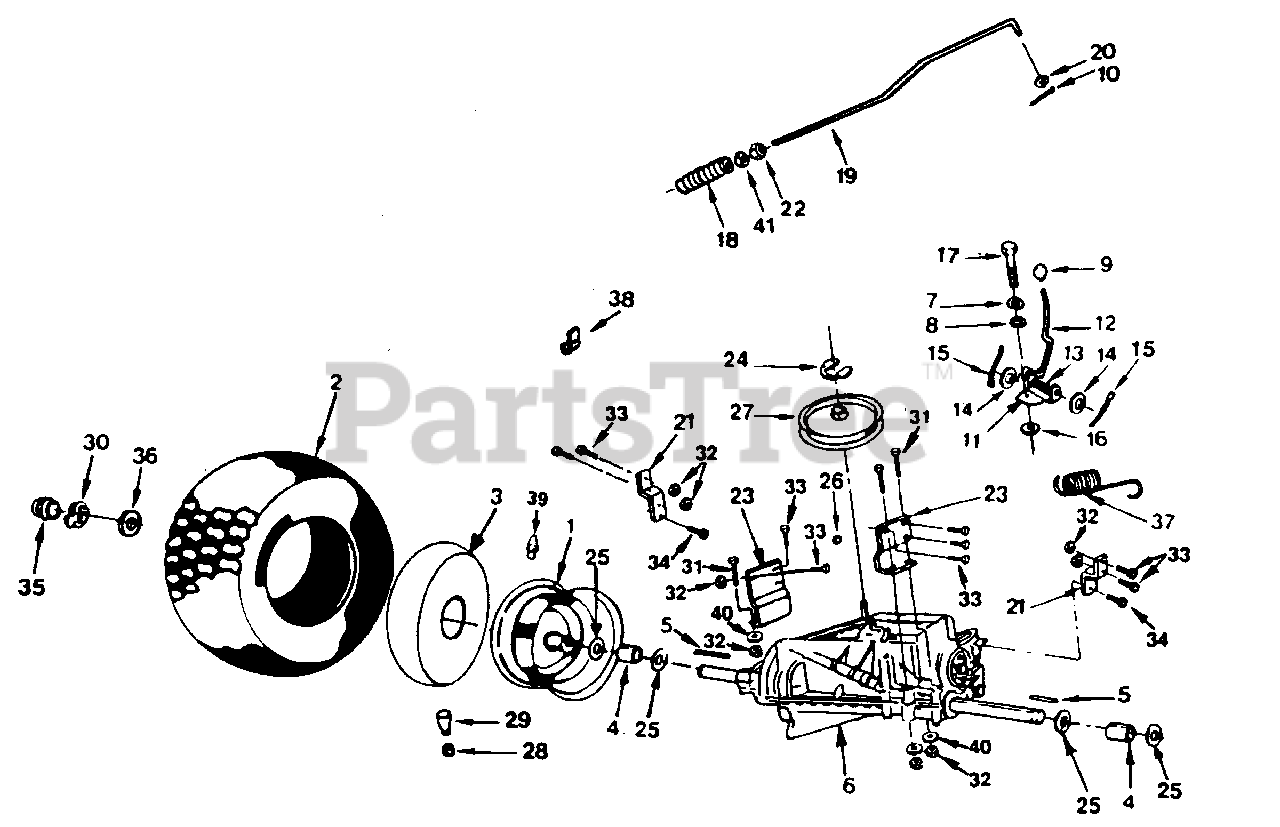

TRANSAXLE AND REAR WHEEL Parts Diagram

  • Title

1

Poulan 532106272

Rear Rim Assembly (AYP part number)

$

$

Not available

2

Poulan 532106268

Tire (Tubeless) (AYP part number)
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

3

Poulan 532007152

Tire Tube (Not furnished with Tractor) (AYP part number)

$74.99

$

Usually ships in 3-10 days

0

4

Poulan 532109502

Split Spacer (AYP part number)

$

$

Not available

5

Poulan 532123583

Square Key (AYP part number)

$4.99

$

In Stock, only 3 left!

0

6

Poulan 532120898

6-speed Foote Dana Transaxle (Model No. 4360-7) (AYP part number)

$

$

Not available

7

Poulan 810040400

Lock Washer 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

8

Poulan 819091210

Washer (AYP part number)
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532121274

Control Knob (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

10

Poulan 876020412

Cotter Pin (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532106919

Shift Rod Plate (AYP part number)

$

$

Not available

12

Poulan 532124461

Shifter Rod (AYP part number)

$

$

Not available

13

Poulan 532105700

Torsion Spring (AYP part number)

$

$

Not available

14

Poulan 819151216

Washer (AYP part number)
(Superseded to 19151216)

$

$

Not available

15

Poulan 876020416

Cotter Pin 1/8 x 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 532105701

Shift Plate Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 871040412

Hex Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532106888

Brake Rod Spring (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

19

Poulan 532110437

Brake Rod (AYP part number)
(Superseded to 532131867)

$

$

Not available

20

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

21

Poulan 532121520

Torque Strap (AYP part number)

$7.99

$

In Stock, only 3 left!

0

22

Poulan 873350600

Jam Hex Nut (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

23

Poulan 532109167

Transaxle Bracket (AYP part number)

$

$

Not available

24

Poulan 812000028

Retainer Ring (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

25

Poulan 532121749

Washer (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

27

Poulan 532123666

Transaxle Input Pulley (AYP part number)

$45.99

$

In Stock, only 1 left!

0

28

Poulan 532059192

Valve Cap (AYP part number)

$7.49

$

In Stock, Qty 9

0

29

Poulan 532065139

Valve Stem (AYP part number)

$9.99

$

In Stock, only 1 left!

0

30

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 874760644

Hex Bolt 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 873680600

Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

33

Poulan 874760612

Hex Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

34

Poulan 817490512

Thd. Form Washer Hd. Hex Screw
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Poulan 532104757

Rear Hub Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

36

Poulan 532121748

Washer (AYP part number)

$4.99

$

In Stock, Qty 10

0

37

Poulan 532110422

Brake Return Spring (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

38

Poulan 532124996

Fuel Line Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

39

Poulan 532000278

Grease Fitting (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

40

Poulan 819111214

Washer (AYP part number)

$

$

Not available

41

Poulan 873800600

Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
