XEL 1122AR - Poulan Pro Lawn Tractor STEERING, FRONT AXLE AND WHEELS Parts Diagram

Lawn Tractor

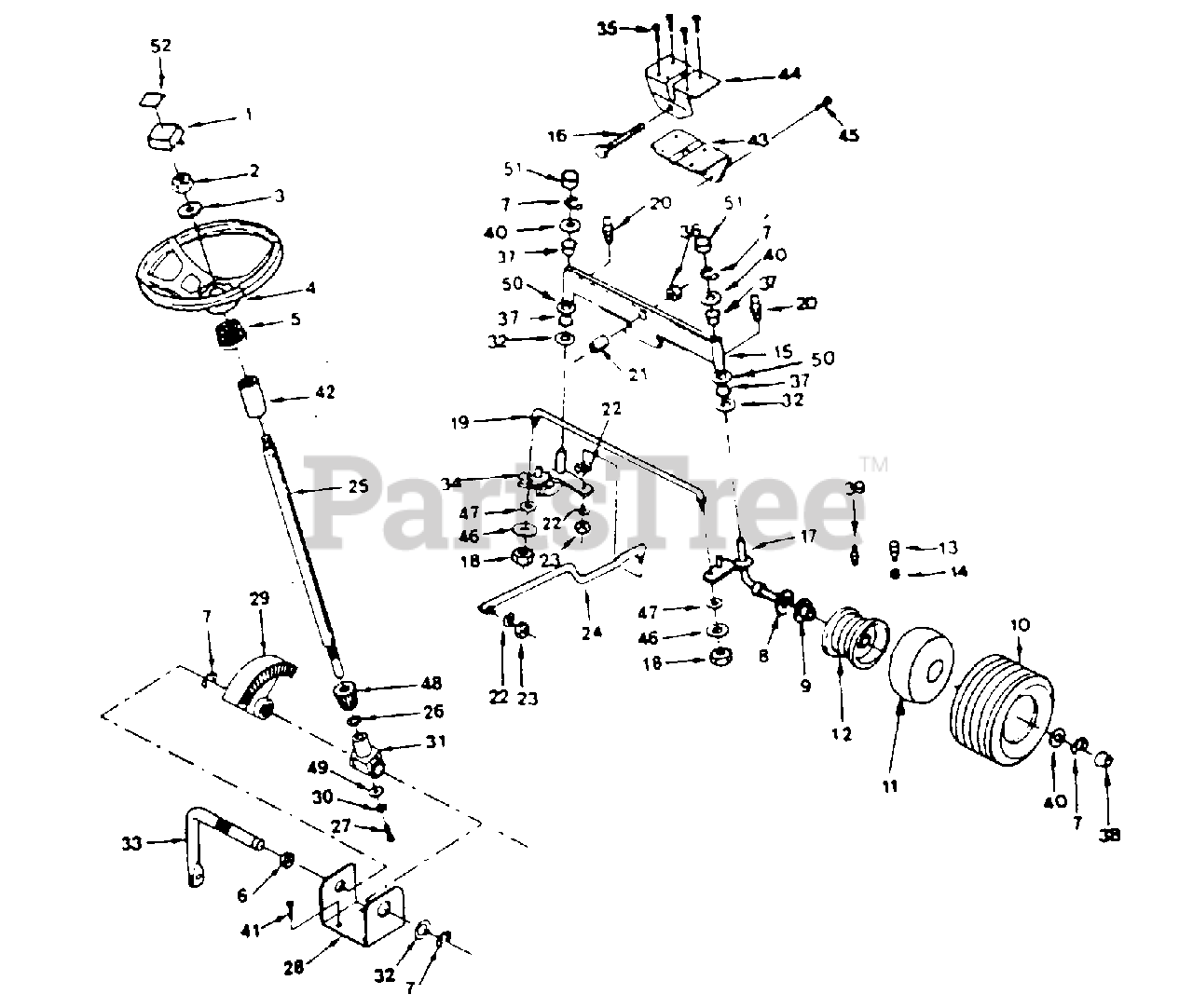

STEERING, FRONT AXLE AND WHEELS Parts Diagram

  • Title

1

Poulan 532100710

Steering Wheel Insert (AYP part number)

$

$

Not available

2

Poulan 873940800

Toplock Jam Hex Nut (AYP part number)

$7.49

$

In Stock, only 4 left!

0

3

Poulan 532100712

Washer (AYP part number)

$

$

Not available

4

Poulan 532100713

Steering Wheel (AYP part number)
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

5

Poulan 532110711

Steering Wheel Adaptor (AYP part number)
(Superseded to 532100711)

$9.49

$

In Stock, Qty 6

0

6

Poulan 532109816

Snap-In Nyliner (AYP part number)

$6.49

$

In Stock, only 2 left!

0

7

Poulan 812000029

Klip Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 532121749

Washer (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 532009040

Front Wheel Bearings

$7.99

$

In Stock, Qty 20+

0

10

Poulan 532106222

Tire (AYP part number)
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Poulan 532059904

Tube (Not furnished w/Tractor)

$37.99

$

In Stock, Qty 7

0

12

Poulan 532125021

6 "Front Rim Assembly (AYP part number)
(Superseded to 532106732)

Note: (Includes 2 each Key No. 9)

$91.99

$

In Stock, only 4 left!

0

13

Poulan 532065139

Valve Stem (AYP part number)

$9.99

$

In Stock, only 1 left!

0

14

Poulan 532059192

Value Cap (AYP part number)

$7.49

$

In Stock, Qty 9

0

15

Poulan 532108076

Front Axle Assembly (AYP part number)
(Superseded to 532108075)

$

$

Not available

16

Poulan 874761060

Hex Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532105654

R.H. Spindle Assembly (AYP part number)
(Superseded to 532130524)

$

$

Not available

18

Poulan 873810500

Hex Nut (AYP part number)
(Superseded to 873610500)

$

$

Not available

19

Poulan 532121334

Tie Rod (AYP part number)
(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

20

Poulan 532124836

Grease Fitting (AYP part number)
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0

21

Poulan 532110438

Front Axle Bearing Spacer (AYP part number)
(Superseded to 532155134)

$

$

Not available

22

Poulan 810040600

Lock Washer 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

23

Poulan 873610600

Hex Nut 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 532124032

Drag Link (AYP part number)
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

25

Poulan 532124041

Steering Shaft (AYP part number)

$

$

Not available

26

Poulan 532057079

Washer (AYP part number)

$6.49

$

In Stock, Qty 10

0

27

Poulan 871070410

Socket Hex Screw (AYP part number)
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

28

Poulan 532124036

Steering Bracket Assembly (AYP part number)

$

$

Not available

29

Poulan 532124034

Sector Gear (AYP part number)
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

30

Poulan 810040400

Lock Washer (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

31

Poulan 532124035

Shaft Support (AYP part number)
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

32

Poulan 532124931

Thrust Bearing (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

33

Poulan 532124033

Pitman Shaft (AYP part number)
(Superseded to 532127501)

$

$

Not available

34

Poulan 532105656

L.H. Spindle Assembly (AYP part number)
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

35

Poulan 532122819

Thd. Form Washer Hd. Hex Screw (AYP part number)

$

$

Not available

36

Poulan 873901000

Flange Nut (AYP part number)
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 532003366

Bearing (AYP part number)

$4.99

$

In Stock, Qty 19

0

38

Poulan 532104757

Front Hub Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

39

Poulan 532000278

Grease Fitting (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

40

Poulan 532121748

Washer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

41

Poulan 817490612

Thd. Form. Washer Hd. Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

42

Poulan 532100714

Steering Shaft Tube (AYP part number)

$

$

Not available

43

Poulan 532105664

Front Saddle Support (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

44

Poulan 532105663

Rear Saddle Support (AYP part number)

$

$

Not available

45

Poulan 817490508

Thd. Roll. Washer Hd., Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 810040500

Lock Washer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 819111216

11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

48

Poulan 532124037

Pinion Gear (AYP part number)

$

$

Not available

49

Poulan 819091116

Washer (AYP part number)

$

$

Not available

50

Poulan 819272016

Washer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

51

Poulan 532121232

Spindle Cap (AYP part number)

$4.99

$

In Stock, Qty 8

0

52

Poulan 532124234

Steering Decal (AYP part number)

$

$

Not available
