XEL 1122AR - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

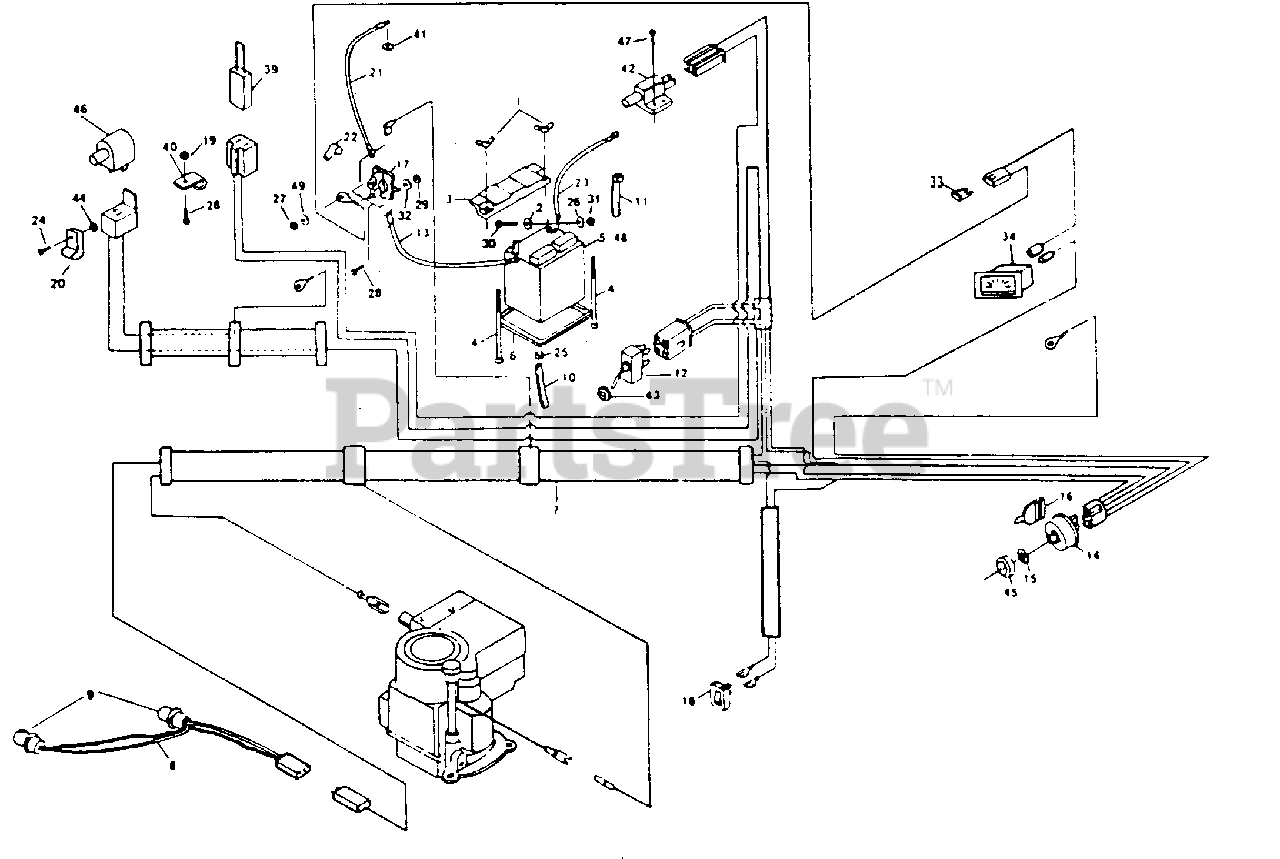

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532123198

Wing Nut 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

2

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

3

Poulan 532102476

Terminal Guard (AYP part number)
(Superseded to 532150109)

$

$

Not available

4

Poulan 872240460

Carriage Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 532121265

12V Battery (Shipped dry: purchase battery acid locally) (AYP part number)
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

6

Poulan 532124886

Battery Tray (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Poulan 532124262

Ignition Harness

$

$

Not available

8

Poulan 532110859

Light Socket Harness (AYP part number)

$

$

Not available

9

Poulan 532004152

Light Bulb (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532100541

Battery Tube Tray (AYP part number)
(Superseded to 532007697)

$

$

Not available

11

Poulan 532124756

Cable Tie (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

12

Poulan 532004021

PTO Switch (AYP part number)

$

$

Not available

13

Poulan 532108423

Battery Cable (Battery to Solenoid) (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

14

Poulan 532125104

Ignition Switch (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

15

Poulan 532109788

Ignition Nut (AYP part number)
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

16

Poulan 532122147

Key (AYP part number)

$

$

Not available

17

Poulan 532109081

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

18

Poulan 532110712

Light Switch (AYP part number)

$9.49

$

In Stock, only 4 left!

0

19

Poulan 873680400

Hex Nut 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

20

Poulan 532004171

Wire Clip (AYP part number)
(Superseded to 532124967)

$

$

Not available

21

Poulan 532124780

Battery Cable (Solenoid to Starter) (AYP part number)
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 532124783

Terminal Cover (For Solenoid) (AYP part number)
(Superseded to 532131563)

$8.99

$

In Stock, only 2 left!

0

23

Poulan 532124773

Battery Cable (To Ground) (AYP part number)
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

24

Poulan 874641008

Pan Head Screw (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

25

Poulan 532109596

Hose Clamp (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 810040400

Lock Washer 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

27

Poulan 873350400

Jam Hex Nut 1/4 x 20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

28

Poulan 874780408

Hex Bolt 1/4-20 x 1/2 Gr. 5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

29

Poulan 873510400

Keps Hex Nut 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

30

Poulan 874760412

Hex Bolt 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

31

Poulan 873220400

Hex Nut 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 811050400

Int. Tooth Lock Washer (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

33

Poulan 532108824

30 Amp Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 532122822

Ammeter (AYP part number)

$20.99

$

In Stock, only 1 left!

0

39

Poulan 532102501

Wire Loop (AYP part number)

$

$

Not available

40

Poulan 532124995

Insulated Clip (AYP part number)

$

$

Not available

41

Poulan 811050600

Ext. Tooth Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

42

Poulan 532104445

Clutch Pedal Interlock Switch (AYP part number)

$17.99

$

In Stock, only 1 left!

0

43

Poulan 532004022

Hex Nut (AYP part number)

$

$

Not available

44

Poulan 873951000

Keps Nut #10-32 UNF (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

45

Poulan 532109787

Ignition Bezel (AYP part number)
(Superseded to 532147626)

$7.49

$

Usually ships in 3-10 days

0

46

Poulan 532121305

Plunger Switch (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

47

Poulan 817021008

Tapping Hex Screw (AYP part number)

$4.99

$

In Stock, Qty 14

0

48

Poulan 532121264

Battery Caps Set (AYP part number)

$

$

Not available

49

Poulan 810090400

Lock Washer (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

Poulan 532124277

English Owner's Manual (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532124278

English Parts Manual

Note: Not Shown.

$

$

Not available

Poulan 532101539

Tractor Instruction Sheet 15 Degree Slope, English (AYP part number)

Note: Not Shown.

$

$

Not available
