XEL 1120AR - Poulan Pro Lawn Tractor MOWER 38" Parts Diagram

Lawn Tractor

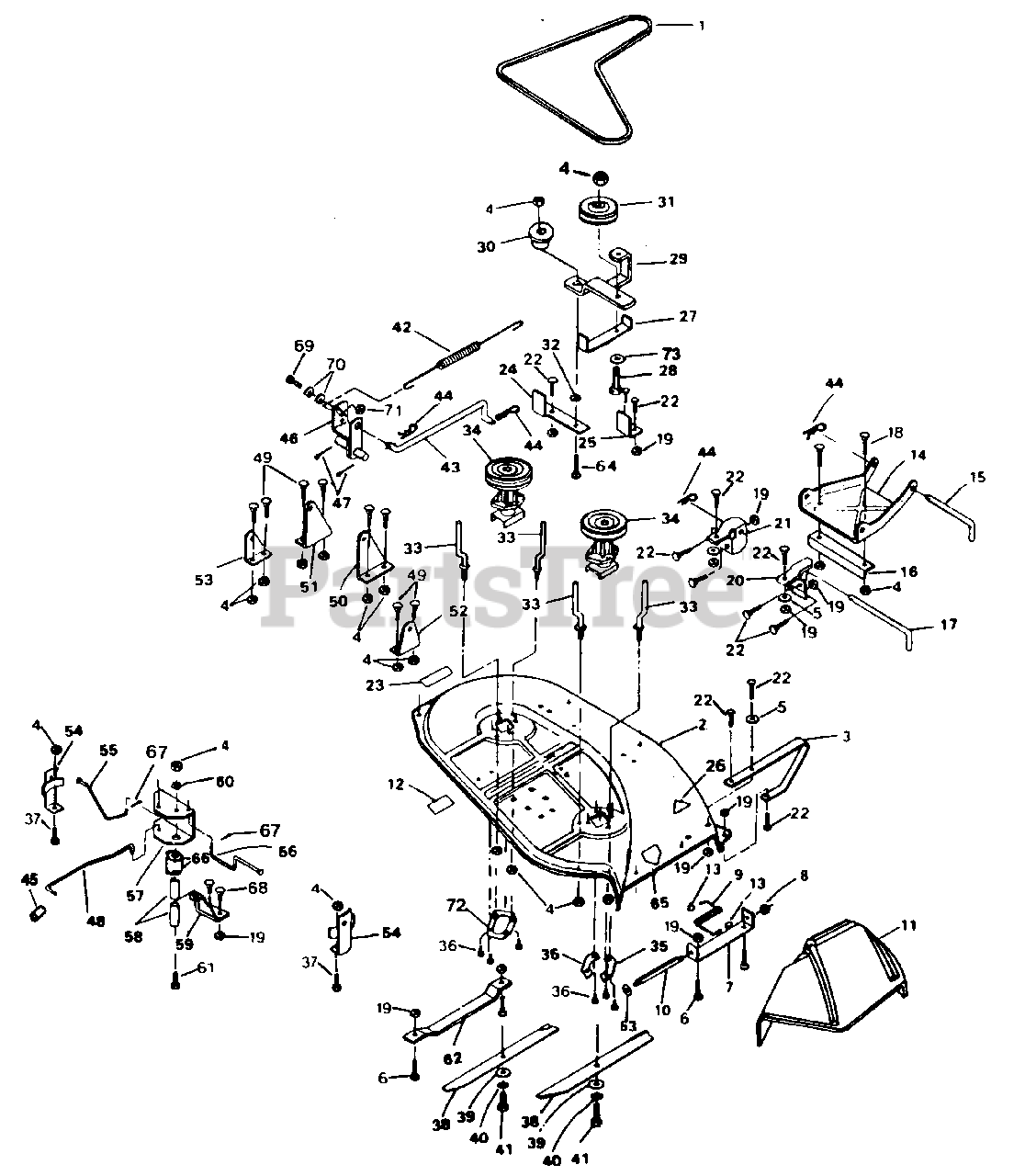

MOWER 38" Parts Diagram

  • Title
1

Poulan 532106085

V-Belt (AYP part number)

$43.99

$

Usually ships in 3-10 days

0

2

Poulan 532121259

Housing (AYP part number)
(Superseded to 532144725)

$

$

Not available

3

Poulan 532008417

R.H. Runner (AYP part number)
(Superseded to 532128772)

$

$

Not available

4

Poulan 873680600

Crownlock Nut
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

5

Poulan 819111216

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

6

Poulan 872140505

Carriage Bolt (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532105896

Deflector Bracket (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

8

Poulan 532110452

Pushnut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 532106734

Deflector Spring (AYP part number)
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

10

Poulan 532106735

Hinge Rod (AYP part number)

$10.99

$

In Stock, only 1 left!

0

11

Poulan 532106736

Shield Deflector (AYP part number)

$

$

Not available

12

Poulan 532105814

V-Belt Mower Drive Decal (AYP part number)

$

$

Not available

13

Poulan 532105304

Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 532105662

Parallel Link (AYP part number)

$

$

Not available

15

Poulan 532105744

Front Hinge Pin (AYP part number)

$

$

Not available

16

Poulan 532105872

Link Stop (AYP part number)

$

$

Not available

17

Poulan 532109835

Rear Hinge Pin (AYP part number)

$

$

Not available

18

Poulan 874760612

Bolt (AYP part number)

$4.99

$

In Stock, only 3 left!

0

19

Poulan 873680500

Crownlock Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532109598

R.H. Lift Bracket (AYP part number)

$

$

Not available

21

Poulan 532109597

L.H. Lift Bracket (AYP part number)

$

$

Not available

22

Poulan 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532003713

Caution Instruction Decal (AYP part number)

$

$

Not available

24

Poulan 532109503

Arm Support (AYP part number)

$

$

Not available

25

Poulan 532109504

Front Deck Stop (AYP part number)

$

$

Not available

27

Poulan 532123204

Belt Guide (AYP part number)
(Superseded to 532126756)

$

$

Not available

28

Poulan 874760632

Bolt (AYP part number)
(Superseded to 874930632)

$6.99

$

In Stock, only 2 left!

0

29

Poulan 532123553

Idler Arm (AYP part number)
(Superseded to 532127163)

$

$

Not available

30

Poulan 532106902

Retainer Spacer (AYP part number)

$2.99

$

In Stock, only 2 left!

0

31

Poulan 532121316

Idler Pulley (AYP part number)

$51.99

$

In Stock, only 4 left!

0

32

Poulan 532106513

Wear Washer (AYP part number)

$6.99

$

In Stock, only 4 left!

0

33

Poulan 532102669

Keeper Belt (AYP part number)

$

$

Not available

34

Poulan 532121687

Mandrel Assembly (AYP part number)

$

$

Not available

35

Poulan 532100668

Mandrel Support Plate (AYP part number)

$

$

Not available

36

Poulan 817490614

Washer Hd. Hex Screw (AYP part number)

$

$

Not available

37

Poulan 817490620

Washer Hd. Hex Screw (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

38

Poulan 532121263

Blade
(Superseded to 532143978)

$28.99

$

Usually ships in 3-10 days

0

39

Poulan 819132012

Washer (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

40

Poulan 810030600

Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

41

Poulan 874610624

Hex Bolt (AYP part number)

$6.49

$

In Stock, only 1 left!

0

42

Poulan 532108250

Extension Spring (AYP part number)
(Superseded to 108250X)

$

$

Not available

43

Poulan 532108235

Mower Clutch Rod (AYP part number)

$

$

Not available

44

Poulan 532004921

Retainer Spring (AYP part number)

$6.49

$

In Stock, only 2 left!

0

45

Poulan 876020312

Cotter Pin (AYP part number)
(Superseded to 876020308)

$

$

Not available

46

Poulan 532124066

Rock Shaft Assembly (AYP part number)
(Superseded to 532109892)

$

$

Not available

47

Poulan 876020616

Cotter Pin (AYP part number)

$

$

Not available

48

Poulan 532108247

Primary Brake Rod (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

49

Poulan 872140606

Carriage Bolt (AYP part number)

$

$

Not available

50

Poulan 532108243

R.H. Pivot Bracket (AYP part number)

$

$

Not available

51

Poulan 532108241

L.H. Pivot Bracket (AYP part number)

$

$

Not available

52

Poulan 532105857

R.H. Rear Bracket Suspension (AYP part number)

$

$

Not available

53

Poulan 532108673

L.H. Rear Bracket Suspension (AYP part number)

$

$

Not available

54

Poulan 532106578

Brake Assembly (AYP part number)

$46.99

$

Usually ships in 3-10 days

0

55

Poulan 532106463

L.H. Secondary Brake Rod (AYP part number)

$

$

Not available

56

Poulan 532108249

R.H. Secondary Brake Rod (AYP part number)

$30.99

$

Usually ships in 3-10 days

0

57

Poulan 532106456

Pivot Brake Bracket (AYP part number)

$

$

Not available

58

Poulan 532100672

Brake Spacer (AYP part number)

$

$

Not available

59

Poulan 532100673

Support Bracket (AYP part number)

$

$

Not available

60

Poulan 819131614

Washer (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 874760688

Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 532125074

L.H. Runner (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

63

Poulan 819111016

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

64

Poulan 872140610

Bolt (AYP part number)
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

65

Poulan 532121343

Warning Decal (AYP part number)

$

$

Not available

66

Poulan 532122314

Spacer (AYP part number)

$

$

Not available

67

Poulan 876020308

Cotter Pin (AYP part number)
(Superseded to 532003145)

$

$

Not available

68

Poulan 872110506

Carriage Bolt (AYP part number)

$7.49

$

In Stock, Qty 20+

0

69

Poulan 874760412

Hex Bolt (AYP part number)

$7.49

$

In Stock, only 1 left!

0

70

Poulan 532109893

Special Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

71

Poulan 873680400

Crownlock Washer (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

72

Poulan 532110445

L.H. Mandrel Support (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

73

Poulan 819131316

Washer (AYP part number)

$4.99

$

In Stock, Qty 5

0

Poulan 532122215

Complete Mower Assembly (AYP part number)

Note: Not Shown.

$

$

Not available
