XEL 1120AR - Poulan Pro Lawn Tractor LIFT ADJUSTMENT Parts Diagram

Lawn Tractor

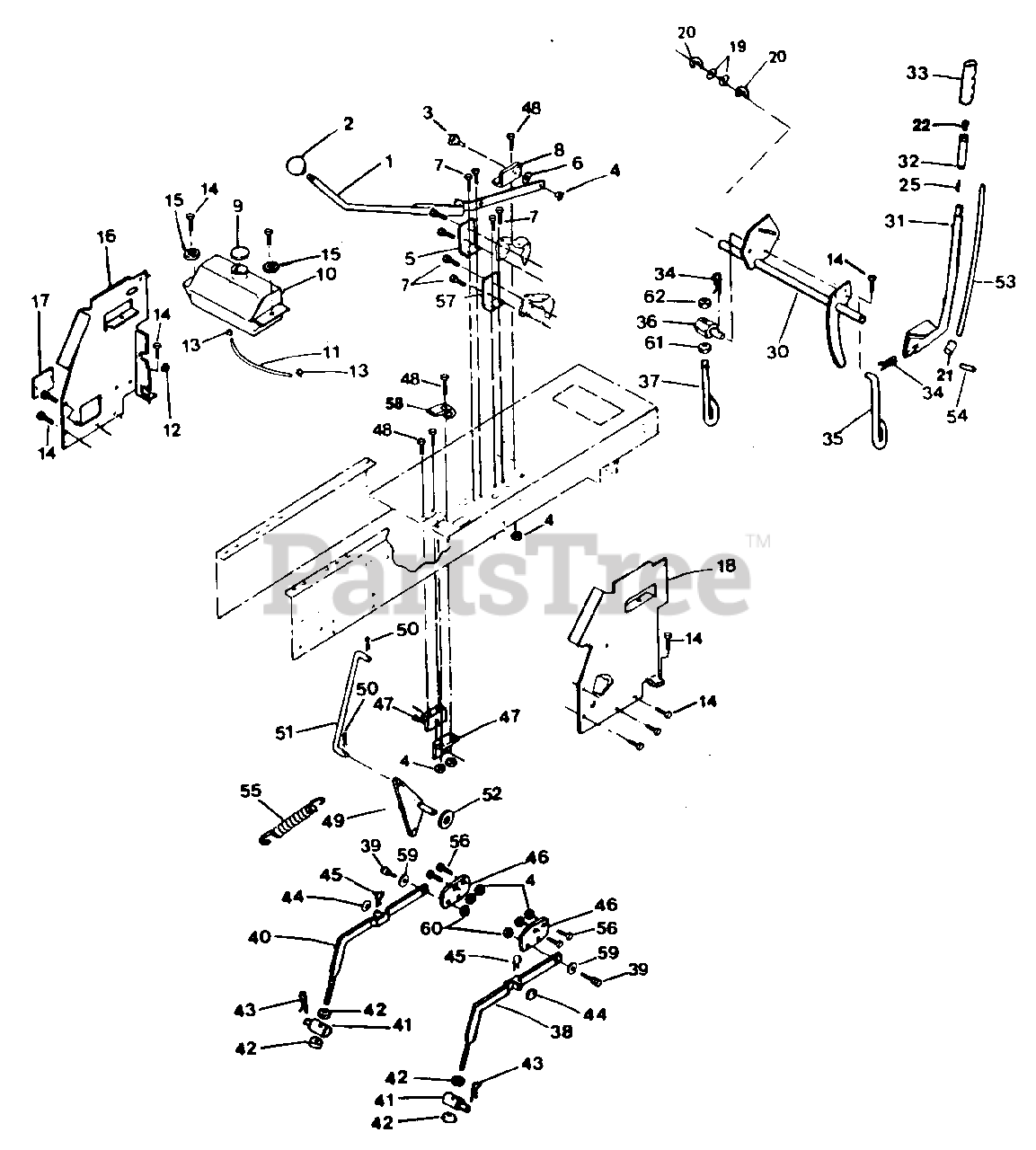

LIFT ADJUSTMENT Parts Diagram

  • Title
1

Poulan 532106448

Mower Clutch Lever (AYP part number)
(Superseded to 532124429)

$

$

Not available

2

Poulan 532106932

Knob (AYP part number)

$7.99

$

In Stock, Qty 5

0

3

Poulan 532106451

Shoulder Bolt (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 873680600

Crownlock Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

5

Poulan 532106452

Interlock Switch Bracket (AYP part number)

$

$

Not available

6

Poulan 819171516

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

7

Poulan 817021008

Tapping Hex Screw (AYP part number)

$4.99

$

In Stock, Qty 16

0

8

Poulan 532106447

Clutch Support Lever (AYP part number)

$

$

Not available

9

Poulan 532109202

Fuel Cap (AYP part number)
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

10

Poulan 532109202

Fuel Tank (AYP part number)
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

11

Poulan 532008548

Fuel Line (AYP part number)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 532009151

Grommet (AYP part number)

$

$

Not available

13

Poulan 532123487

Hose Clamp (AYP part number)

$7.49

$

In Stock, only 4 left!

0

14

Poulan 817490612

Thd. Roll. Washer Hd. Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

15

Poulan 819131612

Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532106920

L.H. Dash Panel (AYP part number)

$

$

Not available

17

Poulan 532121794

Access Cover (AYP part number)
(Superseded to 121794X)

$

$

Not available

18

Poulan 532124431

R.H. Dash Panel (AYP part number)

$

$

Not available

19

Poulan 819291016

Washer (AYP part number)

$

$

Not available

20

Poulan 812000022

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 532105766

Lift Lever Couple (AYP part number)

$

$

Not available

22

Poulan 532124526

Plunger Button (AYP part number)
(Superseded to 532125925)

$

$

Not available

25

Poulan 532124874

Spring (AYP part number)
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 532120420

Lift Shaft (AYP part number)

$

$

Not available

31

Poulan 532105768

Assembly Lever (AYP part number)

$

$

Not available

32

Poulan 532122364

Plunger (AYP part number)
(Superseded to 532125925)

$

$

Not available

33

Poulan 532109413

Handle Grip (AYP part number)
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

34

Poulan 532124670

Spring Retainer (AYP part number)
(Superseded to 532085902)

$

$

Not available

35

Poulan 532110029

Lift Link (AYP part number)

$

$

Not available

36

Poulan 532110447

Lift Trunnion (AYP part number)
(Superseded to 532132793)

$

$

Not available

37

Poulan 532110448

Adjustable Lift Link (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

38

Poulan 532121598

R.H. Arm Suspension (AYP part number)

$

$

Not available

39

Poulan 532105848

Shoulder Bolt (AYP part number)

$

$

Not available

40

Poulan 532121599

L.H. Suspension Arm (AYP part number)

$

$

Not available

41

Poulan 532106308

Lower Lift Trunnion (AYP part number)
(Superseded to 532130171)

$

$

Not available

42

Poulan 873220800

Hex Nut 1/2-13 (AYP part number)
(Superseded to 873350800)

$

$

Not available

43

Poulan 532009135

Spring Retainer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 819171516

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

45

Poulan 532004921

Spring Retainer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 532105864

Suspension Bracket (AYP part number)

$

$

Not available

47

Poulan 532106444

Bellcrank Bracket (AYP part number)

$

$

Not available

48

Poulan 874760612

Hex Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

49

Poulan 532109728

Bellcrank Assembly (AYP part number)

$

$

Not available

50

Poulan 876020412

Cotter Pin (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 532106446

Primary Clutch Rod (AYP part number)

$

$

Not available

52

Poulan 819131410

Washer (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

53

Poulan 532105765

Lift Lever Rod (AYP part number)

$

$

Not available

54

Poulan 532105767

Groove Pin (AYP part number)

$6.49

$

In Stock, only 3 left!

0

55

Poulan 532106810

Extension Spring (AYP part number)

$

$

Not available

56

Poulan 872140606

Screw (AYP part number)

$

$

Not available

57

Poulan 532108236

Switch Bracket (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

58

Poulan 532005320

Insulated Clip (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

59

Poulan 532110739

Spring Washer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 873980600

Flange Lock Nut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

61

Poulan 873360700

Jam Hex Nut (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

62

Poulan 873710700

Crownlock Nut (AYP part number)
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0
