XEG 1182VAR - Poulan Pro Lawn Tractor STEERING ASSEMBLY Parts Diagram

Lawn Tractor

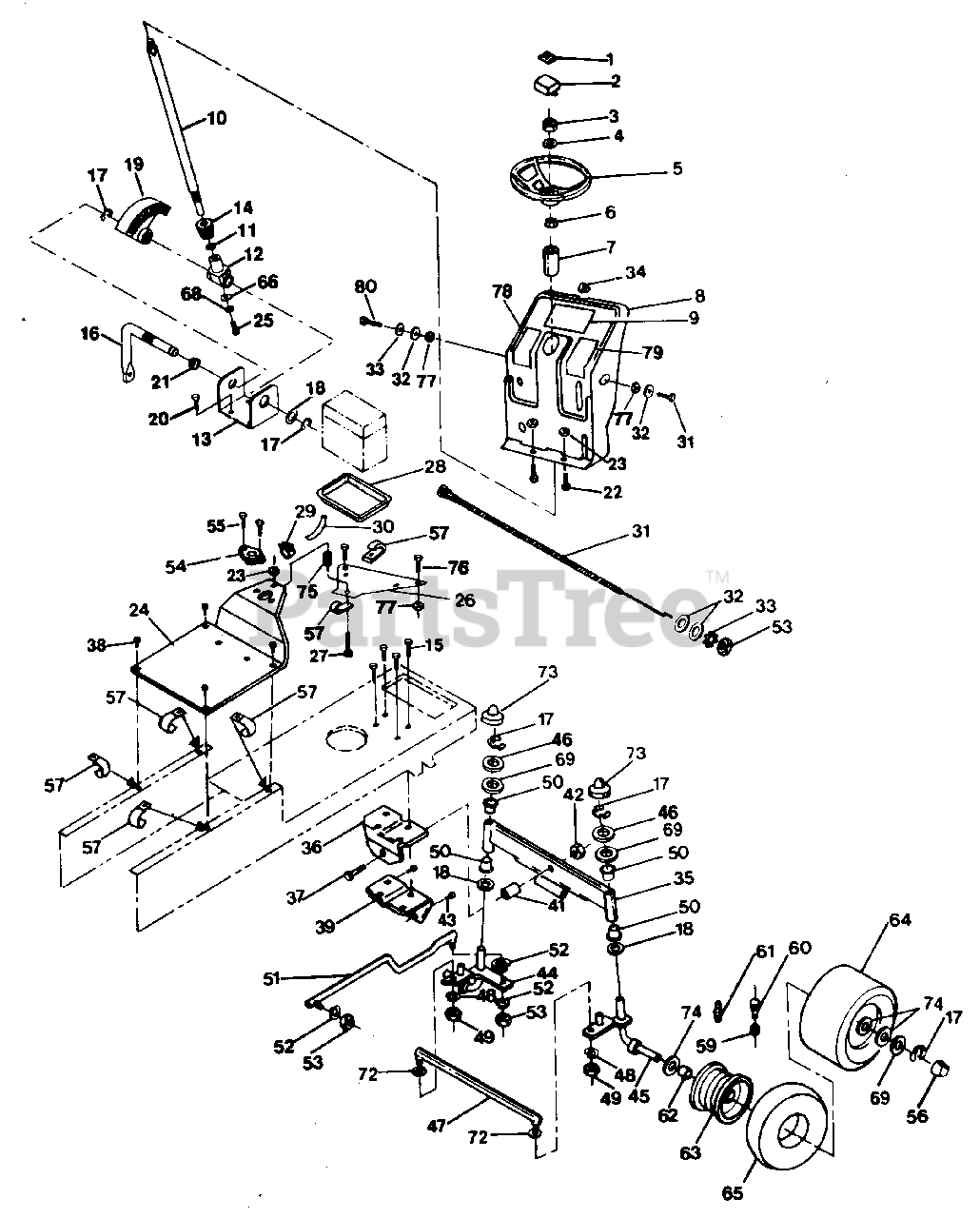

STEERING ASSEMBLY Parts Diagram

  • Title

1

Poulan 532124234

Steering Wheel Cap Decal (AYP part number)

$

$

Not available

2

Poulan 532100710

Steering Wheel Insert (AYP part number)

$

$

Not available

3

Poulan 873940800

Hex Nut 1/2-20 (AYP part number)

$7.49

$

In Stock, only 4 left!

0

4

Poulan 532100712

Washer (AYP part number)

$

$

Not available

5

Poulan 532100713

Steering Wheel (AYP part number)
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

6

Poulan 532100711

Steering Wheel Adaptor (AYP part number)
(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

7

Poulan 532100714

Steering Sleeve (AYP part number)

$

$

Not available

8

Poulan 532122341

Dash (AYP part number)

$

$

Not available

9

Poulan 532123175

Dash Decal (AYP part number)

$

$

Not available

10

Poulan 532124041

Steering Shaft (AYP part number)

$

$

Not available

11

Poulan 532057079

Washer (AYP part number)

$6.49

$

In Stock, Qty 11

0

12

Poulan 532124035

Shaft Support (AYP part number)
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

13

Poulan 532124036

Steering Bracket (AYP part number)

$

$

Not available

14

Poulan 532124037

Pinion Gear (AYP part number)

$

$

Not available

15

Poulan 532122819

Special Screw (AYP part number)

$

$

Not available

16

Poulan 532124033

Pitman Shaft (AYP part number)
(Superseded to 532127501)

$

$

Not available

17

Poulan 812000029

Klip Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 532124931

Thrust Bearing (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

19

Poulan 532124034

Sector Gear (AYP part number)
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

20

Poulan 817490612

Thread Rolling Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

21

Poulan 532109816

Snap-In Nyliner (AYP part number)

$6.49

$

In Stock, only 2 left!

0

22

Poulan 874180512

Truss Head Crown Screw (AYP part number)

$

$

Not available

23

Poulan 873510500

Locknut (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 532125068

Saddle (AYP part number)

$

$

Not available

25

Poulan 871070410

Hex Screw (AYP part number)
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

26

Poulan 532106965

Battery Plate Support (AYP part number)

$

$

Not available

27

Poulan 874760532

Hex Bolt 5/16-18 x 2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

28

Poulan 532124886

Battery Tray (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

29

Poulan 532109596

Hose Clamp (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532100541

Tube (AYP part number)
(Superseded to 532007697)

$

$

Not available

31

Poulan 532124049

Choke Control (AYP part number)

$

$

Not available

32

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

33

Poulan 811050600

Ext. Tooth Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Poulan 532008022

Dash Plug (AYP part number)

$

$

Not available

35

Poulan 532108076

Front Axle (AYP part number)
(Superseded to 532108075)

$

$

Not available

36

Poulan 532105663

Rear Saddle Support (AYP part number)

$

$

Not available

37

Poulan 874761060

Hex Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 817490608

Thread Roll Washer Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 532105664

Front Saddle Support (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

41

Poulan 532110438

Front Bearing Axle Spacer (AYP part number)
(Superseded to 532155134)

$

$

Not available

42

Poulan 873901000

Flange Locknut (AYP part number)
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

43

Poulan 817490508

Thread Roll Washer Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 532105656

L.H. Spindle (AYP part number)
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

45

Poulan 532105654

R.H. Spindle (AYP part number)
(Superseded to 532130524)

$

$

Not available

46

Poulan 819272016

Washer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

47

Poulan 532121334

Tie Rod (AYP part number)
(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

48

Poulan 810040500

Lock Washer 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 873810500

Hex Nut 5/16-24 (AYP part number)
(Superseded to 873610500)

$

$

Not available

50

Poulan 532003366

Bearing (AYP part number)

$4.99

$

In Stock, Qty 20+

0

51

Poulan 532124032

Drag Link (AYP part number)
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

52

Poulan 810040600

Lock Washer 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

53

Poulan 873610600

Hex Nut 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 532001554

Steering Bushing (AYP part number)
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

55

Poulan 817431008

Hex Screw (AYP part number)
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

56

Poulan 532104757

Front Hub Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

57

Poulan 532124996

Fuel Line Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

59

Poulan 532059192

Valve Cap (AYP part number)

$7.49

$

In Stock, Qty 9

0

60

Poulan 532065139

Valve Stem (AYP part number)

$9.99

$

In Stock, only 3 left!

0

61

Poulan 532000278

Grease Fitting (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

62

Poulan 532009040

Bearing

$7.99

$

In Stock, Qty 20+

0

63

Poulan 532125021

Front Rim 6" (AYP part number)
(Superseded to 532106732)

$91.99

$

In Stock, Qty 5

0

64

Poulan 532106222

Front Tire (AYP part number)
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

65

Poulan 532059904

Tube (Not furnished with Tractor)

$37.99

$

In Stock, Qty 7

0

66

Poulan 819091116

Washer (AYP part number)

$

$

Not available

68

Poulan 810040400

Lock Washer (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

69

Poulan 532121748

Washer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

72

Poulan 819111216

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

73

Poulan 532121232

Spindle Cap (AYP part number)

$4.99

$

In Stock, Qty 9

0

74

Poulan 532121749

Washer (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

75

Poulan 532121236

Spacer (AYP part number)

$

$

Not available

76

Poulan 874760616

Hex Bolt (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

77

Poulan 873510600

Hex Nut (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

78

Poulan 532125772

Clutch Decal Attachment (AYP part number)

$

$

Not available

79

Poulan 532125771

Lift Attachment Decal (AYP part number)

$

$

Not available

80

Poulan 874760612

Hex Bolt (AYP part number)

$4.99

$

In Stock, only 3 left!

0
