XEG 1182HAR - Poulan Pro Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

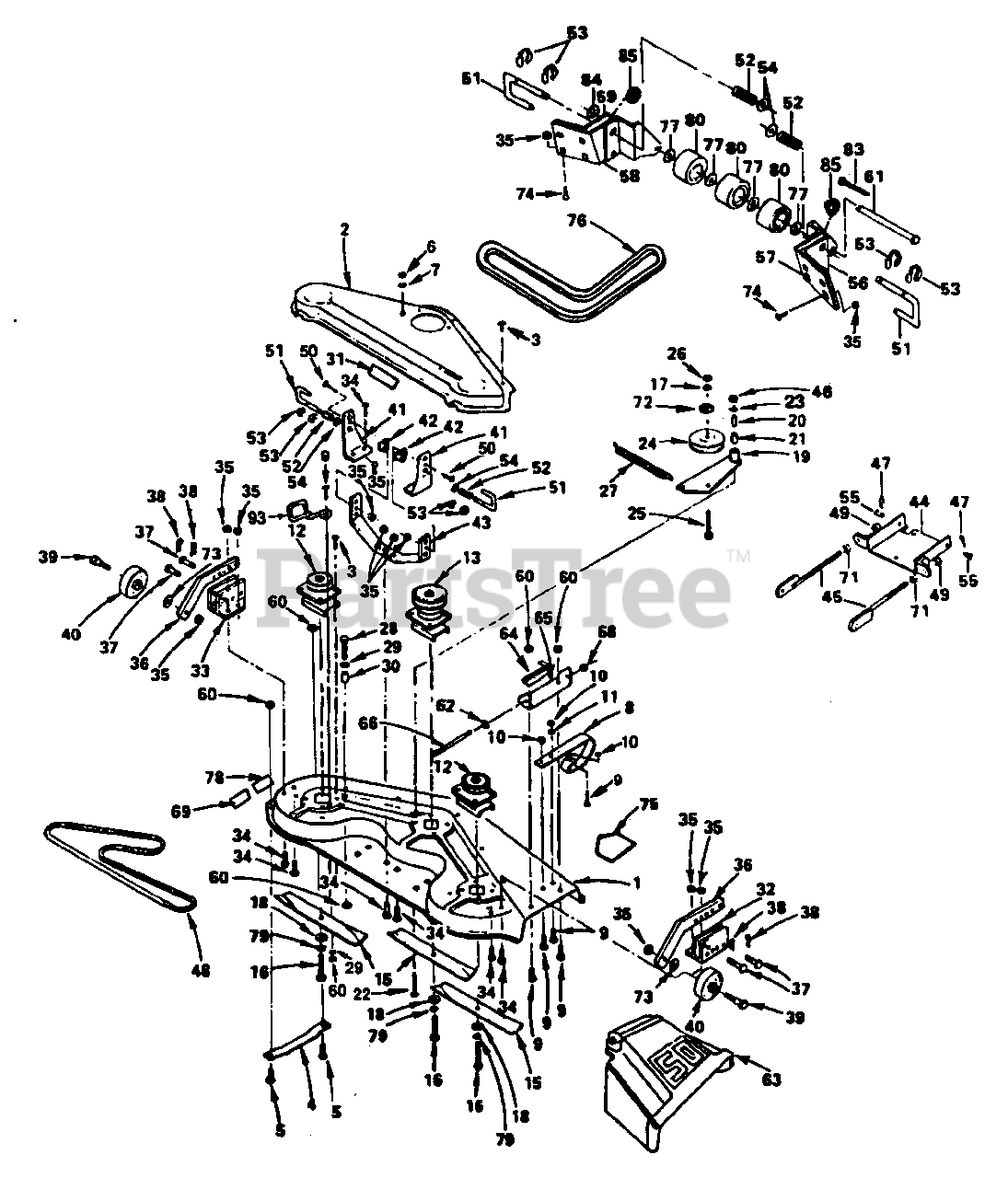

MOWER DECK Parts Diagram

  • Title

1

Poulan 532121664

Mower Housing (AYP part number)
(Superseded to 532123760)

$272.99

$

Usually ships in 3-10 days

0

2

Poulan 532121875

Deck Drive Cover (AYP part number)

$

$

Not available

3

Poulan 817490508

Thd. Roll. Washer Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532125074

L.H. Runner (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 872110505

Carriage Bolt (AYP part number)
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 810040500

Lock Washer 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 873220500

Hex Nut 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 532120449

R.H. Runner (AYP part number)
(Superseded to 532136320)

$

$

Not available

9

Poulan 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 532001685

Locknut (AYP part number)
(Superseded to 532068478)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Poulan 532121658

Secondary Mandrel (AYP part number)
(Superseded to 532136819)

$

$

Not available

13

Poulan 532121657

Primary Mandrel (AYP part number)

$

$

Not available

14

Poulan 817490612

Thd. Roll. Washer Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

15

Poulan 532121798

Blade

$27.99

$

In Stock, only 2 left!

0

16

Poulan 874610624

Hex Bolt 3/8-24 x 1-1/2 Gr. 5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

17

Poulan 810040600

Lock Washer 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

18

Poulan 819132012

Washer (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

19

Poulan 532124685

Idler Arm Assembly (AYP part number)
(Superseded to 532674213)

$

$

Not available

20

Poulan 532124702

Bearing Liner (AYP part number)
(Superseded to 532674308)

$

$

Not available

21

Poulan 532007835

Bearing (AYP part number)
(Superseded to 532674308)

$

$

Not available

22

Poulan 872110522

Carriage Bolt (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 819111816

Washer (AYP part number)

$

$

Not available

24

Poulan 532102403

Idler Pulley (AYP part number)

$39.99

$

In Stock, only 1 left!

0

25

Poulan 874760624

Hex Bolt 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

26

Poulan 873220600

Hex Nut 3/8-16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

27

Poulan 532104361

Spring (AYP part number)

$

$

Not available

28

Poulan 874780520

Hex Bolt 5/16-18 x 1-1/4 Gr. 5 (AYP part number)
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 819111216

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

30

Poulan 532008438

Split Spacer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 532106224

Dr. Schematic V-Belt Mower Decal (AYP part number)

$

$

Not available

32

Poulan 532105448

R.H. Ga. Wheel Bracket (AYP part number)

$

$

Not available

33

Poulan 532105449

L.H. Ga. Wheel Bracket (AYP part number)

$

$

Not available

34

Poulan 872240606

Carriage Bolt 3/8-16 x 3/4 (AYP part number)

$2.99

$

In Stock, only 2 left!

0

35

Poulan 873680600

Crownlock Nut
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

36

Poulan 532105453

Ga. Wheel Bar (AYP part number)

$

$

Not available

37

Poulan 532005565

Clevis Pin (AYP part number)
(Superseded to 532139031)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532124670

Spring Retainer (AYP part number)
(Superseded to 532085902)

$

$

Not available

39

Poulan 532124842

Shoulder Bolt (AYP part number)
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

40

Poulan 532105455

Gauge Wheel (AYP part number)

$18.99

$

In Stock, only 2 left!

0

41

Poulan 532105433

Suspension Bracket (AYP part number)

$

$

Not available

42

Poulan 532110237

Spacer (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 532105434

Suspension Brace (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

44

Poulan 532109778

Mower Suspension Plate Assembly (AYP part number)

$

$

Not available

45

Poulan 532109771

Suspension Bracket (AYP part number)

$

$

Not available

46

Poulan 873350500

Hex Nut (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

47

Poulan 532124660

Spring Retainer (AYP part number)
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

48

Poulan 532003703

V-Belt (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

49

Poulan 873680800

Crownlock Nut 1/2-13 (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

50

Poulan 874760622

Hex Bolt (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

51

Poulan 532105435

Release Pin (AYP part number)
(Superseded to 105435X)

$

$

Not available

52

Poulan 532003720

Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 812000039

Klip Ring (AYP part number)

$6.49

$

In Stock, Qty 7

0

54

Poulan 819171612

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

55

Poulan 532105440

Clevis Pin (AYP part number)

$

$

Not available

56

Poulan 532105458

R.H. Outer Bracket (AYP part number)

$

$

Not available

57

Poulan 532109773

R.H. Inner Bracket (AYP part number)

$

$

Not available

58

Poulan 532110997

L.H. Inner Bracket (AYP part number)

$

$

Not available

59

Poulan 532120000

L.H. Outer Bracket (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

61

Poulan 532109776

Pivot Pin (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

62

Poulan 819111016

Washer (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

63

Poulan 532110509

Deflector Shield (AYP part number)

$

$

Not available

64

Poulan 532106734

Deflector Spring (AYP part number)
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

65

Poulan 532109743

Deflector Bracket (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

66

Poulan 532106735

Hinge Rod (AYP part number)

$10.99

$

In Stock, only 1 left!

0

68

Poulan 532110452

Push Nut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

69

Poulan 532003713

Caution Instruction Decal (AYP part number)

$

$

Not available

71

Poulan 873220800

Hex Nut (AYP part number)
(Superseded to 873350800)

$

$

Not available

72

Poulan 819131614

Washer (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

73

Poulan 819171512

Washer (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

74

Poulan 872240608

Carriage Bolt (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

75

Poulan 532121349

Warning Decal (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

76

Poulan 532110884

V-Belt (AYP part number)

$45.99

$

In Stock, only 3 left!

0

77

Poulan 819151610

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

78

Poulan 532105185

Instruction Decal (AYP part number)

$

$

Not available

79

Poulan 810030600

Lock Washer 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

80

Poulan 532109729

Nose Roller (AYP part number)
(Superseded to 109729X)

$

$

Not available

83

Poulan 876020412

Retainer Spring (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

84

Poulan 819151616

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

85

Poulan 532120135

Spacer (AYP part number)

$

$

Not available

93

Poulan 532121352

L.H. Keeper (AYP part number)

$

$

Not available
