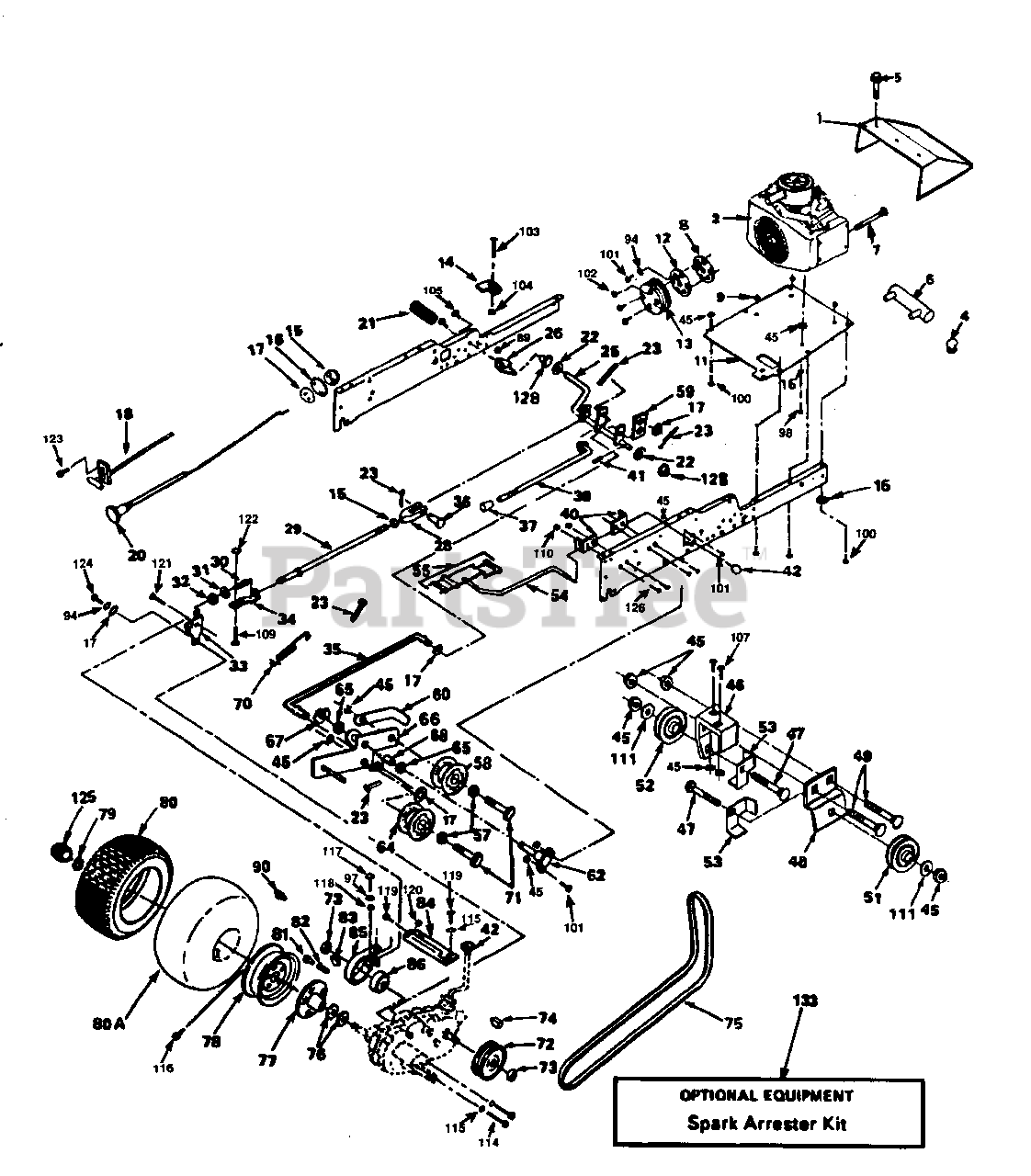

XEG 1182HAR - Poulan Pro Lawn Tractor GROUND DRIVE Parts Diagram

Lawn Tractor

GROUND DRIVE Parts Diagram

  • Title
1

Poulan 532124221

Heat Shield

$

$

Not available

2

Poulan 532124165

18 H.P. Engine

$

$

Not available

4

Poulan 532124436

Exhaust Pipe

$

$

Not available

5

Poulan 817720408

Thd. Cut. Hex. Screw (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

6

Poulan 532124532

Exhaust Muffler

$

$

Not available

7

Poulan 532009767

Oil Drain Valve (AYP part number)

$21.99

$

Usually ships in 3-10 days

0

8

Poulan 532110947

Chaff Guard (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 532110869

Spacer (AYP part number)

$

$

Not available

11

Poulan 532110867

Engine Base (AYP part number)

$

$

Not available

12

Poulan 532104577

Adapter (AYP part number)

$27.99

$

Usually ships in 3-10 days

0

13

Poulan 532121355

Ground Drive Pulley (AYP part number)

$

$

Not available

14

Poulan 532005304

Interlock Switch Actuator (AYP part number)
(Superseded to 532178575)

$

$

Not available

15

Poulan 873610600

Hex Nut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 811050600

Ext. Tooth Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 819131316

Washer (AYP part number)

$4.99

$

In Stock, Qty 5

0

18

Poulan 532121467

Throttle Control (AYP part number)
(Superseded to 532132746)

$

$

Not available

20

Poulan 532121470

Choke Control (AYP part number)
(Superseded to 532132780)

$

$

Not available

21

Poulan 532124872

Pedal Cover (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532121749

Washer (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

23

Poulan 876020312

Cotter Pin (AYP part number)
(Superseded to 876020308)

$

$

Not available

25

Poulan 532104375

Foot Pedal Shaft (AYP part number)

$

$

Not available

26

Poulan 532104601

Interlock Bracket (AYP part number)

$

$

Not available

28

Poulan 532100604

Yoke (AYP part number)

$

$

Not available

29

Poulan 532005308

Brake Rod (AYP part number)

$

$

Not available

30

Poulan 532007241

Compression Spring (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

31

Poulan 819131614

Washer (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 873530600

Locknut (AYP part number)
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

33

Poulan 532124692

Brake Bracket (AYP part number)
(Superseded to 532677637)

$7.49

$

Usually ships in 3-10 days

0

34

Poulan 532124695

Brake Rod Guide (AYP part number)
(Superseded to 532007229)

$

$

Not available

35

Poulan 532101356

Clutch Rod (AYP part number)

$

$

Not available

36

Poulan 532005102

Clevis Pin (AYP part number)

$

$

Not available

37

Poulan 532071673

Plunger Cap (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

39

Poulan 532109767

Parking Brake Rod (AYP part number)

$

$

Not available

40

Poulan 532105598

Shift Rod Bracket (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532005142

Roll Pin (AYP part number)

$

$

Not available

42

Poulan 532121466

Knob (AYP part number)
(Superseded to 121466X)

$

$

Not available

45

Poulan 873680600

Locknut
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

46

Poulan 532121063

Mule Drive V-Pulley Bracket (AYP part number)
(Superseded to 532139995)

$

$

Not available

47

Poulan 872110614

Carriage Bolt (AYP part number)
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

48

Poulan 532122825

Flat Idler Bracket (AYP part number)

$

$

Not available

49

Poulan 872140606

Carriage Bolt (AYP part number)

$

$

Not available

51

Poulan 532102403

Flat Idler (AYP part number)

$39.99

$

In Stock, only 1 left!

0

52

Poulan 532101344

Idler Pulley (AYP part number)

$45.99

$

Usually ships in 3-10 days

0

53

Poulan 532122824

Belt Keeper (AYP part number)

$

$

Not available

54

Poulan 532122253

Hi-Lo Shift Rod (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

55

Poulan 532122268

Spring Clip Connecting Link (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 819131413

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

58

Poulan 532104360

Flat Idler (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

59

Poulan 532121358

Spring Retainer (AYP part number)

$

$

Not available

60

Poulan 532121360

Belt Retainer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

62

Poulan 532101358

Clutch Bracket Assembly (AYP part number)

$

$

Not available

64

Poulan 532121361

Grooved Idler (AYP part number)
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

65

Poulan 532000207

Hardened Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 532121356

Clutch w/Bearing Bracket (AYP part number)

Note: (Incl. Key No. 68)

$

$

Not available

67

Poulan 812000039

Klip Ring (AYP part number)

$6.49

$

In Stock, Qty 7

0

68

Poulan 532105706

Idler Bearing (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

70

Poulan 532121357

Extension Spring (AYP part number)

$

$

Not available

71

Poulan 874760628

Hex Bolt (AYP part number)
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

72

Poulan 532120332

Transaxle Pulley (AYP part number)

$27.99

$

Usually ships in 3-10 days

0

73

Poulan 532009204

Locknut (AYP part number)

$

$

Not available

74

Poulan 532124708

Woodruff Key (AYP part number)
(Superseded to 532009858)

$

$

Not available

75

Poulan 532110883

V-Belt (AYP part number)

$51.99

$

In Stock, only 2 left!

0

76

Poulan 532007563

Axle Thrust Washer (AYP part number)

$8.99

$

In Stock, only 1 left!

0

77

Poulan 532124683

Bushing Assembly and Wheel Hub (AYP part number)
(Superseded to 532634692)

$42.99

$

Usually ships in 3-10 days

0

78

Poulan 532125070

Rear Rim Assembly (AYP part number)
(Superseded to 532106277)

$227.99

$

Usually ships in 3-10 days

0

79

Poulan 812000034

Ring Klip (AYP part number)

$

$

Not available

80

Poulan 532004607

Rear Tire (AYP part number)
(Superseded to 532122077)

$399.99

$

Usually ships in 3-10 days

0

80A

Poulan 532007154

Rear Tube (AYP part number)

Note: (Not furnished with tractor)

$80.99

$

Usually ships in 3-10 days

0

81

Poulan 532059192

Valve Cap (AYP part number)

$7.49

$

In Stock, Qty 9

0

82

Poulan 532065139

Valve Stem (AYP part number)

$9.99

$

In Stock, only 3 left!

0

83

Poulan 532125096

Woodruff No. 9 Key (AYP part number)

$9.49

$

In Stock, only 1 left!

0

84

Poulan 532120404

Transaxle Support Bracket (AYP part number)
(Superseded to 532156404)

$

$

Not available

85

Poulan 532101122

Brake Band (AYP part number)

$

$

Not available

86

Poulan 532000214

Brake Drum (AYP part number)

$

$

Not available

89

Poulan 873680400

Crownlock Nut (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

90

Poulan 532006856

Grease Fitting (AYP part number)
(Superseded to 532124860)

$6.99

$

In Stock, only 2 left!

0

94

Poulan 810040600

Lock Washer (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

97

Poulan 810040400

Lock Washer (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

98

Poulan 874780620

Hex Bolt 3/8-16 x 1-1/4 Gr. 5 (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

100

Poulan 874760612

Hex Bolt (AYP part number)

$4.99

$

In Stock, only 3 left!

0

101

Poulan 874780616

Hex Bolt 3/8-16 x 1 Gr. 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

102

Poulan 817190516

Hex Screw (AYP part number)

$

$

Not available

103

Poulan 874321016

Fin Screw (AYP part number)

$

$

Not available

104

Poulan 873631000

Locknut (AYP part number)
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

105

Poulan 874760412

Hex Bolt (AYP part number)

$7.49

$

In Stock, only 1 left!

0

107

Poulan 872110606

Carriage Bolt (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

109

Poulan 872110506

Carriage Bolt (AYP part number)

$7.49

$

In Stock, Qty 20+

0

110

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

111

Poulan 819131612

Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

114

Poulan 874760720

Hex Bolt (AYP part number)
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

115

Poulan 810040700

Lock Washer (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

116

Poulan 532001304

Hub Bolt (AYP part number)
(Superseded to 532140080)

$3.99

$

Usually ships in 3-10 days

0

117

Poulan 872140405

Carriage Bolt (AYP part number)

$7.49

$

In Stock, Qty 7

0

118

Poulan 873220400

Hex Nut (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

119

Poulan 874760716

Hex Bolt (AYP part number)
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

120

Poulan 873680700

Crownlock Nut (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

121

Poulan 874370612

Mach. Udrcut. Flat Head Screw (AYP part number)

$

$

Not available

122

Poulan 532001685

Locknut (AYP part number)
(Superseded to 532068478)

$3.99

$

Usually ships in 3-10 days

0

123

Poulan 817720410

Hex Screw (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

124

Poulan 874760614

Hex Bolt (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

125

Poulan 532104758

Rear Hub Cap (AYP part number)

$

$

Not available

126

Poulan 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

128

Poulan 532110895

Nyliner (AYP part number)
(Superseded to 110895X)

$

$

Not available

133

Poulan 532120689

Spark Arrester Kit (AYP part number)

$

$

Not available
