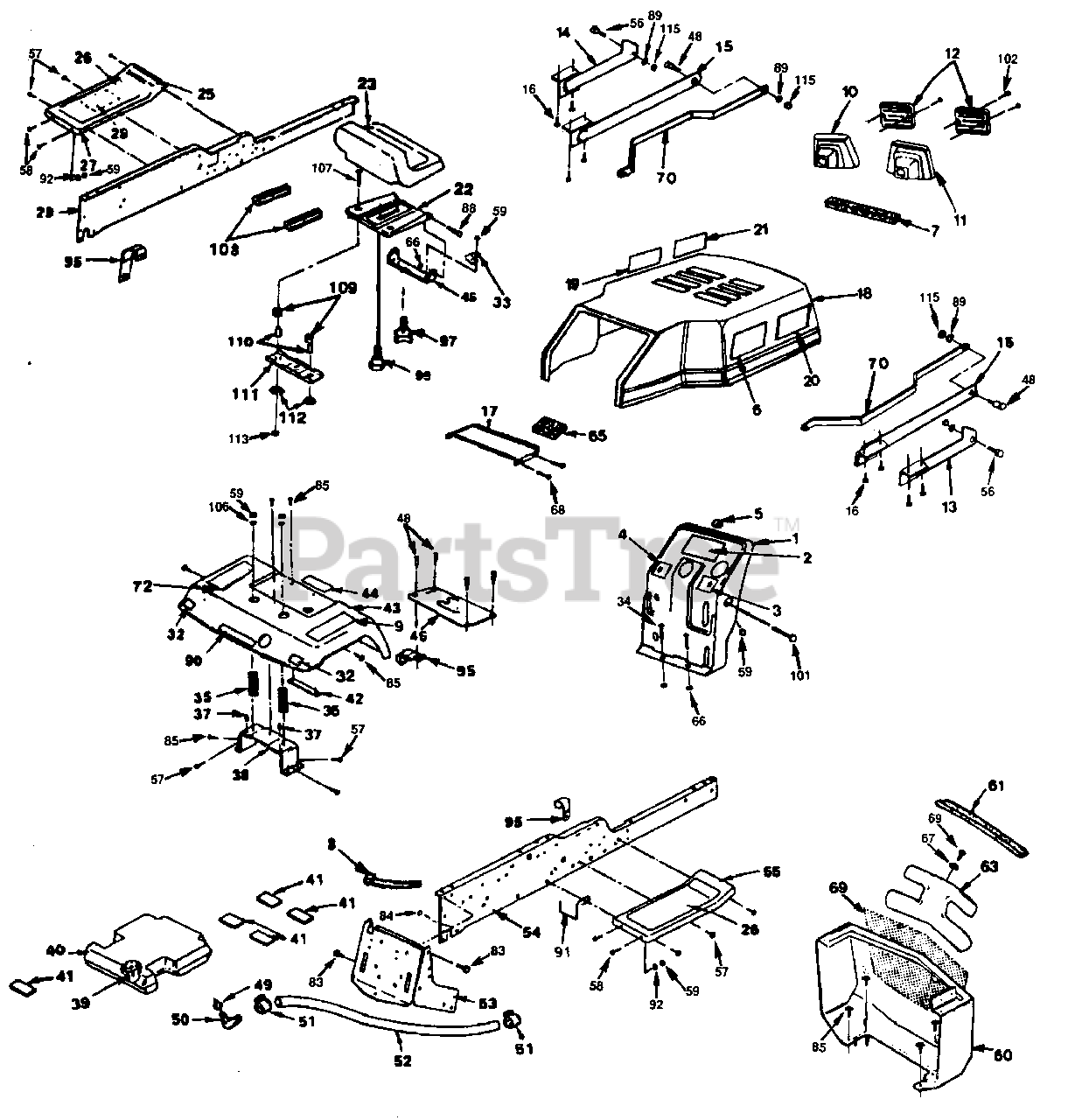

FRAME, FENDER AND DRAWBAR Parts Diagram

  • Title

1

Poulan 532122438

Dash

$

$

Not available

2

Poulan 532121892

Dash Decal (AYP part number)

$

$

Not available

3

Poulan 532124189

Lift Decal (AYP part number)

$

$

Not available

4

Poulan 532124188

Clutch Decal (AYP part number)

$

$

Not available

5

Poulan 532008022

Dash Plug (AYP part number)

$

$

Not available

6

Poulan 532124225

R.H. Decal (AYP part number)

$

$

Not available

7

Poulan 532109458

Foam Strip (AYP part number)

$

$

Not available

8

Poulan 532124756

Tie Cable (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

9

Poulan 532124226

R.H. Fender Decal (AYP part number)

$

$

Not available

10

Poulan 532124910

L.H. Bezel (AYP part number)

$

$

Not available

11

Poulan 532125069

R.H. Bezel (AYP part number)

$

$

Not available

12

Poulan 532109671

Lens (AYP part number)

$

$

Not available

13

Poulan 532125095

R.H. Strap Assembly Hinge (AYP part number)

$

$

Not available

14

Poulan 532124918

L.H. Strap Assembly Hinge (AYP part number)

$

$

Not available

15

Poulan 532124921

Rear Hinge Strap Assembly (AYP part number)

$

$

Not available

16

Poulan 817411310

Wsh. Hd. Hex Screw #13-16 x 5/8 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 532007985

Battery Support (AYP part number)

$

$

Not available

18

Poulan 532124909

Hood (AYP part number)

$

$

Not available

19

Poulan 532124224

L.H. Decal (AYP part number)

$

$

Not available

20

Poulan 532125715

R.H. Poulan Decal (AYP part number)

$

$

Not available

21

Poulan 532125714

L.H. Poulan Decal (AYP part number)

$

$

Not available

22

Poulan 532124294

Seat Pan (AYP part number)

$

$

Not available

23

Poulan 532110840

Seat (AYP part number)
(Superseded to 532127429)

$

$

Not available

25

Poulan 532101892

Clutch/Brake Decal (AYP part number)

$

$

Not available

26

Poulan 532108256

Footrest Pad (AYP part number)

$

$

Not available

27

Poulan 532125041

L.H. Footrest (AYP part number)
(Superseded to 532102326)

$

$

Not available

28

Poulan 532123243

Drive Belt Schematic Decal (AYP part number)

$

$

Not available

29

Poulan 532110893

L.H. Frame Rail (AYP part number)
(Superseded to 532151630)

$

$

Not available

32

Poulan 532106202

Taillight Reflector (AYP part number)

$

$

Not available

33

Poulan 532124996

Insulated Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

34

Poulan 874180512

Machine Head Screw 5/16-18 x 3/4 (AYP part number)

$

$

Not available

35

Poulan 532124181

Compression Spring (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

37

Poulan 532105531

Push Nut (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

38

Poulan 532105509

Fender Bracket (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

39

Poulan 532123549

Fuel Cap (AYP part number)
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

40

Poulan 532106020

Fuel Tank (AYP part number)

$

$

Not available

41

Poulan 532106082

Spacer Pad (AYP part number)

$

$

Not available

42

Poulan 532105511

Fender Strap (AYP part number)
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Poulan 532124977

Fender (AYP part number)

$

$

Not available

44

Poulan 532120822

Caution Decal (AYP part number)

$

$

Not available

45

Poulan 532105513

Pivot Seat Bracket (AYP part number)
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 532124913

Shift-Gate Cover (AYP part number)

$

$

Not available

48

Poulan 532124549

Shoulder Bolt (AYP part number)

$

$

Not available

49

Poulan 532003645

Bushing (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 532008710

Fuel Tank Stem (AYP part number)

$

$

Not available

51

Poulan 532123487

Hose Clamp (AYP part number)

$7.49

$

In Stock, only 4 left!

0

52

Poulan 532124703

Fuel Line (AYP part number)
(Superseded to 532008542)

$

$

Not available

53

Poulan 532007982

Drawbar (AYP part number)
(Superseded to 532175282)

$

$

Not available

54

Poulan 532110892

R.H. Frame Rail (AYP part number)
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

55

Poulan 532125037

R.H. Footrest (AYP part number)

$

$

Not available

56

Poulan 532124815

Shoulder Bolt (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 817490612

Rolling Thread Washer Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Poulan 874760612

Hex Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

59

Poulan 873680600

Lock Nut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

60

Poulan 532122354

Grill (AYP part number)

$

$

Not available

61

Poulan 532124586

Foam Strip

$

$

Not available

63

Poulan 532124227

Insert Grill

$103.99

$

Usually ships in 3-10 days

0

64

Poulan 532124443

Grill Screen

$

$

Not available

65

Poulan 532106086

Foam Strip (AYP part number)

$

$

Not available

66

Poulan 873680500

Crownlock Nut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

67

Poulan 532008019

Washer 7/32 x 5/8 x 16 Ga. (AYP part number)

$

$

Not available

68

Poulan 872140506

Carriage Bolt 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 817511208

Hex Screw (AYP part number)

$

$

Not available

70

Poulan 532122196

Grill Brace (AYP part number)

$

$

Not available

71

Poulan 817240408

Hex Screw 1/4-20 x 1/2 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

72

Poulan 532125711

L.H. Fender Decal (AYP part number)

$

$

Not available

83

Poulan 874760716

Hex Bolt (AYP part number)
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

84

Poulan 873680700

Lock Nut 7/16-14 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

85

Poulan 817490608

Rolling Thread Washer Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 532105529

Shoulder Bolt (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

89

Poulan 819090816

Washer (AYP part number)

$

$

Not available

91

Poulan 532105500

Lower Belt Retainer (AYP part number)

$

$

Not available

92

Poulan 819131312

Washer (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

95

Poulan 532004171

Insulated Clip (AYP part number)
(Superseded to 532124967)

$

$

Not available

97

Poulan 532120068

Knob (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

99

Poulan 532121144

Shoulder Bolt (AYP part number)
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

101

Poulan 874040612

Hex Bolt 3/8-16 x 1-1/2 (AYP part number)

$

$

Not available

102

Poulan 817990808

Pan Hd. Screw (AYP part number)

$

$

Not available

106

Poulan 819131614

Washer (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

107

Poulan 872170410

Carriage Bolt 1/4-20 x 1-1/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

108

Poulan 532121251

Foam Strip (AYP part number)

$

$

Not available

109

Poulan 532121250

Compression Spring (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

110

Poulan 532121249

Split Spacer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

111

Poulan 532121246

Switch Bracket (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

112

Poulan 532121248

Snap Bushing (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

113

Poulan 532123976

Flange Lock Nut (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

115

Poulan 873680400

Crownlock Nut (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0
