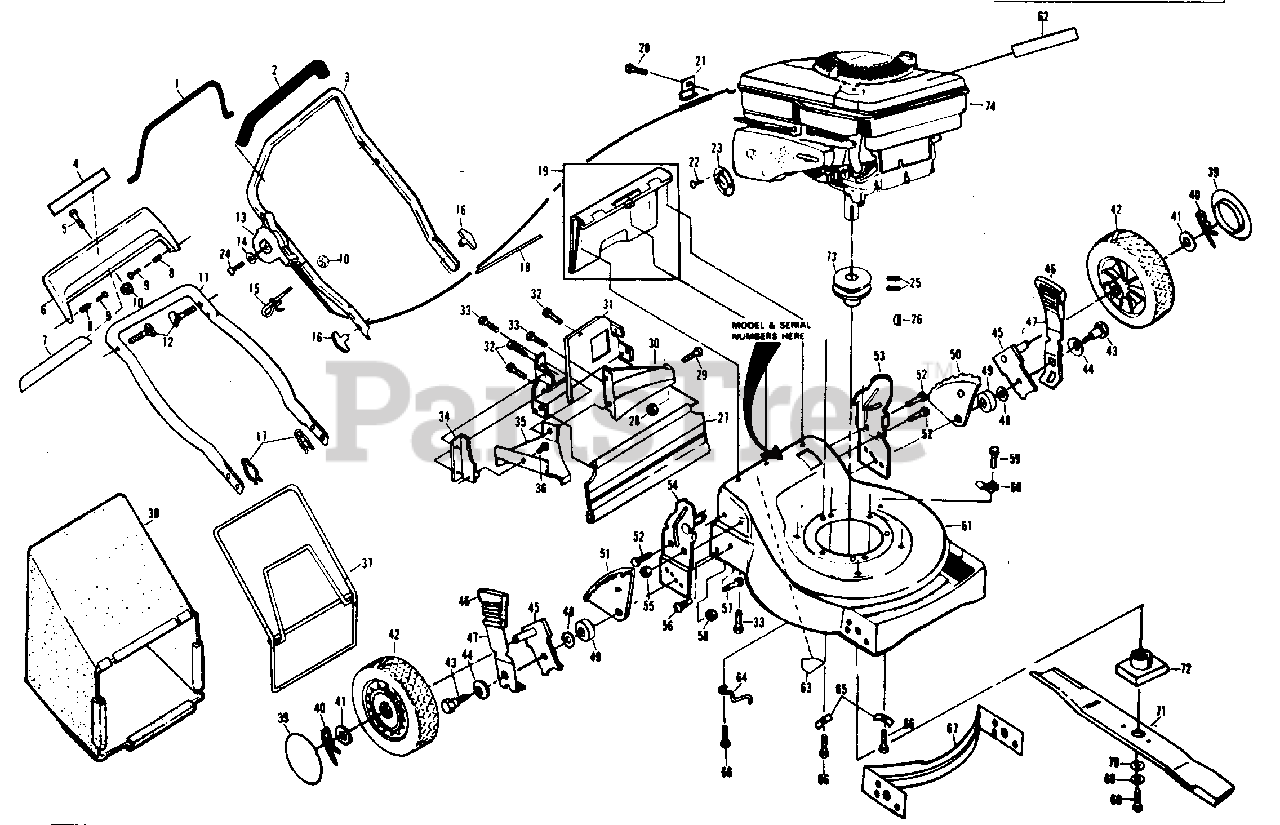

XE 850 PEAR - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124707 Parts Diagram

Walk-Behind Mower

MOWER HOUSING, ENGINE B/S 124707 Parts Diagram

  • Title

1

Poulan 532800733

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

3

Poulan 532851029

Upper Handle

$

$

Not available

4

Poulan 532800787

Trim Plate Decal 5.0 HP

$

$

Not available

5

Poulan 532085436

Hex Washer Head Screw (AYP part number)
(Superseded to 874760424)

$

$

Not available

6

Poulan 532800542

Trim Plate

$

$

Not available

7

Poulan 532800669

Trim Plate Decal (AYP part number)

$

$

Not available

8

Poulan 532085529

Nylon Bushing (AYP part number)

$

$

Not available

9

Poulan 532085825

Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

10

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532800481

Lower Handle (AYP part number)
(Superseded to 532125214)

$

$

Not available

12

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

13

Poulan 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

14

Poulan 532085723

Flat Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

15

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 5

0

16

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

17

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 532750328

Hinge Rod (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

19

Poulan 532048137

Rear Door Kit (AYP part number)

$

$

Not available

20

Poulan 532107488

Thread Rolling Screw (AYP part number)

$

$

Not available

21

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 532093705

Screw (AYP part number)
(Superseded to 532069485)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

23

Poulan 532223389

Muffler Deflector

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

24

Poulan 532851185

Round Head Screw
(Superseded to 532128889)

$

$

Not available

25

Poulan 532059708

Set Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532087677

Hi-Pro Key #HP 505 (AYP part number)

$

$

Not available

27

Poulan 532751083

Rear Skirt (AYP part number)
(Superseded to 532140540)

$13.99

$

Usually ships in 3-10 days

0

28

Poulan 532069180

Locknut (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532041945

Truss Head Screw (AYP part number)
(Superseded to 874191008)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 532087597

Rear Baffle (AYP part number)
(Superseded to 532140661)

$

$

Not available

31

Poulan 532801015

Back Plate

$

$

Not available

32

Poulan 532081283

Self Tapping Screw (AYP part number)
(Superseded to 81283)

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 532054583

Hex Tapping Screw (AYP part number)

$

$

Not available

34

Poulan 532750433

Side Baffle (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 532801012

Discharge Baffle

$18.99

$

Usually ships in 3-10 days

0

36

Poulan 532086344

Hex Head Screw (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 532088614

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

38

Poulan 532800563

Grass Bag Assembly

$

$

Not available

39

Poulan 532800544

Hubcap (AYP part number)

$

$

Not available

40

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 532052160

Flat Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532851071

Wheel & Tire Assembly (AYP part number)

$45.99

$

In Stock, only 1 left!

0

43

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

44

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 532087887

Axle Arm Assembly (AYP part number)
(Superseded to 532087886)

$

$

Not available

46

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

47

Poulan 532850863

Selector Spring (AYP part number)
(Superseded to 532125066)

$6.49

$

In Stock, only 1 left!

0

48

Poulan 532088348

Flat Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

49

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

50

Poulan 532800663

Wheel Adjusting Bracket (Left)

$

$

Not available

51

Poulan 532800667

Wheel Adjusting Bracket (Right)

$

$

Not available

52

Poulan 532055187

Thread Cutting Screw (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

53

Poulan 532800489

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

54

Poulan 532800488

Handle Bracket Assembly (Right)

$

$

Not available

55

Poulan 532063124

Locknut (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

56

Poulan 532088652

Hinge Screw (AYP part number)

$7.49

$

In Stock, only 2 left!

0

57

Poulan 532066238

Carriage Bolt (AYP part number)
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

58

Poulan 532074400

Locknut (AYP part number)
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

59

Poulan 532750097

Hex Washer Head Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

60

Poulan 532087930

Housing Cable Guide (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

61

Poulan 532801014

Lawn Mower Housing

Note: (Incl. Ref. #63)

$

$

Not available

62

Poulan 532800644

"Poulan" Decal (AYP part number)

$

$

Not available

63

Poulan 532085463

Danger Decal (AYP part number)

$

$

Not available

64

Poulan 532851000

Belt Snubber (AYP part number)

$

$

Not available

65

Poulan 532851219

Engine Washer (AYP part number)
(Superseded to 851201X004)

$

$

Not available

66

Poulan 532850998

Hex Head Thread Rolling Screw (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

67

Poulan 532087588

Front Baffle (AYP part number)
(Superseded to 532085283)

$

$

Not available

68

Poulan 532851084

Hex Head Screw Grd. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

69

Poulan 532850263

Helical Lockwasher (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

70

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

71

Poulan 532850973

Blade 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

72

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

73

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

74

Poulan 532800709

Engine - Briggs/Stratton Model No. 124707 Type No. 3120-01, Owners Manual (AYP part number)

Note: Not Shown.

$

$

Not available
