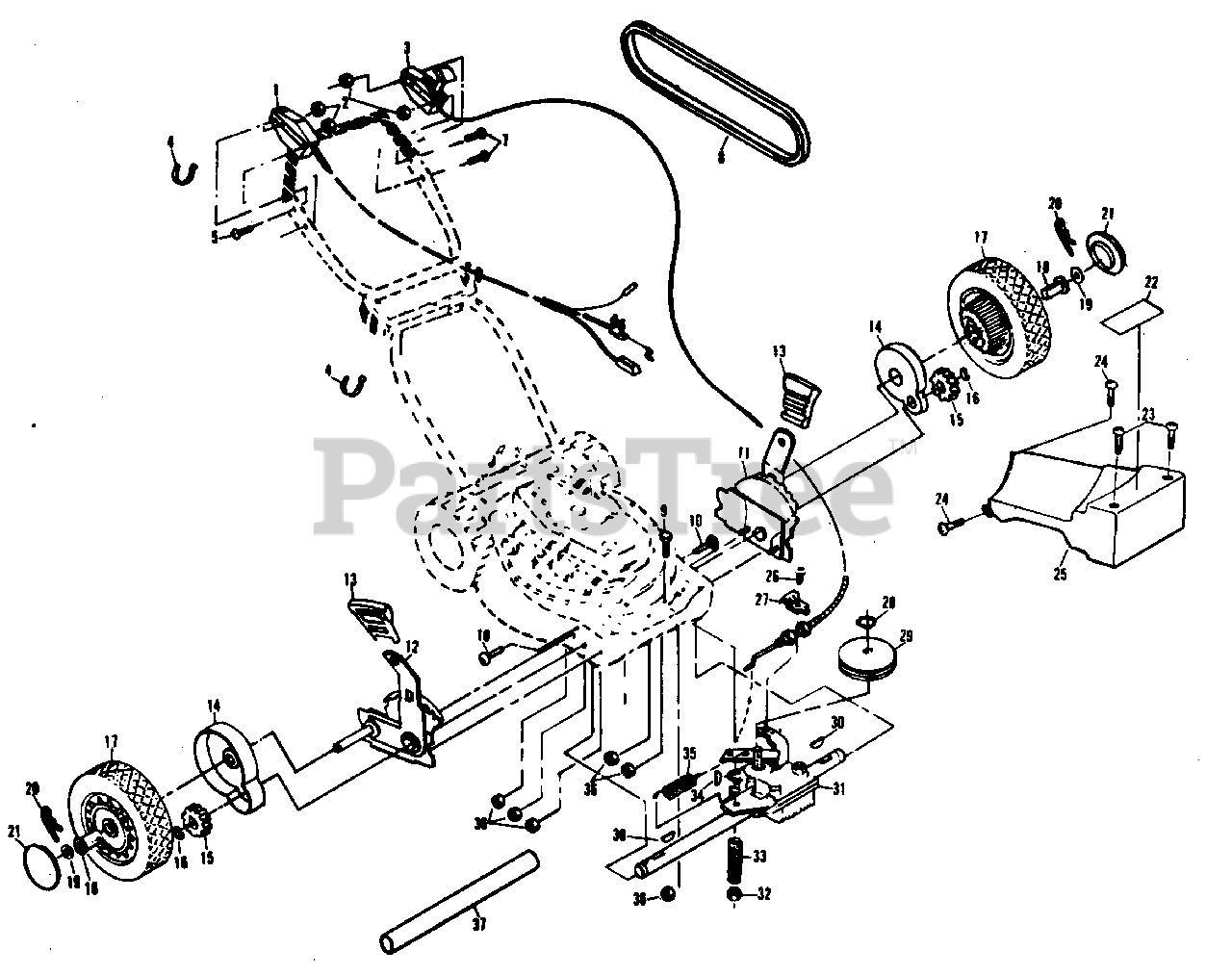

XE 850 PEAR - Poulan Pro Walk-Behind Mower DRIVE ASSEMBLY Parts Diagram

Walk-Behind Mower

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532851098

Engine Control Cable (AYP part number)

$

$

Not available

2

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 532851097

Drive Control Cable (Complete) (AYP part number)
(Superseded to 532133053)

$113.99

$

Usually ships in 3-10 days

0

4

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

5

Poulan 532085692

Machine Screw (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532085692

Machine Screw (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 532083691

V-Belt

$

$

Not available

9

Poulan 532054338

Hex Head Bolt (AYP part number)

$

$

Not available

10

Poulan 532061528

Flat Head Machine Screw (AYP part number)
(Superseded to 874100412)

$

$

Not available

11

Poulan 532800691

Wheel Adjuster Assembly (Left)

$

$

Not available

12

Poulan 532800689

Wheel Adjuster Assembly (Right)

$

$

Not available

13

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

14

Poulan 532076401

Dust Cover (AYP part number)

$

$

Not available

15

Poulan 532074507

Pinion (AYP part number)

$

$

Not available

16

Poulan 532053753

E-Ring (AYP part number)
(Superseded to 812000003)

$

$

Not available

17

Poulan 532850986

Wheel & Tire Assembly (AYP part number)
(Superseded to 583602401)

$

$

Not available

18

Poulan 532086960

Wheel Bushing (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532052160

Flat Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532800543

Hubcap

$

$

Not available

22

Poulan 532800681

Drive Cover Decal (AYP part number)

$

$

Not available

23

Poulan 532087866

Pan Head Tapping Screw (AYP part number)

$

$

Not available

24

Poulan 532750097

Hex Washer Head Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

25

Poulan 532750293

Drive Cover (AYP part number)
(Superseded to 582952501)

$14.99

$

Usually ships in 3-10 days

0

26

Poulan 532750108

Hex Washer Head Tapping Screw (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532083700

Cable Clamp (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

28

Poulan 532074976

Retaining Ring (AYP part number)

$

$

Not available

29

Poulan 532083681

Drive Pulley (AYP part number)
(Superseded to 532154753)

$

$

Not available

30

Poulan 532065692

Woodruff Key #3 (AYP part number)

$

$

Not available

31

Poulan 532048184

Gear Case Assembly Kit (AYP part number)
(Superseded to 532048281)

$

$

Not available

32

Poulan 532068038

Locknut (AYP part number)
(Superseded to 73850400)

$

$

Not available

33

Poulan 532083632

Spring (AYP part number)
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

34

Poulan 532057076

Woodruff Key #213 (AYP part number)

$

$

Not available

35

Poulan 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 532086012

Drive Shaft Cover (AYP part number)

$

$

Not available
