XE 840PAR - Poulan Pro Lawn Tractor MOWER HOUSING, ENGINE B/S 110782 Parts Diagram

Lawn Tractor

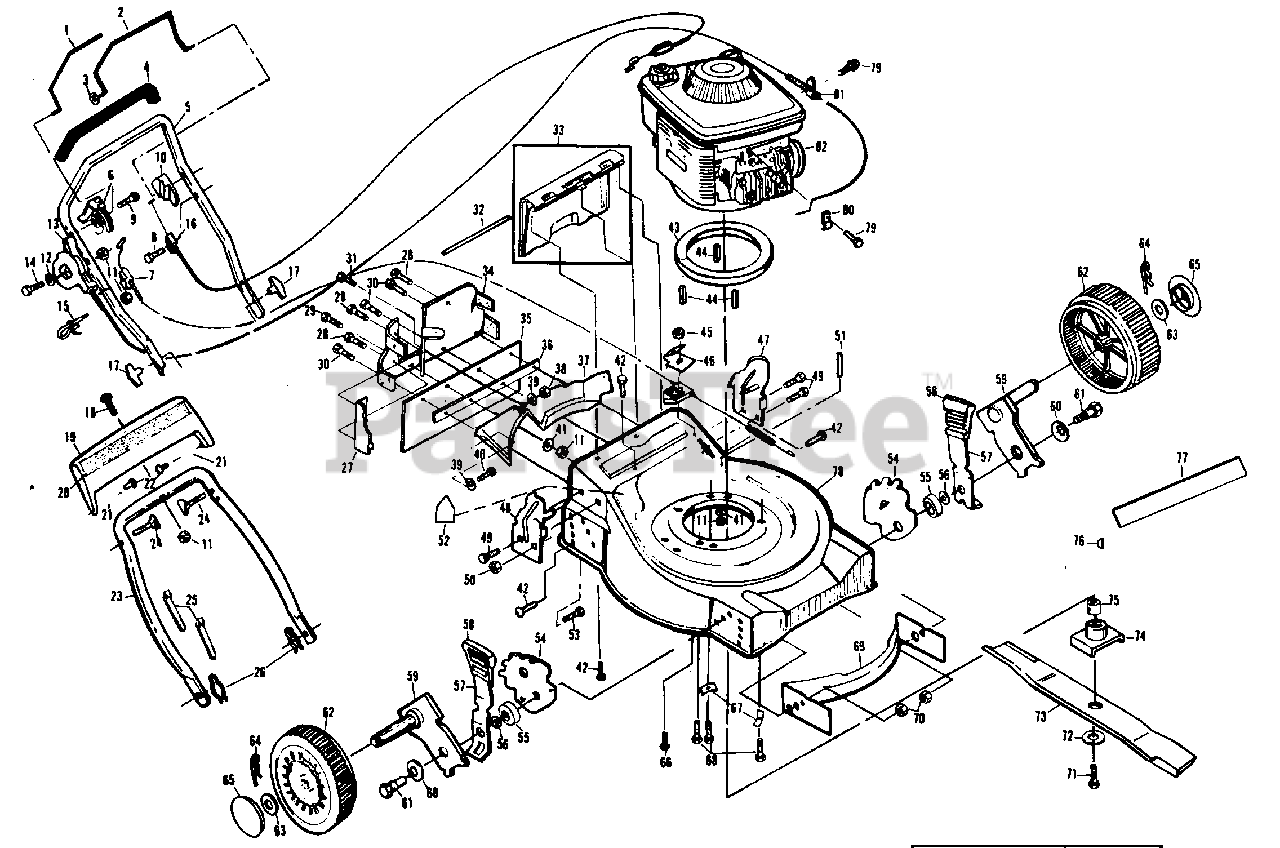

MOWER HOUSING, ENGINE B/S 110782 Parts Diagram

  • Title

1

Poulan 532800637

Drive Bar

$

$

Not available

2

Poulan 532800636

Engine Control Bar (AYP part number)

$

$

Not available

3

Poulan 532050806

Flat Washer (AYP part number)
(Superseded to 19101216)

$

$

Not available

4

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

5

Poulan 532800326

Upper Handle

$

$

Not available

6

Poulan 532850042

Drive Control Actuator (AYP part number)

$

$

Not available

7

Poulan 532751274

Drive Cable Assembly
(Superseded to 532133056)

$17.99

$

Usually ships in 3-10 days

0

8

Poulan 532085768

Hex Thread Rolling Screw (AYP part number)

$

$

Not available

9

Poulan 532036953

Self Tapping Screw (AYP part number)

$

$

Not available

10

Poulan 532850041

Zone Control Actuator (AYP part number)

$

$

Not available

11

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 532085723

Flat Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 532851463

Throttle Control (AYP part number)

$

$

Not available

14

Poulan 532085692

Machine Screw (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 5

0

16

Poulan 532800613

Engine Control Cable Assembly (AYP part number)
(Superseded to 532128634)

$

$

Not available

17

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

18

Poulan 532085436

Hex Washer Head Machine (AYP part number)
(Superseded to 874760424)

$

$

Not available

19

Poulan 532800542

Trim Plate

$

$

Not available

20

Poulan 532800786

Trim Plate Decal 4.0 HP (AYP part number)

$

$

Not available

21

Poulan 532085529

Nylon Bushing (AYP part number)

$

$

Not available

22

Poulan 532085825

Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

23

Poulan 532800481

Lower Handle (AYP part number)
(Superseded to 532125214)

$

$

Not available

24

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

25

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

26

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 532850712

Side Baffle (AYP part number)

$

$

Not available

28

Poulan 532081283

Self Tapping Screw (AYP part number)
(Superseded to 81283)

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 532086779

Hex Head Screw (AYP part number)

$

$

Not available

30

Poulan 532054583

Hex Tapping Screw (AYP part number)

$

$

Not available

31

Poulan 532076399

Hex Washer Head Machine Screw (AYP part number)

$

$

Not available

32

Poulan 532750328

Hinge Rod (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

33

Poulan 532048137

Rear Door Kit (AYP part number)

$

$

Not available

34

Poulan 532800781

Back Plate

$

$

Not available

35

Poulan 532088366

Rear Skirt (AYP part number)
(Superseded to 532130444)

$

$

Not available

36

Poulan 532088368

Backing Strip (AYP part number)
(Superseded to 532088367)

$

$

Not available

37

Poulan 532850061

Rear Baffle

$

$

Not available

38

Poulan 532074189

Locknut (AYP part number)

$

$

Not available

39

Poulan 532010102

Flat Washer (AYP part number)

$

$

Not available

40

Poulan 532081276

Hex Washer Head Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

41

Poulan 532002084

Washer (AYP part number)

$

$

Not available

42

Poulan 532054583

Hex Tapping Screw (AYP part number)

$

$

Not available

43

Poulan 532850988

Engine Spacer (AYP part number)
(Superseded to 850988)

$

$

Not available

44

Poulan 532850987

Engine Bushing (AYP part number)
(Superseded to 850988)

$

$

Not available

45

Poulan 532054509

Keps Nut (AYP part number)
(Superseded to 873731000)

$2.99

$

Usually ships in 3-10 days

0

46

Poulan 532750346

Bracket Cover (AYP part number)

$

$

Not available

47

Poulan 532800594

Handle Bracket Assembly (Left)

$

$

Not available

48

Poulan 532800593

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

49

Poulan 532055187

Thread Cutting Screw (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

50

Poulan 532063124

Locknut (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

51

Poulan 532053830

Carriage Bolt (AYP part number)
(Superseded to 872240404)

$

$

Not available

52

Poulan 532095463

Danger Decal (AYP part number)

$

$

Not available

53

Poulan 532066238

Carriage Bolt (AYP part number)
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

54

Poulan 532850904

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

56

Poulan 532088348

Flat Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

57

Poulan 532850856

Selector Spring (AYP part number)
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

58

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

59

Poulan 532095022

Axle Arm Assembly (AYP part number)

$

$

Not available

60

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

61

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

62

Poulan 532850957

Wheel & Tire Assembly (AYP part number)
(Superseded to 532146248)

$

$

Not available

63

Poulan 532052160

Flat Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

64

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

65

Poulan 532800544

Hubcap (AYP part number)

$

$

Not available

66

Poulan 532057155

Machine Screw (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

67

Poulan 532851219

Engine Washer (AYP part number)
(Superseded to 851201X004)

$

$

Not available

68

Poulan 532850999

Hex Head Thread Rolling Screw (AYP part number)

$7.49

$

In Stock, only 2 left!

0

69

Poulan 532085283

Front Baffle (AYP part number)
(Superseded to 532125345)

$

$

Not available

70

Poulan 532074400

Locknut (AYP part number)
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 532085727

Hex Head Machine Screw Grd. 8 (AYP part number)

$

$

Not available

72

Poulan 532850263

Helical Lockwasher (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

73

Poulan 532103524

Blade 22" (AYP part number)

$

$

Not available

74

Poulan 532107252

Blade Adpater (AYP part number)
(Superseded to 532107251)

$

$

Not available

75

Poulan 532103113

Spacer (AYP part number)

$

$

Not available

76

Poulan 532097677

Hi-Pro Key #HP 505 (AYP part number)

$

$

Not available

77

Poulan 532800791

Housing Front Decal (AYP part number)

$

$

Not available

78

Poulan 532801013

Lawn Mower Housing (AYP part number)

Note: (Incl. Ref. #52)

$

$

Not available

79

Poulan 532107488

Thread Rolling Screw (AYP part number)

$

$

Not available

80

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

81

Poulan 532850472

Cable Clip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

82

Poulan 532800713

Engine - Briggs/Stratton Model No. 110782 Type No. 3166-01, Owners Manual (AYP part number)

Note: Not Shown.

$

$

Not available
