XE 750 PAR - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124702 Parts Diagram

Walk-Behind Mower

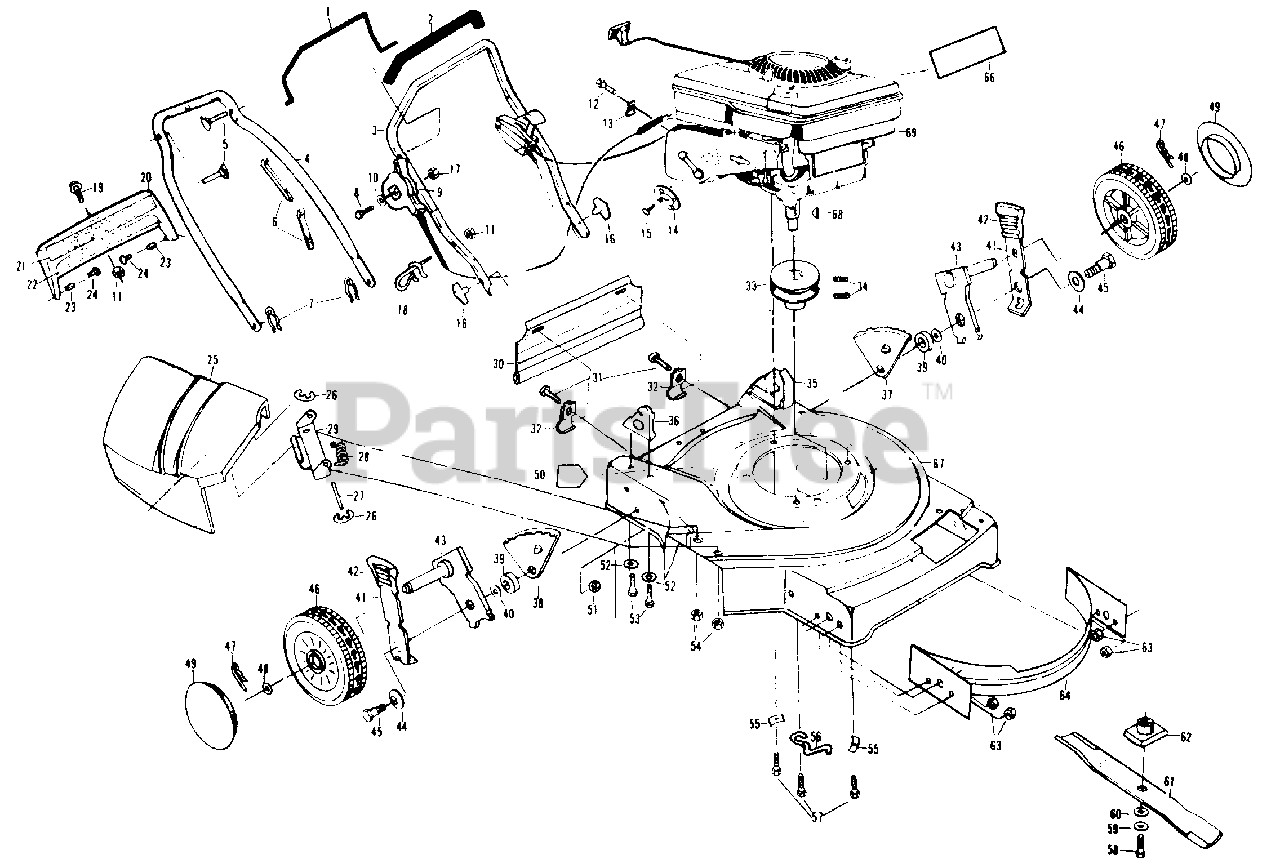

MOWER HOUSING, ENGINE B/S 124702 Parts Diagram

  • Title

1

Poulan 532800680

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

3

Poulan 532851029

Upper Handle

$

$

Not available

4

Poulan 532800481

Lower Handle (AYP part number)
(Superseded to 532125214)

$

$

Not available

5

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

6

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 532800785

Machine Screw (AYP part number)

$

$

Not available

9

Poulan 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

10

Poulan 532085723

Flat Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 532107488

Thread Rolling Screw (AYP part number)

$

$

Not available

16

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

17

Poulan 532068038

Locknut (AYP part number)
(Superseded to 73850400)

$

$

Not available

18

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 5

0

19

Poulan 532085436

Hex Washer Head Machine Screw (AYP part number)
(Superseded to 874760424)

$

$

Not available

20

Poulan 532800542

Trim Plate

$

$

Not available

21

Poulan 532800787

Trim Plate Decal 5.0 HP

$

$

Not available

22

Poulan 532800669

Trim Plate Decal (AYP part number)

$

$

Not available

23

Poulan 532085529

Nylon Bushing (AYP part number)

$

$

Not available

24

Poulan 532085825

Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

25

Poulan 532750149

Discharge Guard (AYP part number)

$

$

Not available

26

Poulan 532033750

E-Ring (AYP part number)
(Superseded to 812000014)

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 532087590

Hinge Rod (AYP part number)

$

$

Not available

28

Poulan 532087589

Torsion Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532087593

Housing Bracket (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

30

Poulan 532751084

Rear Skirt (AYP part number)
(Superseded to 532140540)

$13.99

$

Usually ships in 3-10 days

0

31

Poulan 532081276

Hex Washer Head Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

32

Poulan 532087585

Skirt Bracket (AYP part number)
(Superseded to 532087584)

$

$

Not available

33

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

34

Poulan 532059708

Set Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 532800702

Handle Bracket Assembly (Left)

$

$

Not available

36

Poulan 532800701

Handle Bracket Assembly (Right)

$

$

Not available

37

Poulan 532800663

Wheel Adjusting Bracket (Left)

$

$

Not available

38

Poulan 532800667

Wheel Adjusting Bracket (Right)

$

$

Not available

39

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

40

Poulan 532088348

Flat Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

41

Poulan 532850863

Selector Spring (AYP part number)
(Superseded to 532125066)

$6.49

$

In Stock, only 1 left!

0

42

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

43

Poulan 532087887

Axle Arm Assembly (AYP part number)
(Superseded to 532087886)

$

$

Not available

44

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

46

Poulan 532111433

Wheel and Tire Assembly (AYP part number)

$

$

Not available

47

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

48

Poulan 532052160

Flat Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

49

Poulan 532800543

Hubcap

$

$

Not available

50

Poulan 532085463

Danger Decal (AYP part number)

$

$

Not available

51

Poulan 532074400

Locknut (AYP part number)
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 532059289

Flat Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

53

Poulan 532055187

Thread Cutting Screw (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

54

Poulan 532053490

Locknut (AYP part number)
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

55

Poulan 532851219

Engine Washer (AYP part number)
(Superseded to 851201X004)

$

$

Not available

56

Poulan 532851000

Belt Snubber (AYP part number)

$

$

Not available

57

Poulan 532850998

Hex Head Thread Rolling Screw (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

58

Poulan 532851084

Hex Head Screw
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

59

Poulan 532850263

Helical Lockwasher (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

60

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

61

Poulan 532850973

22" Blade
(Superseded to 532406713)

$26.99

$

In Stock, Qty 10

0

62

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

63

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 532087588

Front Baffle (AYP part number)
(Superseded to 532085283)

$

$

Not available

65

Poulan 532088405

Rear Baffle (Not Shown) (AYP part number)
(Superseded to 134027X479)

$

$

Not available

66

Poulan 532800644

"Poulan" Decal (AYP part number)

$

$

Not available

67

Poulan 532800970

Lawn Mower Housing (Inc. Ref. #50)

$

$

Not available

68

Poulan 532087677

Hi-Pro Key #HP-505 (AYP part number)

$

$

Not available

69

Poulan 532800684

Engine-Briggs/Stratton Model No. 124702 Type No. 3118-01, Owners Manual (AYP part number)

Note: Not Shown.

$

$

Not available
